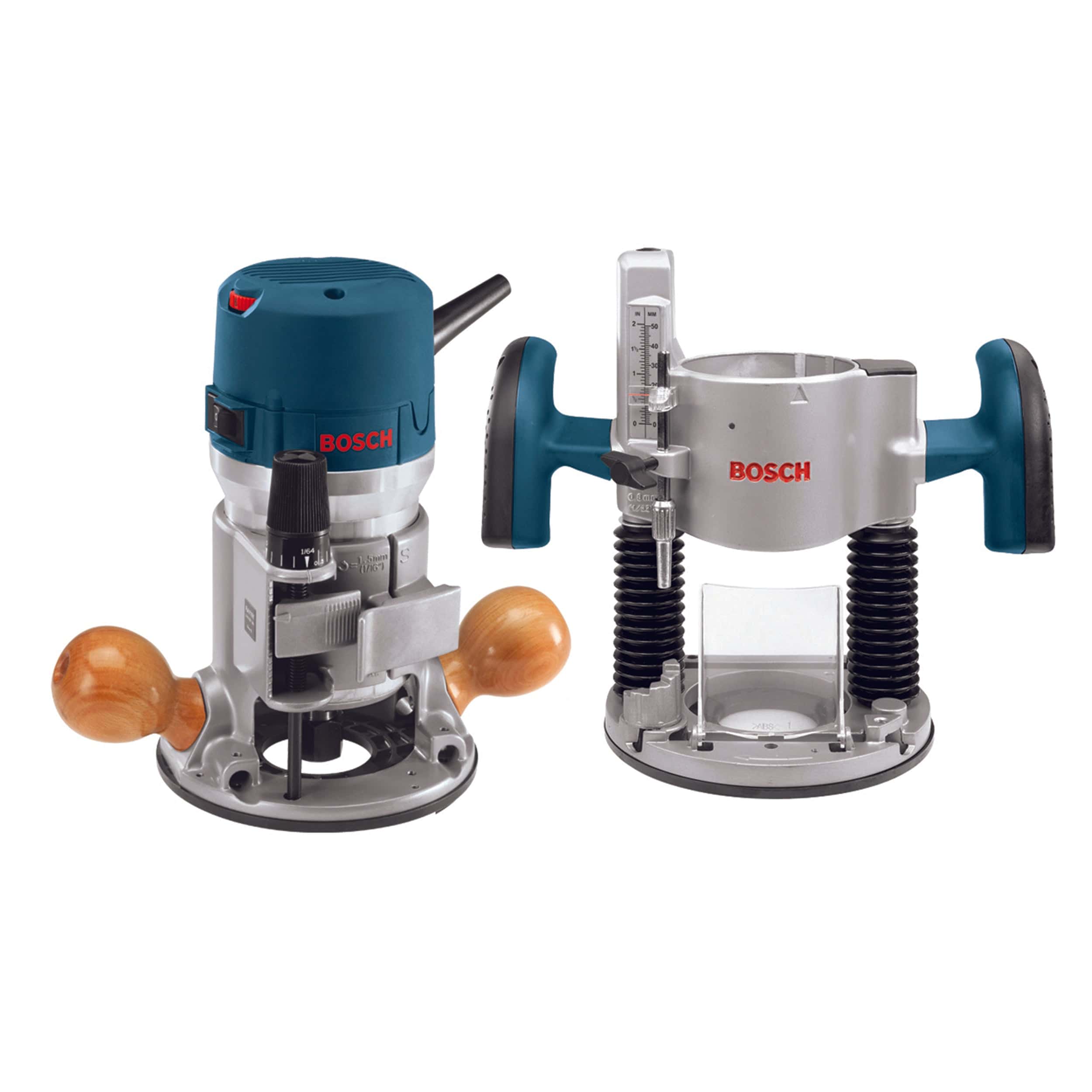

2-1/4 HP EVS Fixed and Plunge Base Router Combo Kit

Get the best of both worlds with the Bosch® 1617EVSPK 2-1/4 HP Variable Speed Router Kit. Bosch includes a plunge base and fixed base with the powerful 2-1/4 HP motor with soft start and advanced speed-control technology. Classic hardwood handles accentuate the fixed base design. This base is perfect for upright use or use in a router table. The adjustment system offers coarse and micro-fine adjustment with resettable depth indicator. The motor housing does not rotate during depth adjustment, which eliminates horizontal movement of bit.
The Plunge Base is designed with a quick clamp system that allows removal of motor from base with ease. The fine adjustment on the depth rod gives you the ability to quickly set bit depth settings. To ensure maximum control, Bosch engineered the contoured soft grip handles to provide perfect access to the plunge release lever. Both Bases feature Bosch’s exclusive precision centering design, which centers the bit precisely and makes it easy to keep the bit on the intended cutline when using jigs, templates or dovetail jigs.

Features:

• Powerful 2-1/4 HP motor with soft start
• Adjustment system offers coarse and micro-fine adjustment with resettable depth indicator
• Versatile fixed base can be used above or under the router table
• Wide openings in bases and sub-bases allow use of larger bits and provide better visibility
• Plunge base has contoured soft grip handles for enhanced control and comfort at all plunge depths
• Precision centering design centers the bit precisely and makes it easy to keep the bit on the intended cutline when using jigs, templates or dovetail jigs
• Variable speed dial for matching speed to workpiece and task
• Constant Response Circuitry maintains constant speed under load and provides overload protection
• Right or left switch and cord location
• Double insulated

Specifications

• Motor: 2-1/4 HP, 120V, 12A
• Speeds: Variable Speed Ranges from 8,000 – 25,000 RPM
• Speed Control: Dial
• Base Diameters: 6" Fixed & 6-11/16" Plunge
• Base Openings: 3-3/4" Fixed and Plunge
• Subbase Openings: 2" Fixed and Plunge
• Weight: 19.5 lb
• Model Number: Bosch 1617EVSPK

What's Included:

• (1) Bosch 2-1/4 HP VS Router Motor
• (1) Plunge Base w/ Chip Shield
• (1) Fixed Base w/ Chip Shield
• (1) 1/4" Self-Releasing Collet Chuck
• (1) 1/2" Self-Releasing Collet Chuck
• (1) Shaft and Collet Wrench
• (1) T-Handle Height Adjustment Knob
• (1) Hardware for Router Table Applications
• (1) Carrying Case
