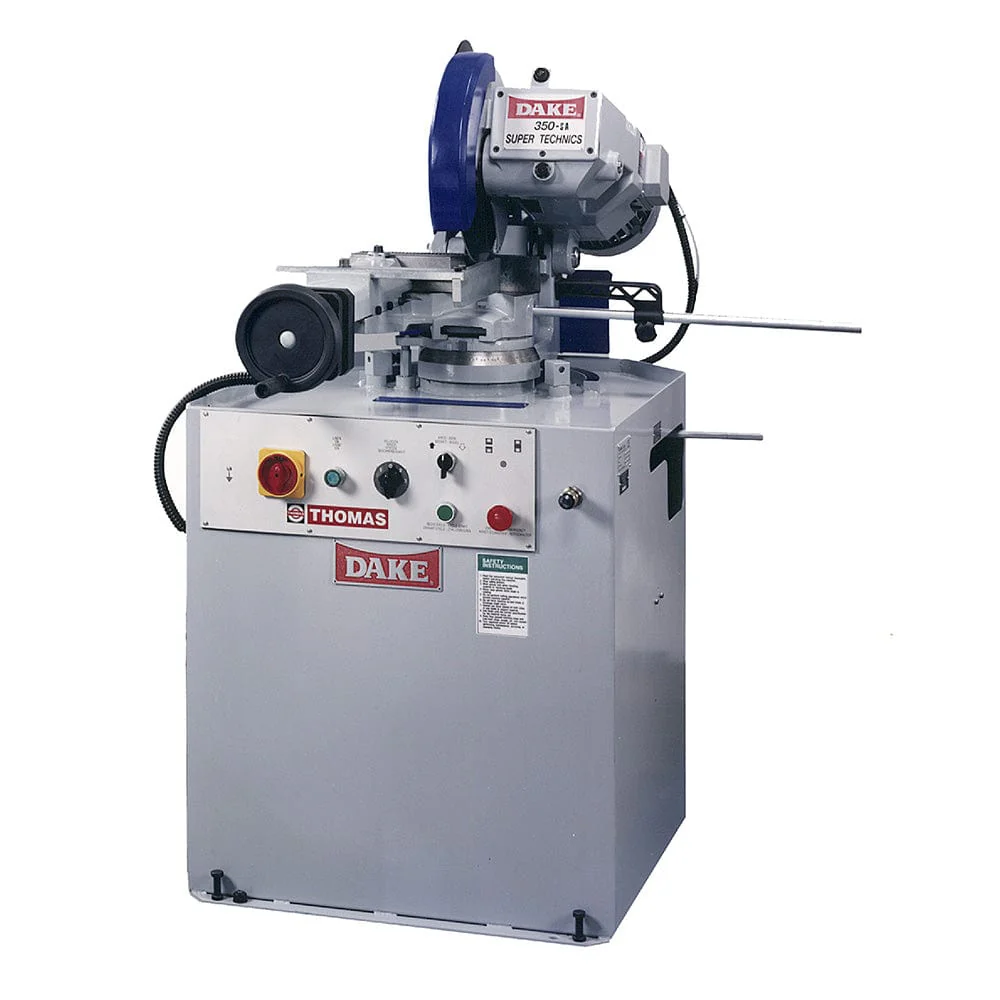

14" Semi-Automatic Cold Saw Variable Speed- 220V 3 Ph
Features:
- Push button or foot-switch activation to avoid operator fatigue
- Shroud enclosed head feed cylinder with sliding cams for fast cutting stroke adjustment
- Additional ball bearing support of hardened and ground spindle shaft to prevent failure
- Adjustable pneumatic vise with sliding gib to true up clamping under blade with 1/4 stroke
- Oversized pedestal base to reduce vibration
- Head rotates 45º right and 60º left of center for easy miter cutting
- Removable hardened, serrated vise jaw faces
- Ability to add a programmable feed system to make fully automatic with wide range of capabilities
- Voltage: 220V
- Horsepower: 3.5 max
- Cutting Ability: Ferrous/Non-Ferrous/Plastic
- Maximum Blade Diameter: 14”
- Maximum Vise Opening: 6-5/8"
- Maximum Feed Vise Opening: n/a
- Maximum Angle: 60° left/ 45° right
- Slotting: No
- Phase: 3
- Speeds: 20-105 rpm
- Weight: 890 lbs
- Solid Round 90˚ Capacity: 3-3/8”
- Solid Round 45˚ Capacity: 3”
- Tube 90˚ Capacity: 4-3/4"
- Tube 45˚ Capacity: 4”
- Square 90˚ Capacity: 4-1/8”
- Square 45˚ Capacity: 3-3/8”
- Rectangle 90˚ Capacity: 6-1/4” x 3-1/2”
- Rectangle 45˚ Capacity: 3-3/8” x 2-3/4”
- Work Height: 36-3/4”
- Height: 60”
- Width: 33”
- Depth: 50”
- 440V model requires step-down transformer for operation (part number: 300674) Sold Separately
- Blade
- Coolant
- Tools kit for changing blades
- Instruction and service manual
- Adjustable positive stop
Shipping / Billing Information
This product ships direct from the manufacturer:
- Your order will ship in approximately 7-21 business days.
- This product is considered special order. Your account will be charged when you place your order.
- Express or overnight shipping is not available for this product.
- Ships by Ground to the 48 contiguous states. Cannot ship to Alaska, Hawaii, PO Boxes, APOs, US Territories, Canada or other foreign countries.
- Liftgate and Residential Delivery is covered with the excess weight fee, and the freight company will call the day before delivery to set up a time at no charge to you.
Return Information
Warranty Information
New woodworking machines sold by Laguna Tools carry a two-year warranty effective from the date of shipping. Laguna bandsaw blades' welds are backed by their 1-yr manufacturer's warranty. Machines sold through dealers must be registered with Laguna Tools within 30 days of purchase to be covered by this warranty. Laguna Tools guarantees all new machine sold to be free of manufacturers’ defective workmanship, parts and materials. Laguna Tools will repair or replace, without charge, any parts determined by Laguna Tools, Inc. to be a manufacturer’s defect. They require that the defective item/part be returned to Laguna Tools with the complaint. In the event the item/part is determined to be damaged due to lack of maintenance, cleaning or misuse/abuse, the customer will be responsible for the cost to replace the item/part, plus all related shipping charges.
For warranty repair information, call 1-800-332-4094.
