20" Woodworking Bandsaw - 5 HP 1 PH 230V - JWBS-20-5
Get the superior performance your projects demand with the Jet® JWBS-20-5 20” woodworking bandsaw. With more re-saw capacity, greater throat depth and the horsepower you need, you’ll be able to tackle bigger boards, create smoother edges and master the intricate cuts. The heavy-duty cast-iron fence system is built to give you the sturdiness and support you need for every project and features a micro-adjust dial for exact placement. The table is slotted and the guide post has a stress-free magnetic door on the front for efficient blade changes. Large, independently adjustable guides are tool-less to save you time on set up.
Bandsaw Specs: What They Mean & Why They Matter:
- Horsepower (HP) – Determines cutting power, especially important for hardwoods and demanding resawing.
- Resaw Height – The maximum board thickness the saw can slice vertically.
- Maximum Cutting Width – The maximum width of material that fits between the blade and the frame.
- Blade Width Range – Indicates what blades the saw can accept, affecting both curve cutting ability and resaw performance.
- Table Size – Affects how well the saw supports and stabilizes your workpiece.
-
Construction Material – Heavier material better absorbs vibration and adds stability.
Features:
- 16" resaw capacity for cutting large pieces of wood, slicing veneers and cutting book matched panels
- 27-1/4" x 20" precision ground cast iron table for added stability and work support
- Fence system features a micro-adjustable, dual-position side plate
- Tool-less, independently adjustable, upper and lower ball bearing guides
- Rigid, four-sided guide post with rack and pinion adjustment for optimum blade support
- Easy-to-read blade tension scale can be viewed through upper door window
- Single knob adjustment simplifies the blade tracking process
- Blade tracking window provides clear view of blade during tracking

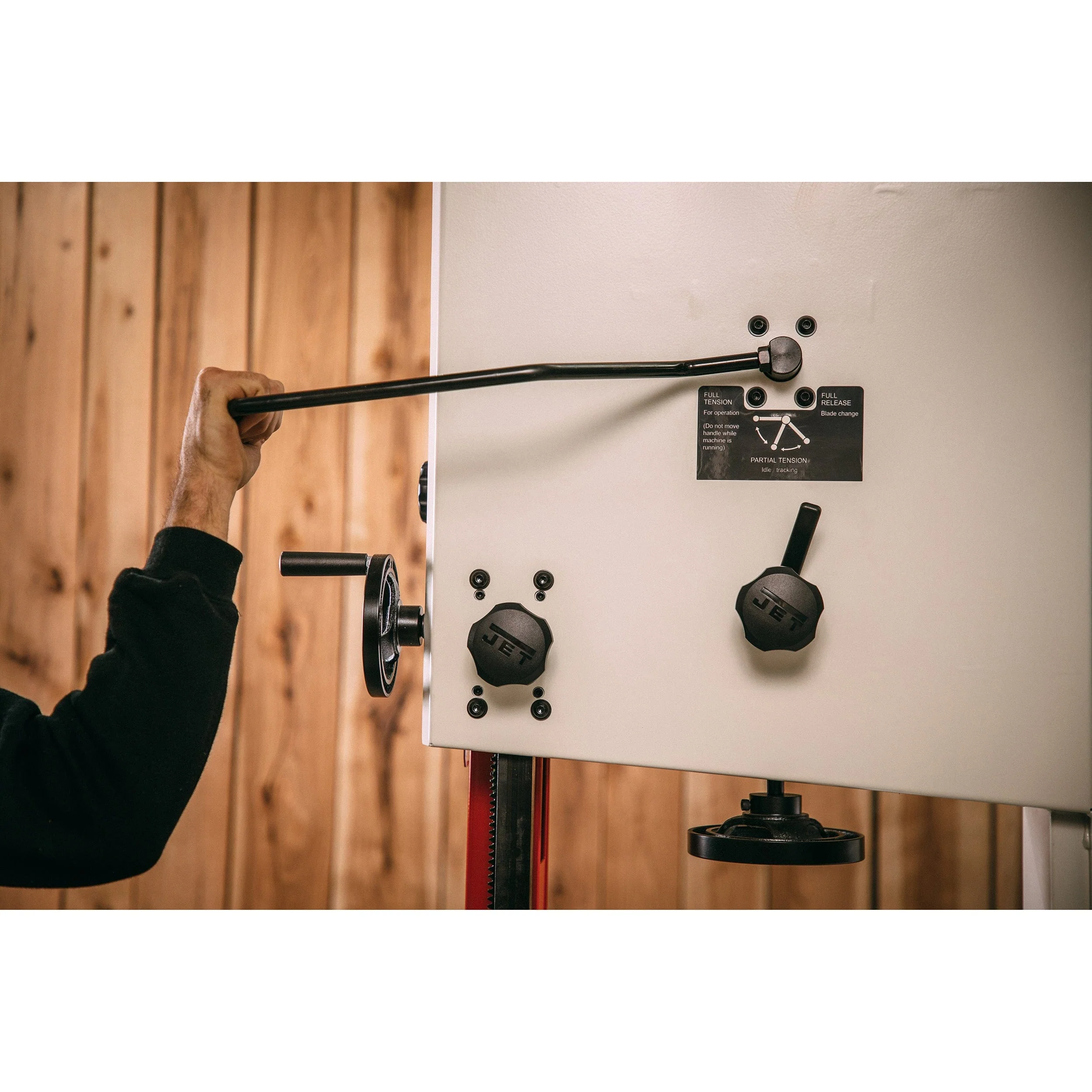

- Heavy duty tensioning with quick release features three settings: full tension, partial tension and full release

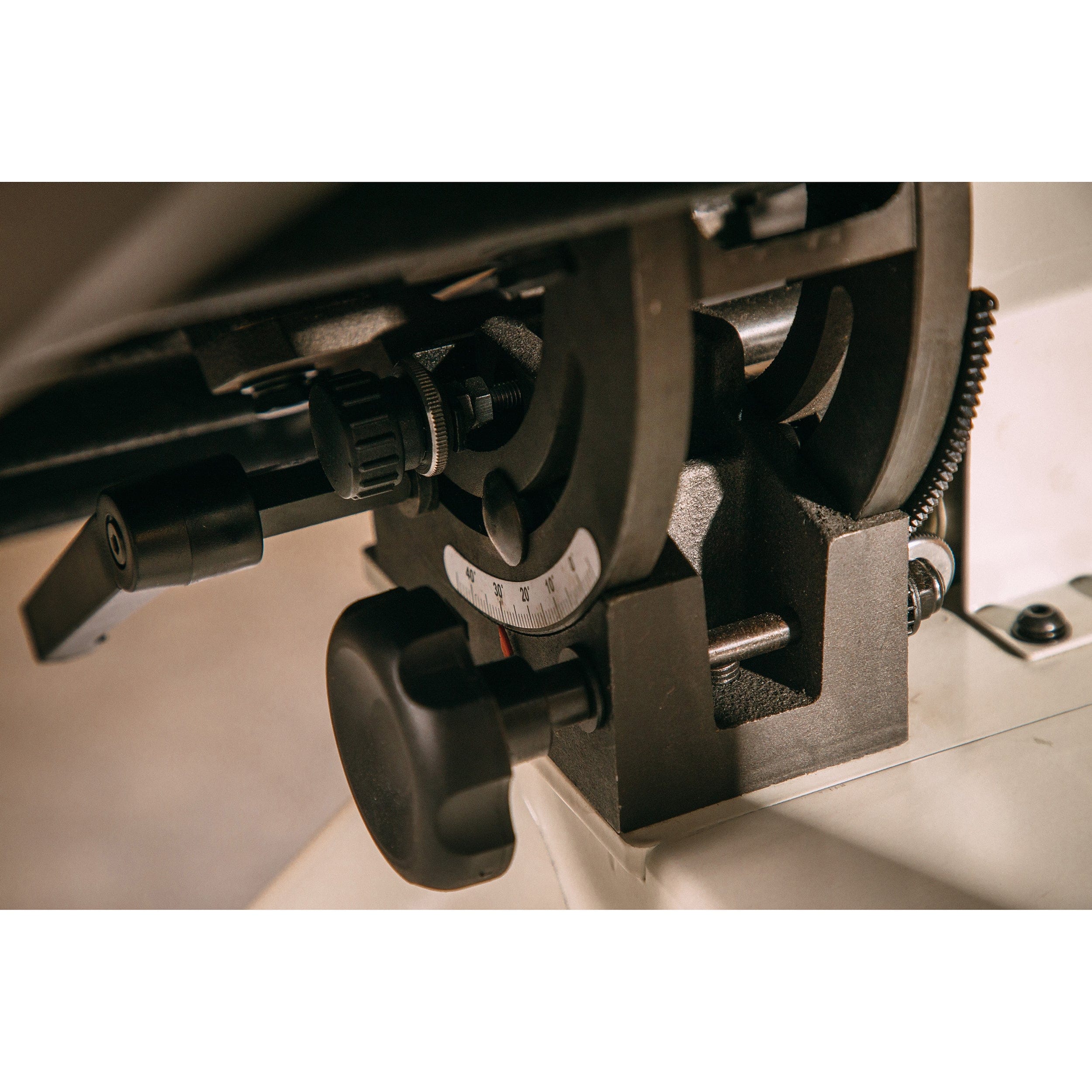

- Cast iron trunnion for maximum support and stability
- Slotted table allows for front blade removal
- Cast iron handwheels and ergonomically designed knobs make adjustments smooth and easy
- Round table insert features leveling screws for precise adjustment
- Conveniently located dual 4 dust collection ports catch dust and chips at the source
- Table tilts 5° left and 45° right to accommodate a wide variety of cuts
Specifications:
- Motor HP: 5 HP
- Voltage: 230V
- Phase: 1 PH
- Amps (if applicable): 22A
- Max Resaw Height: 16" Max Cutting Width: 20"
- Wheel Size: 20-1/4"
- Wheel Material: Cast Iron
- Quick Blade Release: Yes
- Blade Length: 158"
- Blade Width Range: 1/8" - 1-1/2"
- Blade Speed: 2530/4850 SFPM
- Blade Guide Type: Tool-less adjustable
- Table Size: 21-1/4" x 20"
- Table Tilt (L/R Degree): 5°/45°
- Table Material: Cast Iron
- Dust Port Size: 4" (2)
- Height: 88.2"
- Footprint: 37" L x 32-1/4" x 88"
- Warranty Information: 5-Year Limited Warranty
What's Included:
- (1) Jet® 20" Woodworking Bandsaw - 5 HP 1 Ph 230V - JWBS-20-5
- (1) Rip Fence/Resaw Fence
- (1) Miter Gauge
- (1) Bandsaw Blade - Hook - 158" x 1" x 0.035" - 3 TPI
