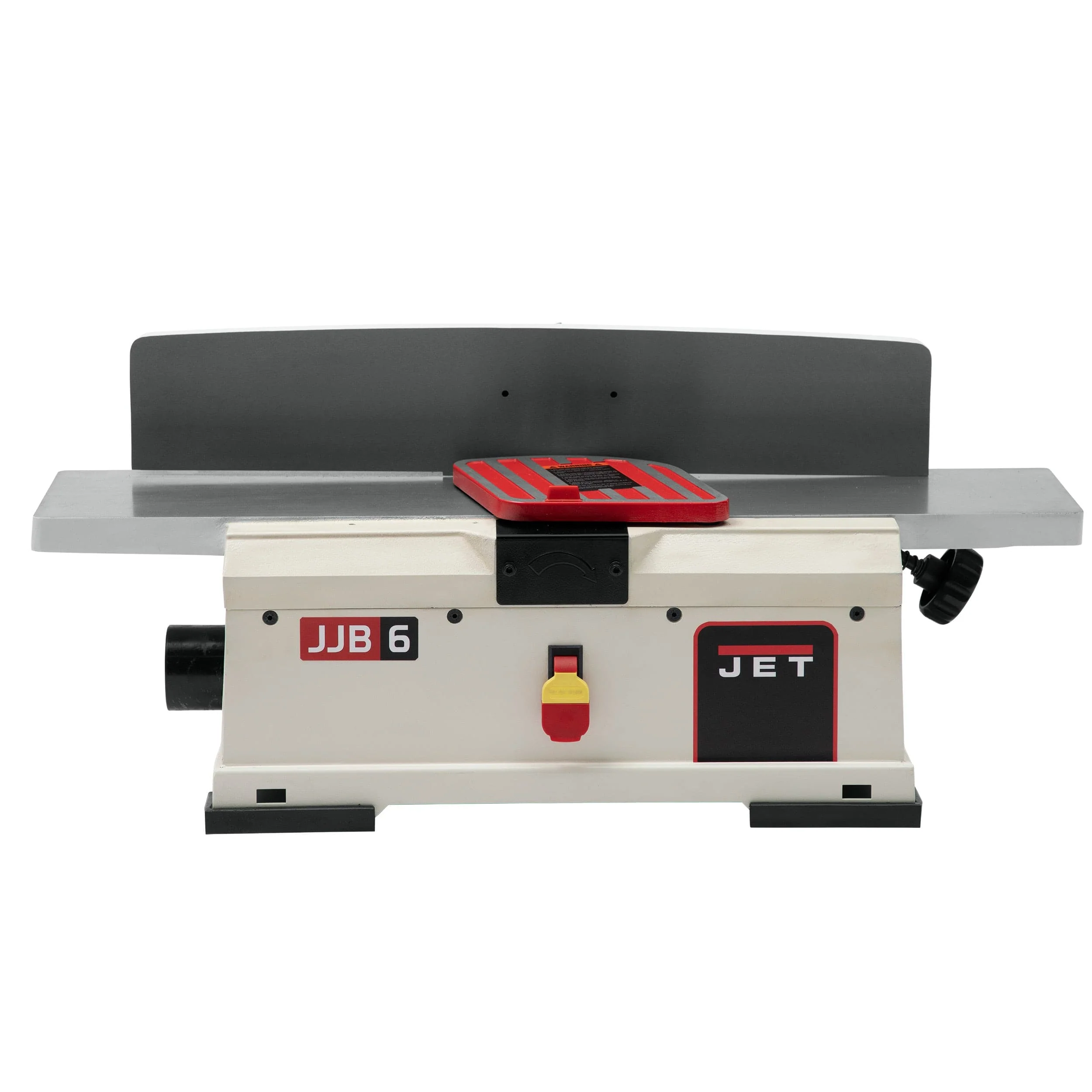

6" Benchtop Jointer - 1 HP 1 Ph 115V - Helical Cutterhead - JJ-6HHBT
From JET®, the 6" JJ-6HHBT Benchtop Jointer, Model 718600 provides a smooth and consistent cut surface thanks to its use of 14 carbide tipped Helical Heed Blades. The heavy-duty cast-iron tables and fully adjustable fence make for a premium cutting experience. Features include a fully adjustable cast iron fence, internal dust collection system and safety push block and push stick.
Features

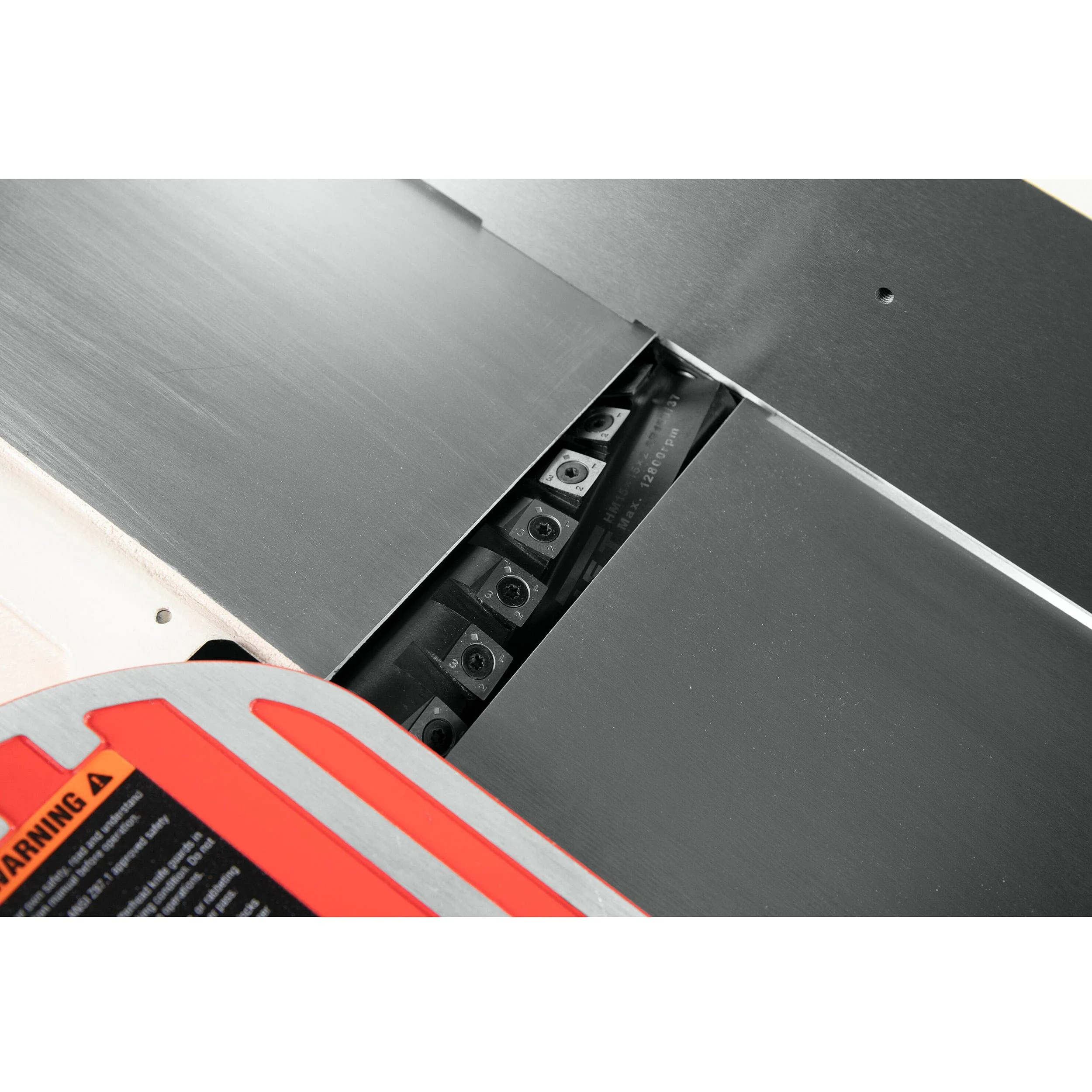

- True helical cut with 14 index able four-sided carbide blades
- Heavy-duty cast-iron tables
- Large cast iron fence

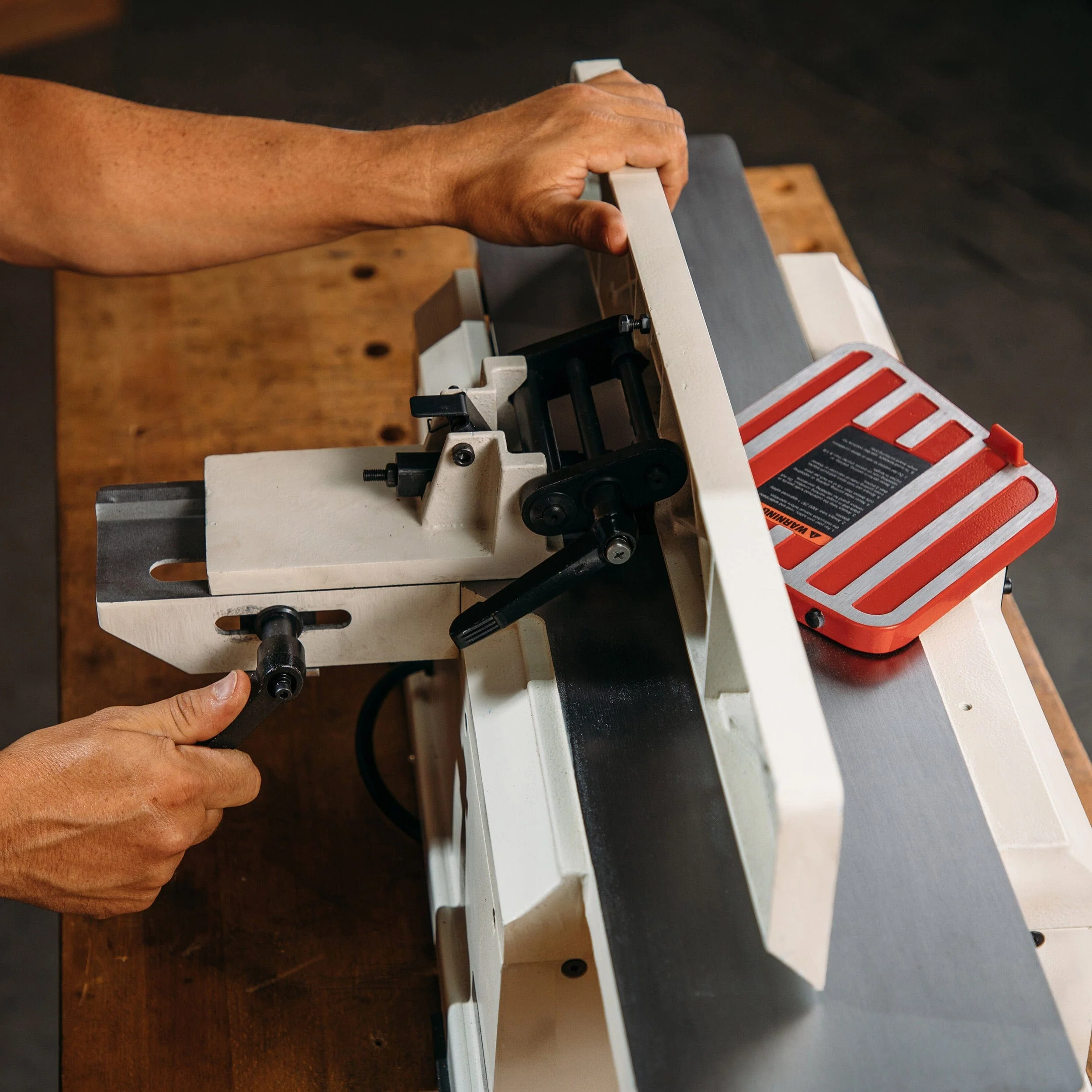

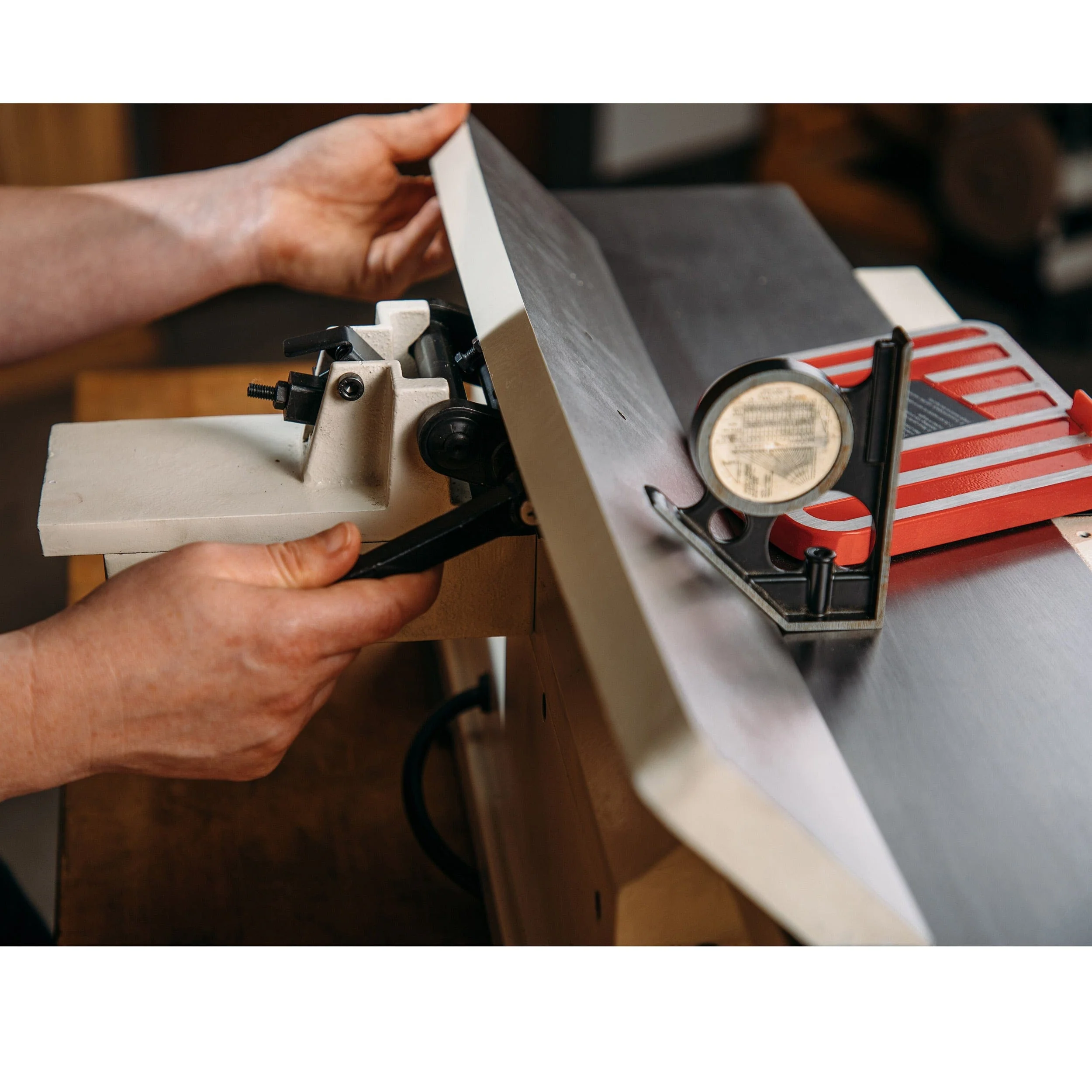

- Fully adjustable fence with locking stops at 4 +/-45 tilt dual direction for beveling
- Internal blower motor moves dust and chips away from motor and cutter head
- Powerful 1 HP. 15 Amp motor turns the cutter head at 10,000 RPM's

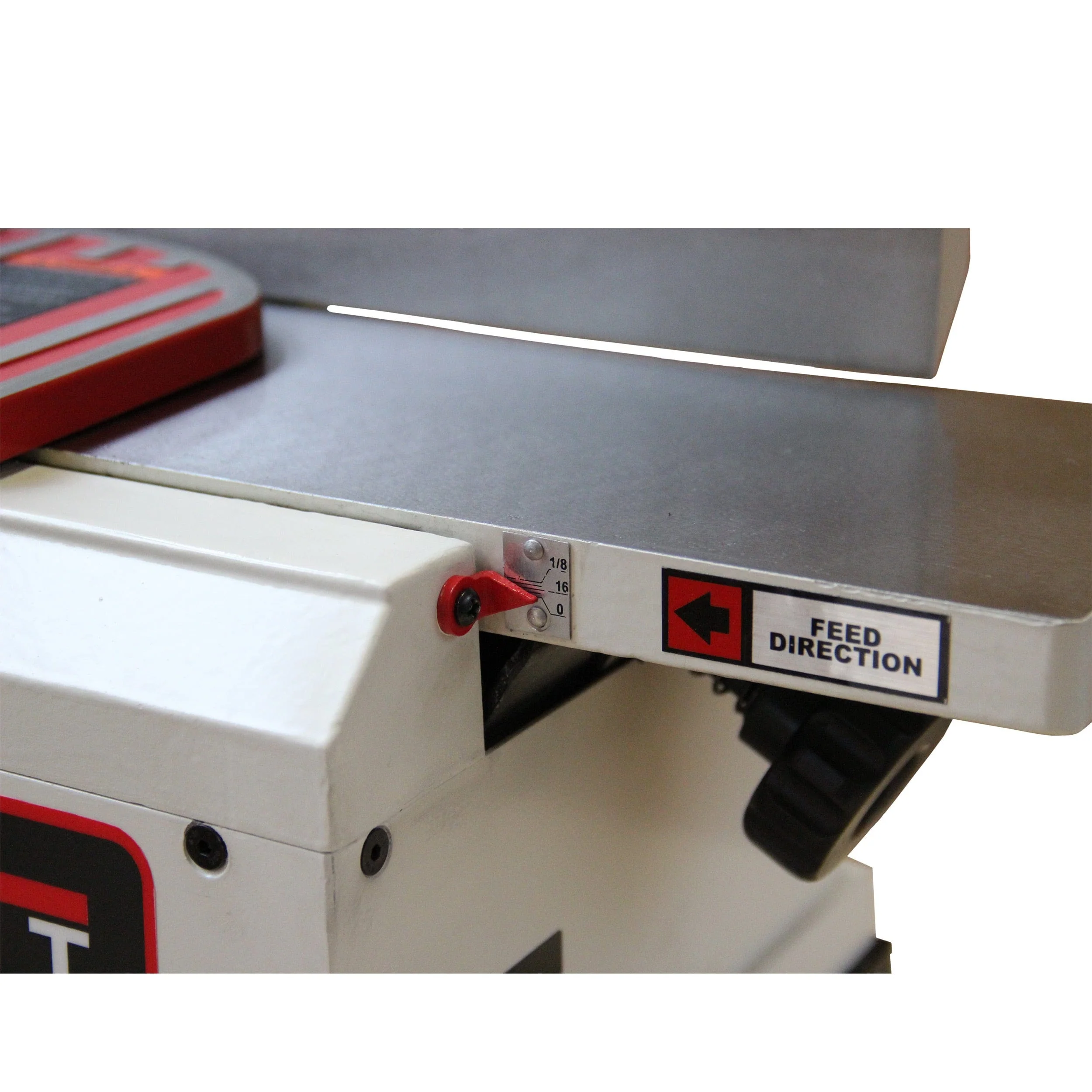

- Highly visible scale accurate depth of cut adjustments
- Front mounted toggle switch with removable safety key
- 6" jointing capacity in a small footprint

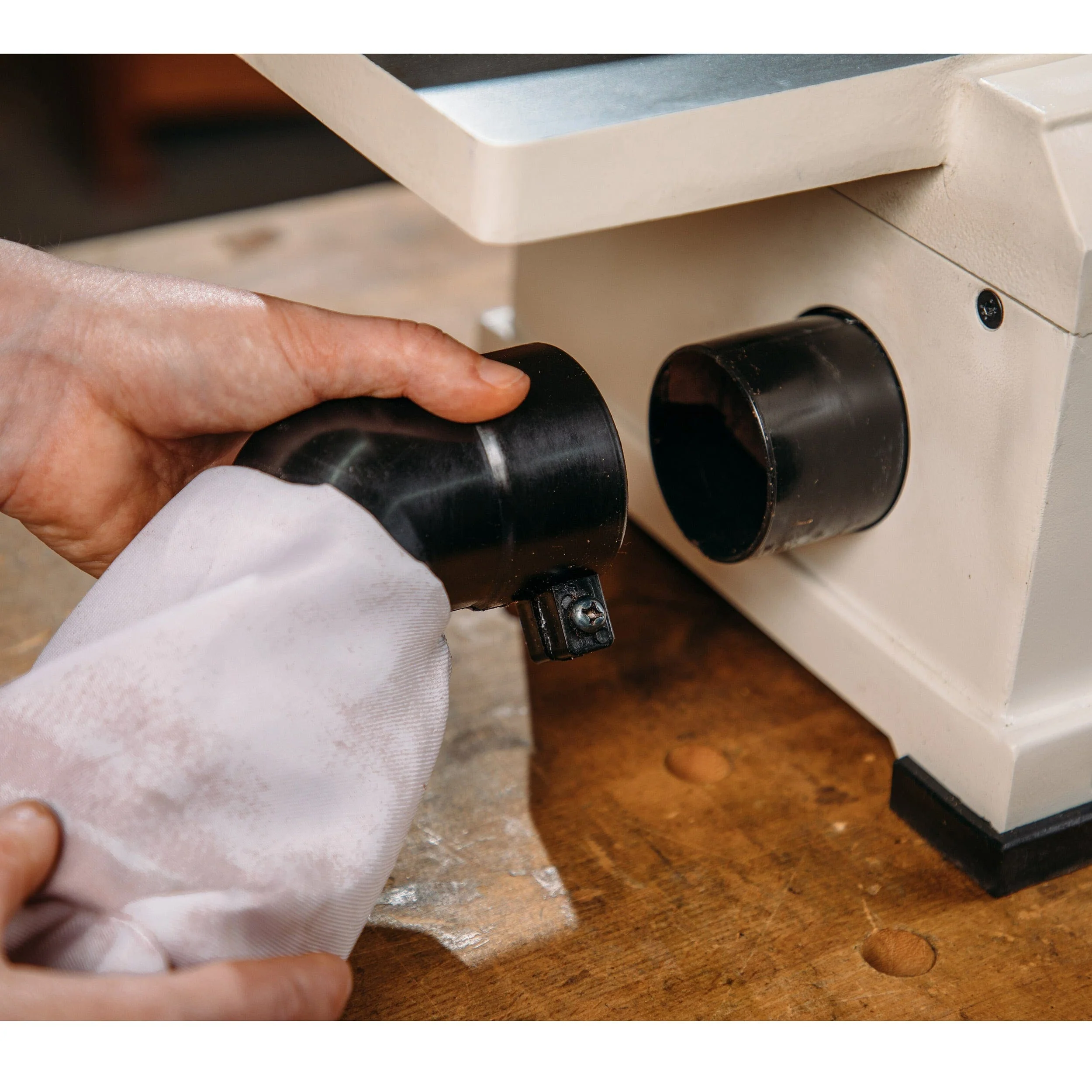

- Large dust collection bag with a quick empty zipper
Specifications
- Product: Jointer
- Style: Benchtop
- Type: Helical Head
- Motor: 1 HP, 1 PH, 115V
- Helical Cutters: 14 - 4 sided Carbide
- Cutter Size: .59"L x .59"W x .10", R6/37 degree
- Fence Tilt and Positive Stops: 45 degrees L, 90 degrees, 45 degrees R
- Infeed Table Length: 45"
- Table Size: 28-5/8" x 6-1/4"
- Cutter Speed: 10,000 RPM
- Fence Size: 22-3/4" x 4-3/8"
- Cutting Capacity: 6"
- Cuts Per Minute: Continuous
- Cutterhead Diameter: 2"
- Maximum Stock Removal: 1/8"
- Dust Port: 2-1/2" O.D.
- Recommended Breaker Size: 15Amp
- Sound Rating: 92 dB
- Overall Size: 11.5" H x 32.75" L x 15:W
- Ship Weight 71lbs
- Actual Weight: 67lbs
Includes
- JET® 6" Benchtop Jointer - 1 HP 1 Ph 115V - Helical Cutterhead - JJ-6HHBT
- Angle Fence
- Filter Bag
- Dust Chute

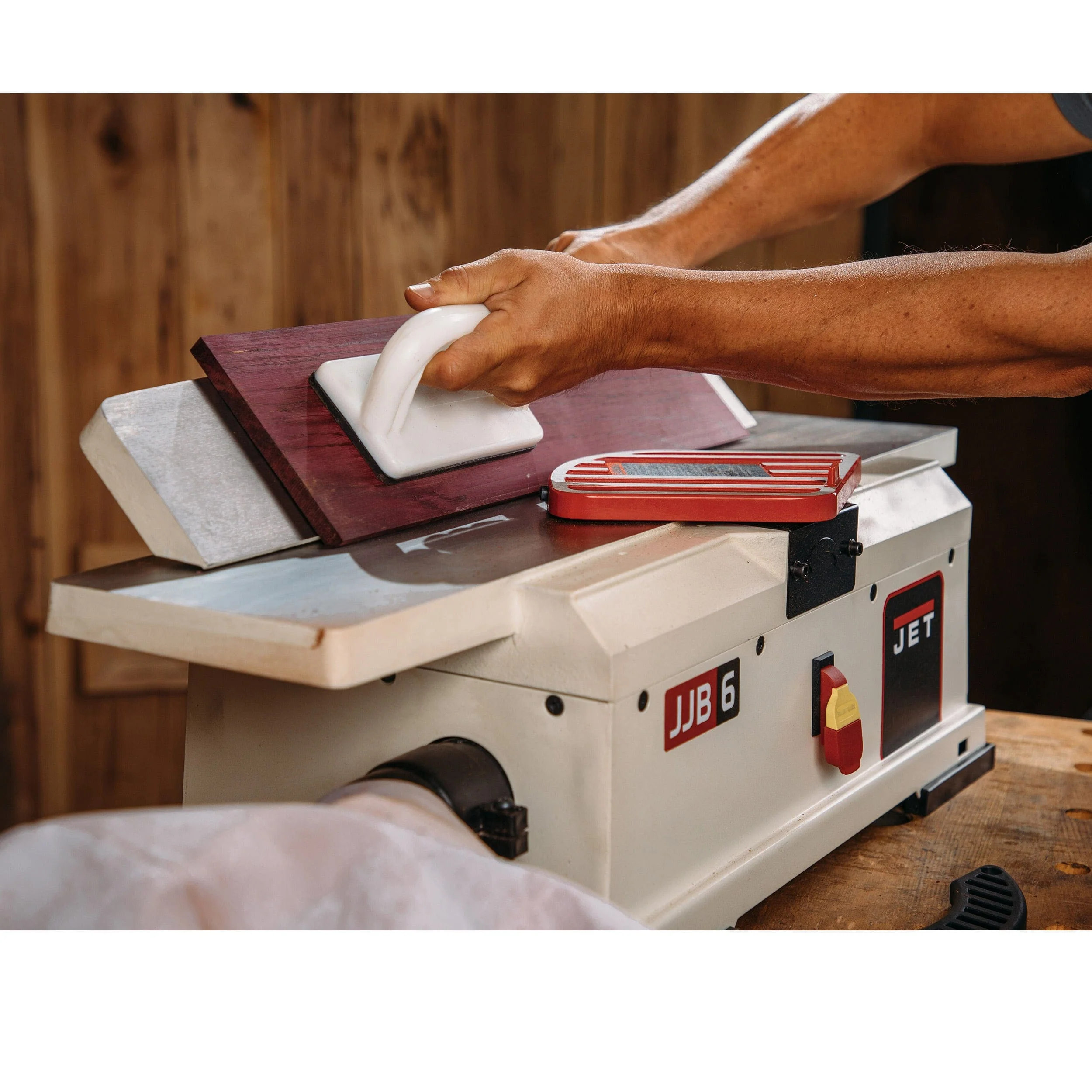

- Push Block
- Push Stick
- Star Point Screwdrivers
- Hardware Pack
- Operator's Manual
