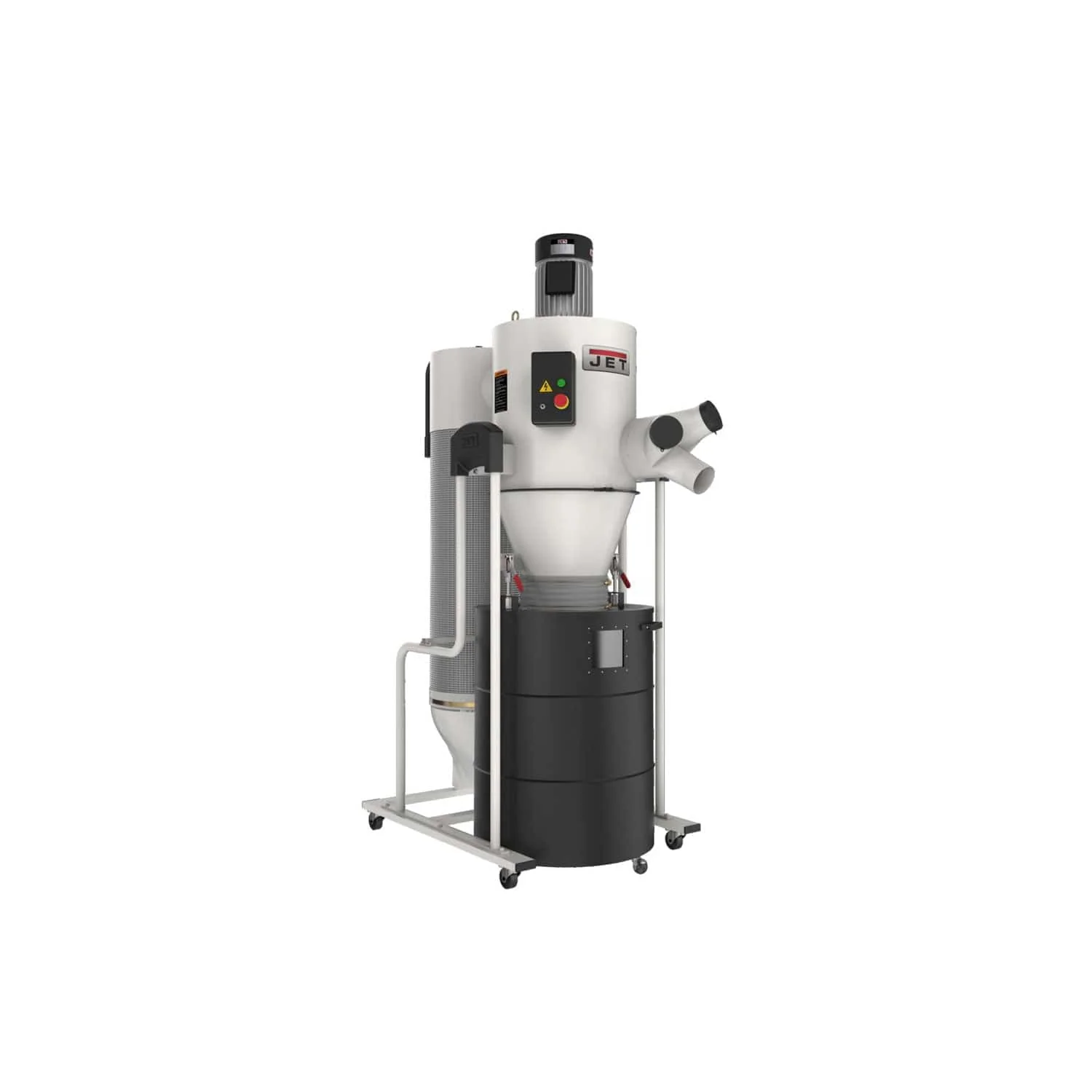

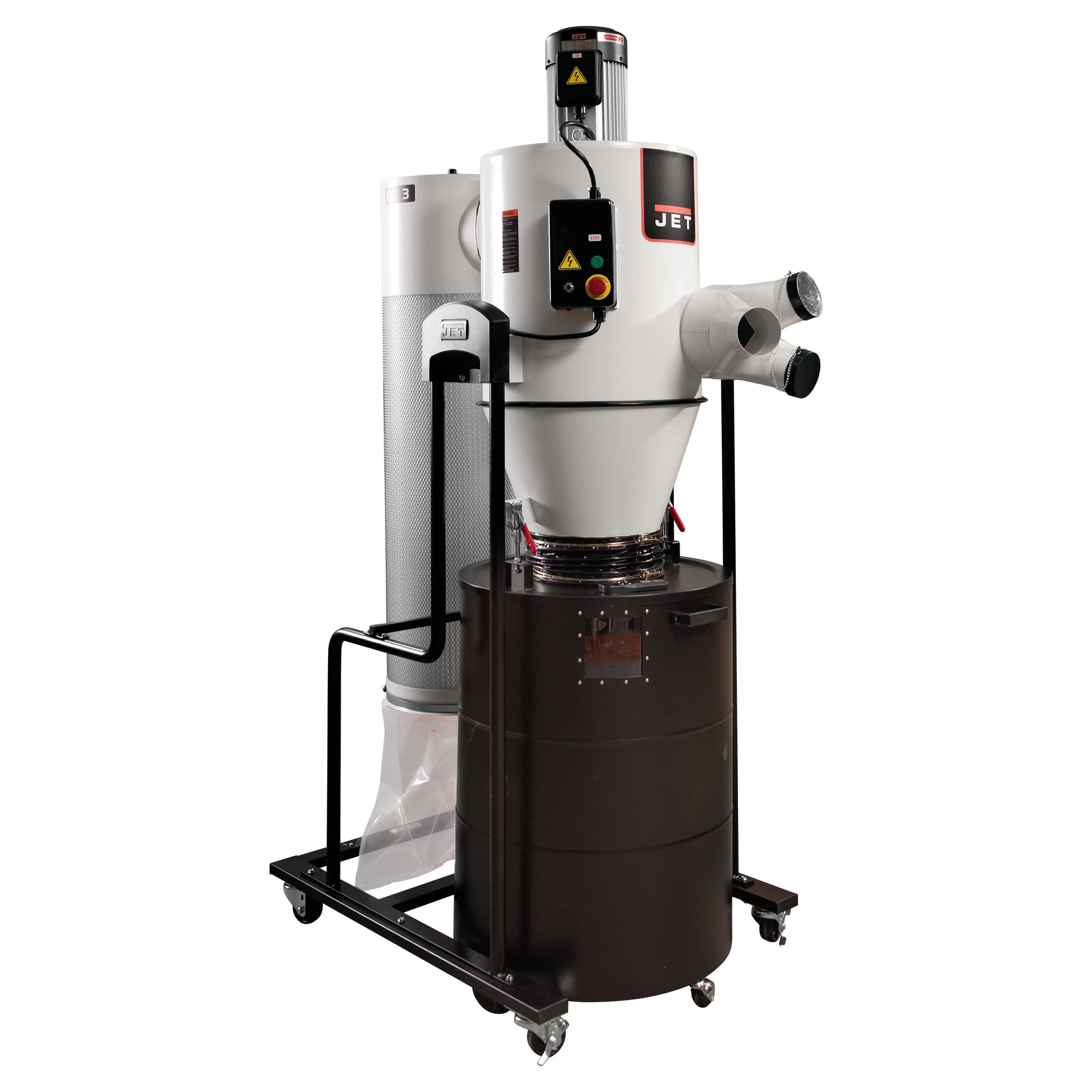

Cyclone Dust Collector with 2-Micron Canister Filter - 3 HP 1 Ph 230V - JCDC-3
The Jet® Cyclone Dust Collector delivers the efficiency you’ve been waiting for with a direct mount filter, a radio frequency remote control, and a 30 gallon collection bin. Cyclone dust collectors take your shop’s capabilities to a new level. You’ll get more working CFM than comparable horsepower single stage units with the cyclone's two stage separation. Heavy debris is pulled down to the collection bin before debris stream reaches the filter, providing constant suction. Upgrade to a JET Cyclone Dust Collector and experience the Power of Efficiency.
Features:
- Get more working CFM than comparable horsepower single stage units with the cyclone's two stage separation

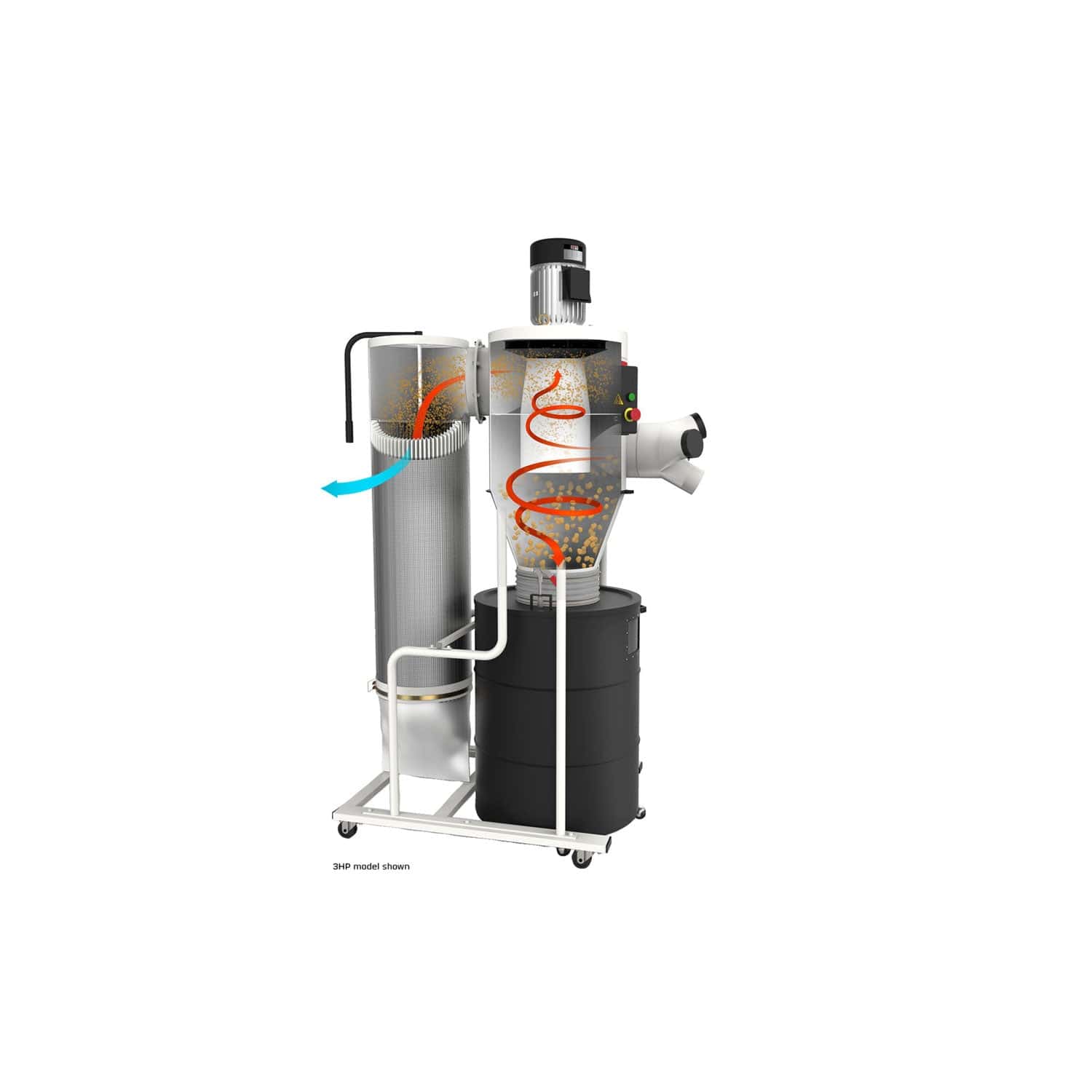

- Heavy debris is pulled down to collection bin before debris stream reaches the filter, providing constant suction
- Direct mounted filter allows unrestricted airflow, increasing system efficiency

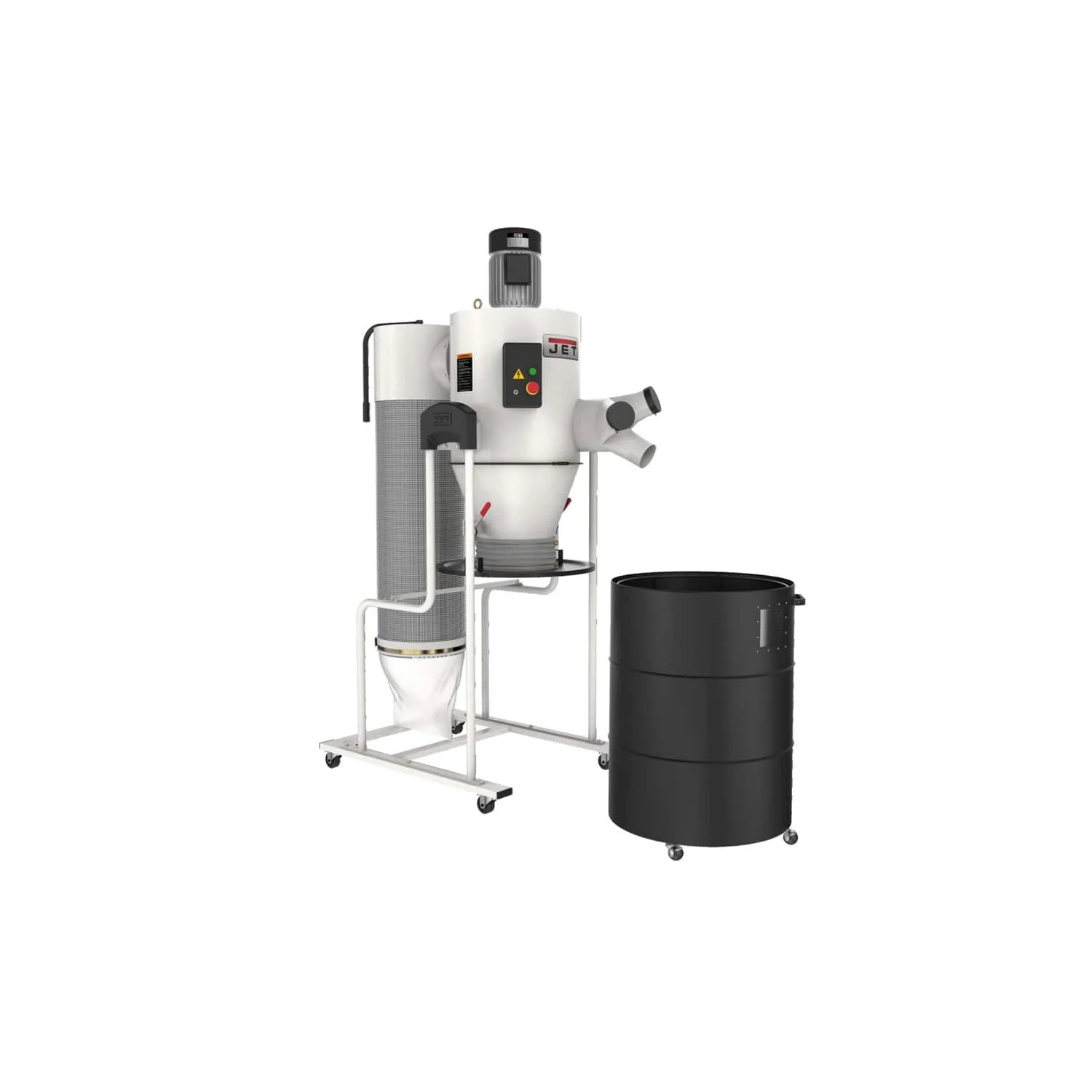

- Heavy debris is captured in the 55 gallon drum with a quick release and independent casters for quick emptying
- Radio frequency remote control turns on dust collection from up to 50 feet away
- Remote timer settings allows system to run for 2, 4, 6, or 8 hours before automatic shutoff
- Double paddle manual cleaning system quickly cleans the pleated filter
- Swivel casters make it easy to move the unit around the shop
Specifications:
- Static Pressure Loss (US Method) (Wc.): 1.26
- Static Pressure Loss (EU Method) (Wc.): 2.047
- MERV Value: 13
- Filter Efficiency: 1 Micron
- Canister Filter Length: 38-3/8"
- Collection Drum Capacity: 55 gallon
- Impeller Material: Steel
- Motor Power: 3 HP
- 1-Hose Connection Diameter: 8"
- 3-Hoses Connection Diameter: 4"
- Motor Voltage: 230V
- Prewired Voltage: 230V
- Motor Amps: 13A
What's Included:
- (1) Jet® Cyclone Dust Collector with 2-Micron Canister Filter - 3 HP 1 Ph 230V - JCDC-3
Shipping / Billing Information
All shipments must be inspected and any damage reported within 3 days of receipt.
Address corrections and cancellations may not be possible once order is submitted. Requested changes may incur additional charges.
This product ships direct from the manufacturer:
- Your order will ship in 7-10 business days.
- This product is considered special order. Your account will be charged when you place your order.
- Express or overnight shipping is not available for this product.
- Ships by Ground to the 48 contiguous states. Cannot ship to Alaska, Hawaii, PO Boxes, APOs, US Territories, Canada or other foreign countries.
Return Information
All returns must be pre-approved. Any non-warranty returns must be unused and in original packaging. A 25% restock fee will apply. Customer pays return freight. Please call our Customer Service Dept. at 1-800-535-4482 with any return questions.
