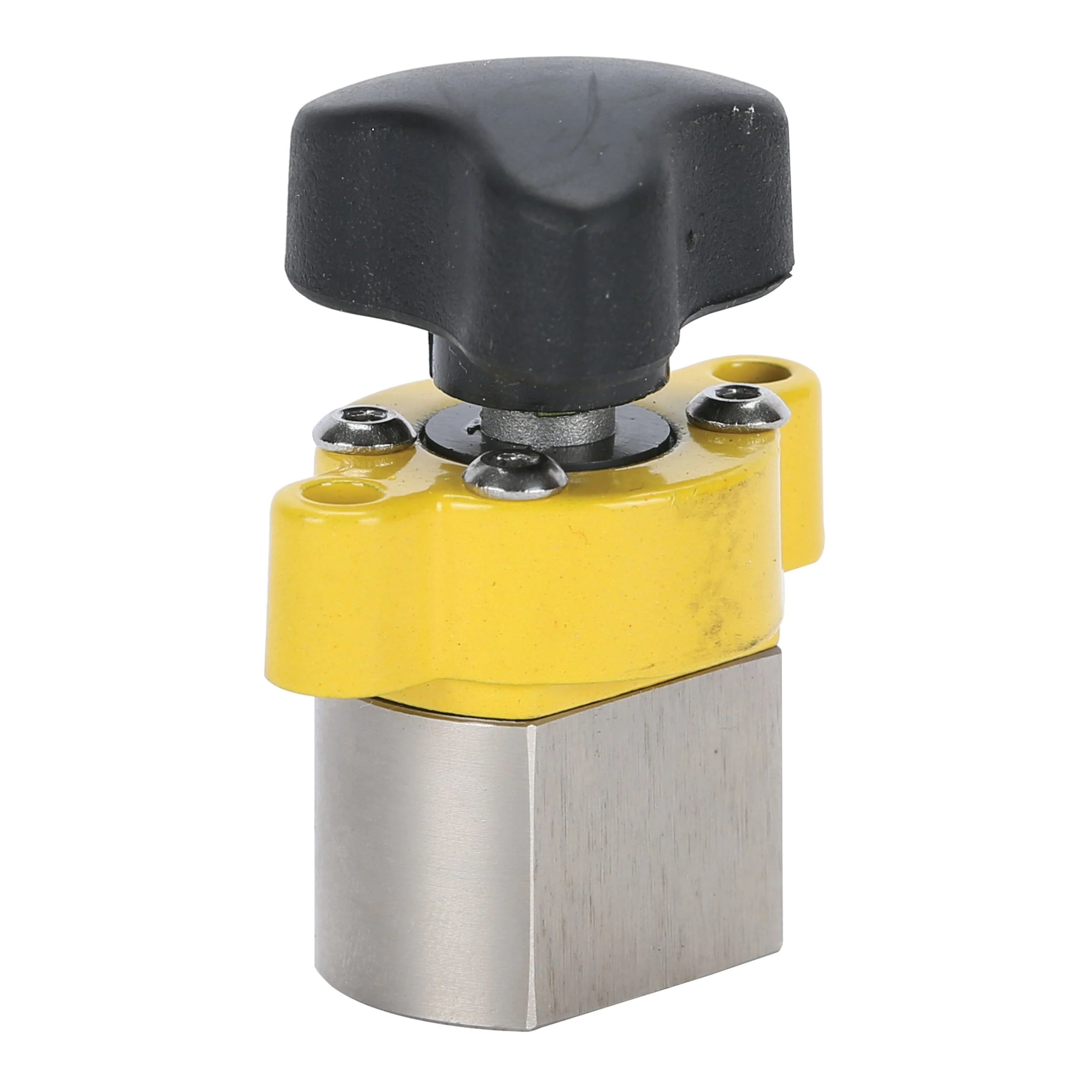

MagJig 60 Switchable Magnet For Jigs and Fixtures

Magswitch makes the ultimate work-holding clamp. Get instant holding force with a simple 180° turn of a knob! Avoid the hassles of creative clamping while trying to secure jigs on a work table. MagJig gives you flexibility to mount anywhere on a steel surface, such as your table saw, jointer, shaper, bandsaw, drill press, or stationary sander. Make your own custom jigs and fixtures using MagJigs by drilling standard 3/4" stock. Recommend two or more MagJigs per jig or fixture to avoid pivoting.

Features:

• Fast, strong setup anywhere on a steel or cast-iron table or fence
• Simple ON/OFF magnet with 180° turn of a knob
• Applies a 60-lb. breakaway force against any surface made of steel
• Install in 3/4" material using 25mm forstner bit (sold separately)
• Recommend two or more MagJigs per jig or fixture

Specifications:

• Max Breakaway: 55 lbs (24.9 kg)
• 2:1 Shear Working Load: 6 lbs (2.7 kg)
• Product Weight: 0.2 lb (0.1 kg)
• Dimensions: 1.6 x 1.1 x 1.7 in (152.4 x 27.9 x 43.1 mm)
• Magnetic Pole Footprint: 56 mm x 16 mm
