Automatic Edgebander TPM- 1 Ph- 220V

Automatic Edgebander TPM- 1 Ph- 220V

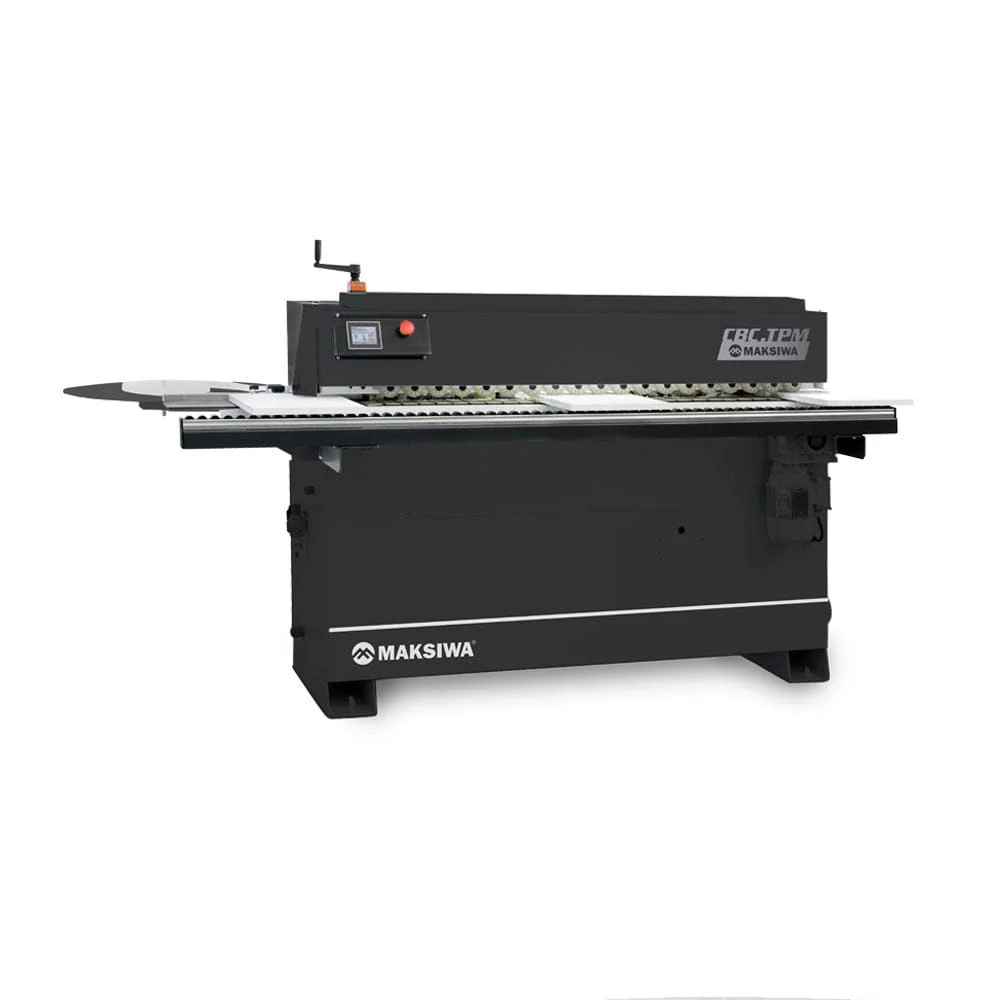

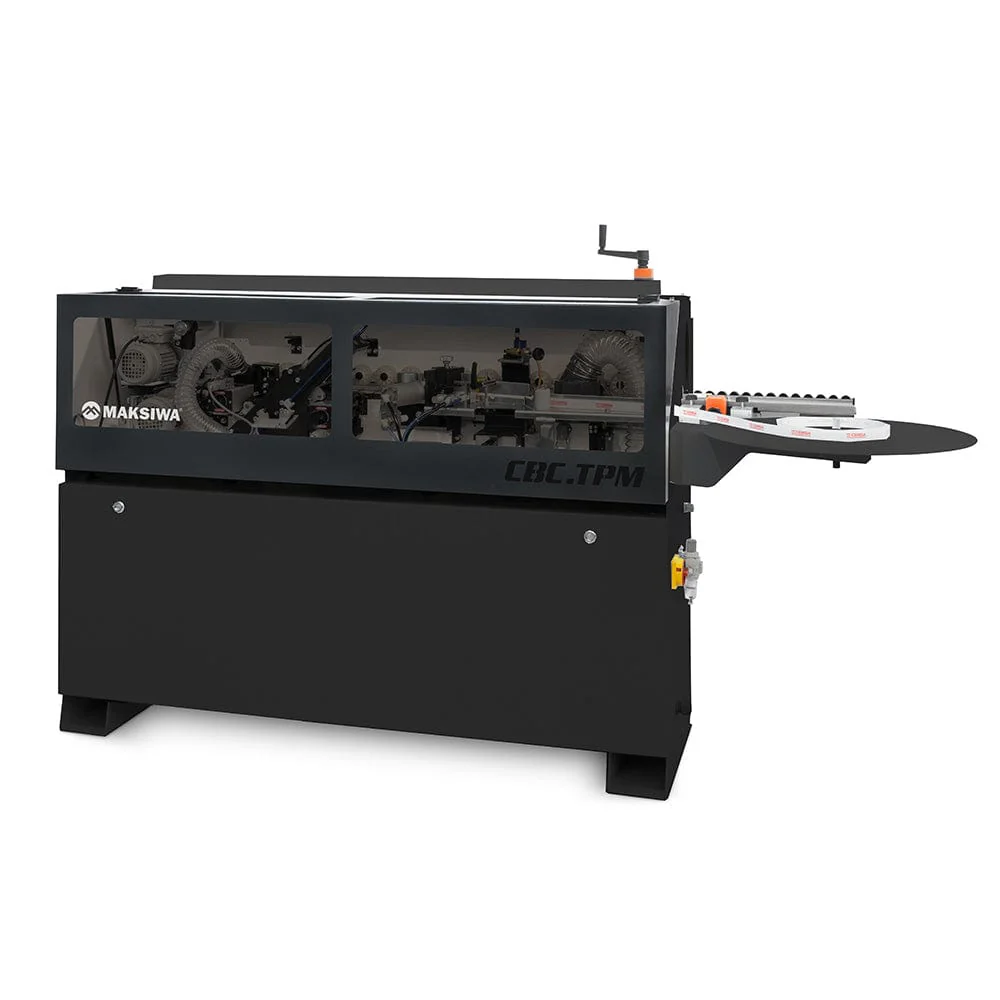

The Maksiwa CBC.TPM Automatic Edgebander combines precision and efficiency with a compact design, making it ideal for workshops with limited space. It features pre-milling, a gluing unit, a multi-function group for end trimming and top & bottom trimming, glue scraping, buffing, and vertical rounding for versatile performance. Equipped with touchscreen panel, this machine ensures ease of operation and delivers a flawless finish.

Features:
  • Edge Tape: 0.4-2 mm
  • Panel Thickness: 10-45mm
  • 1 Phase 220V 60Hz
  • Glue Scraper Unit
  • Buffing Unit
  • End Trimming HF Motor
  • Pre-milling Unit 2 HF Motors
  • Glue Pot Capacity 0.5kg | 1lbs Teflon Coated
  • Automatic feeding Speed 21 ft/min
  • Net Weight 1911 Lbs | 540 kgs
  • Compact Design
  • Melamine/PVC/ABS/PP
Specifications:
  • Automatic Feeding Speed: 21 ft/min
  • Panel Thickness Min/Max: 13/32” - 1 3/4”
  • Max Pre-milling Height: 1"
  • Edgebanding Thickness: 0.0157" - 0.07"
  • Glue Pot Capacity: 1lbs
  • Max Edgebanding Height: 1"
  • Minimum Panel Width: 1 3/4"
  • Minimum Panel Length: 4 3/4"
  • Extendable Panel Support Rail Length: 83 1/2"
  • Extension Table Max Width: 10"
  • Size of Dust Collector Ports: 6"
  • Minimum Dust Collection Requirements: 1236 CFM
  • Air Pressure Requirement: 14 SCFM @ 87PSI
  • Edgebanding Coil Support Diameter: 59"
  • Recommended Glue Temperature Range: 356°F - 410°F
  • Max. Machine Dimensions (LxWxH): 93 1/2”x 40 13/16”x 53”
  • Net weight: 1191 LBS
  • Shipping Dimensions (LxWxH): 91” x 30” x 57”
  • Glue Type: Granulated Hot-Melt EVA
  • Electrical Information: 1 Phase, 220V, 60Hz, 30 Amps
  • Sound Rating: 80 Db

Shipping / Billing Information

This product ships direct from the manufacturer:

  • Your order will ship in approximately 5-7 business days.
  • This product is considered special order. Your account will be charged when you place your order.
  • Express or overnight shipping is not available for this product.
  • Ships by Ground to the 48 contiguous states. Cannot ship to Alaska, Hawaii, PO Boxes, APOs, US Territories, Canada or other foreign countries.

Any suspected damage must be reported on bill of lading for all freight items

Return Information

If you have a return issue, contact Woodcraft Supply customer service @ 1-800-535-4482 for return details. All Returns must have a RGA or will be refused. Customer is responsible for all return freight.

Warranty Information

Maksiwa warranty's Power Tools for 2 years. If you have a warranty question, please contact Maksiwa Customer Service at 754/2276096
