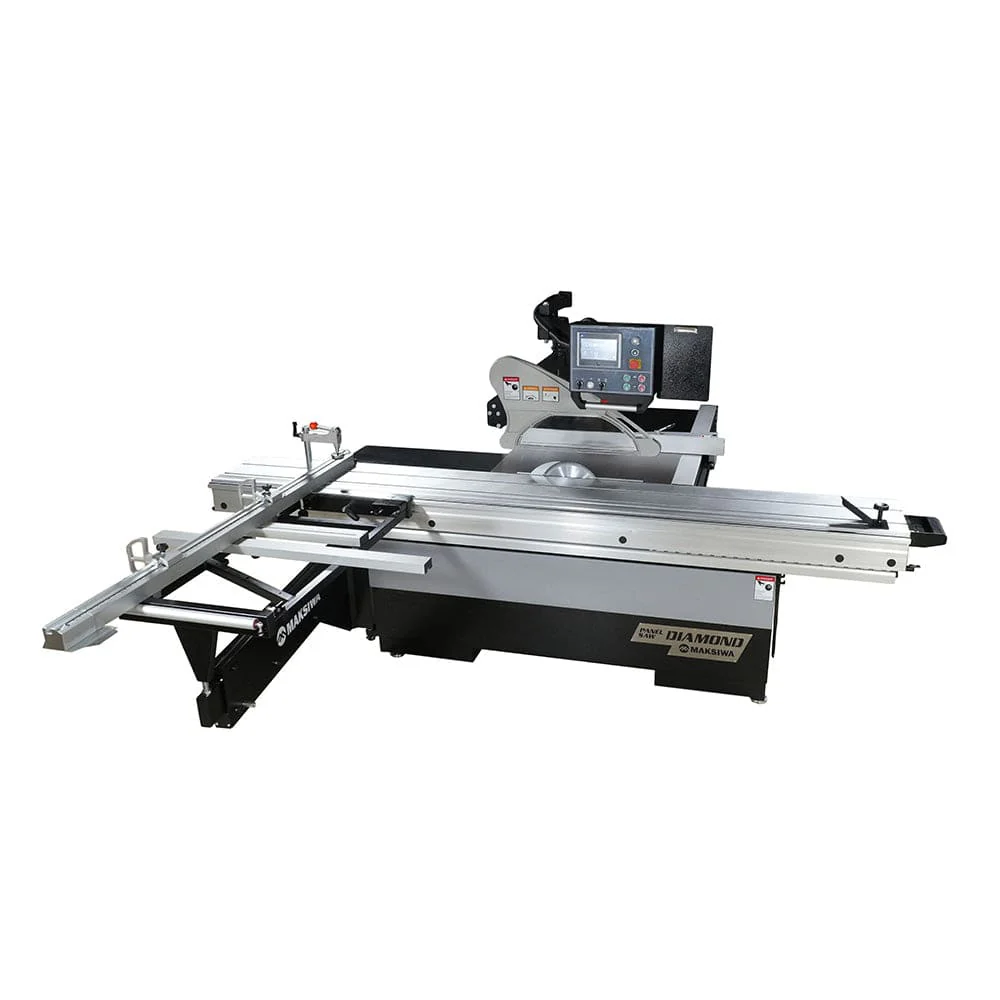

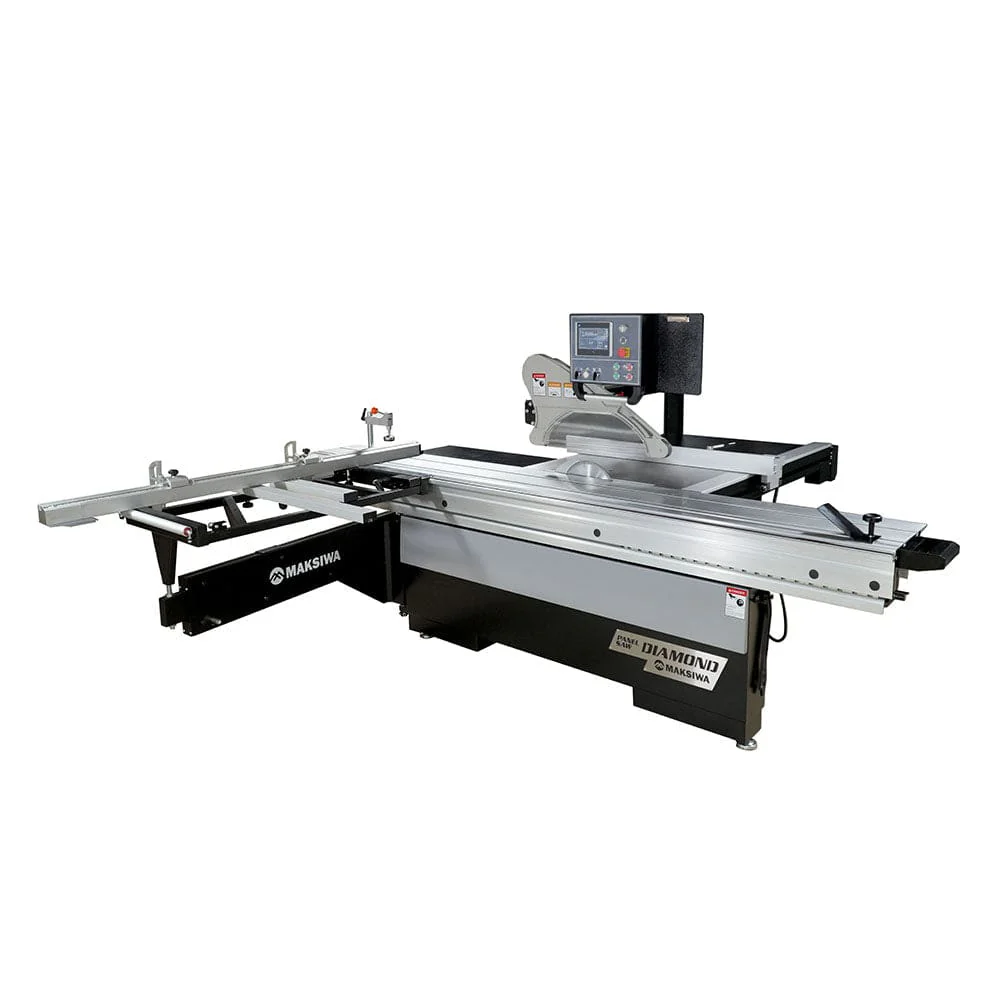

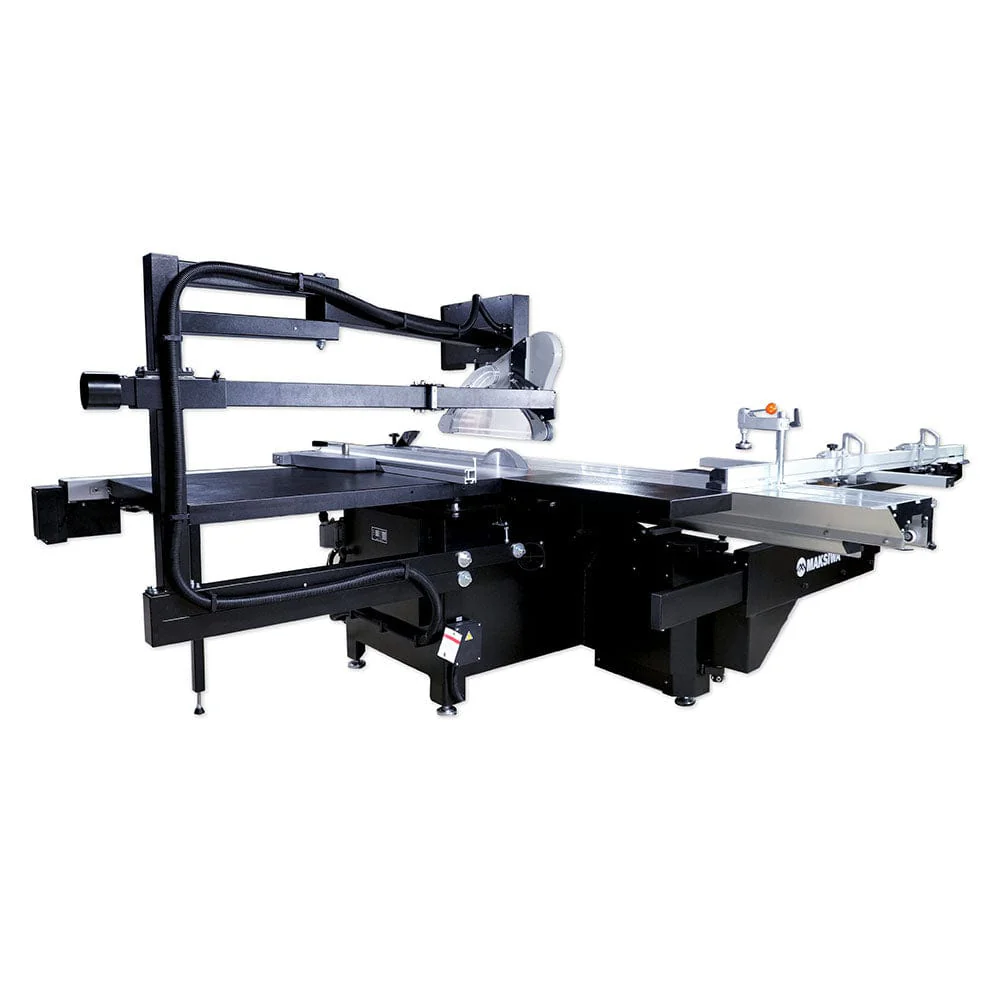

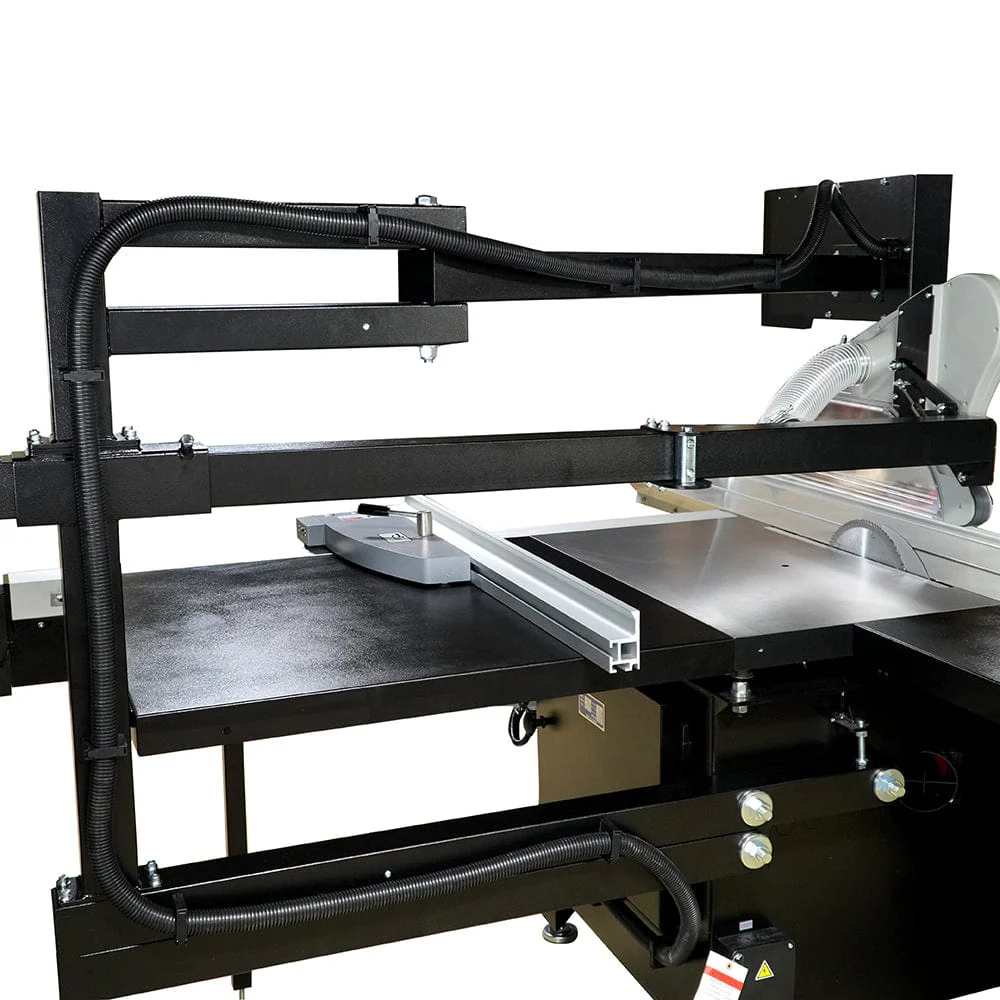

Sliding Panel Saw - Diamond- 220V - 10 HP - 3 Ph

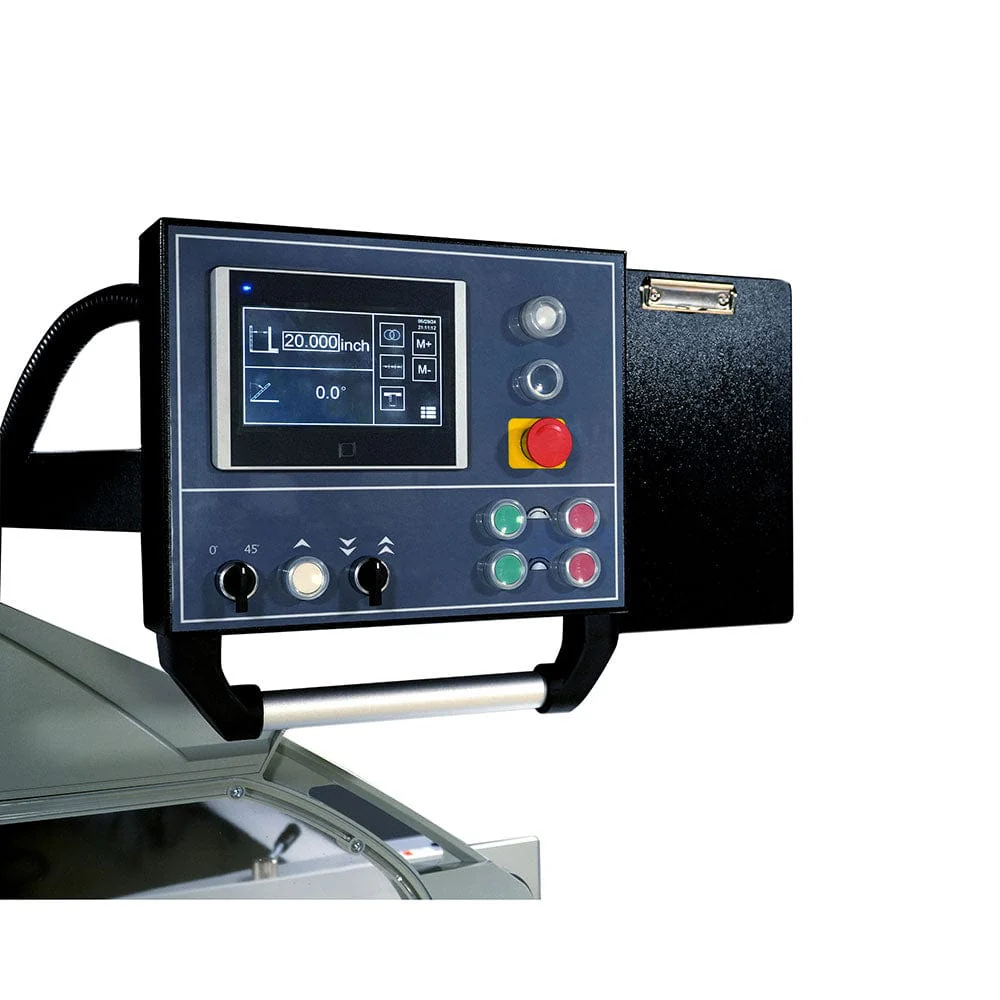

Boost your shop’s productivity with the BMD.3200.IR Diamond Sliding Panel Saw from Maksiwa — engineered for precision, power, and performance. Featuring a 10HP motor, CNC rip fence, and advanced touchscreen control, this saw delivers unmatched cutting accuracy. Its heavy-duty build ensures lasting stability, while built-in safety features and a dust collection system keep your workspace clean and secure. With a 2-year warranty and U.S.-based support, the BMD.3200.IR is the smart choice for shops that demand versatility and reliability.
Features:
- Main Motor: 5 HP 4000 RPM 3.7 KW
- Max Blade Diameter: 14" (355 mm)
- Main Blade Arbor: 30 mm
- Main Blade Max Cutting Height at 90º: 4" (101 mm)
- Main Blade Max Cutting Height at 45º: 2 3/4" (70 mm)
- Scoring Motor: 1 HP
- Scoring Motor Blade: 4 ¾” (120 mm)
- Scoring Blade Arbor: ¾”
- Sliding Table Dimension: 63" x 14"
- Main Table with Supporting Table: 31.5" x 40"
- Machine Dimension Collapsed: (LxWxH) 66" x 98" x 42"

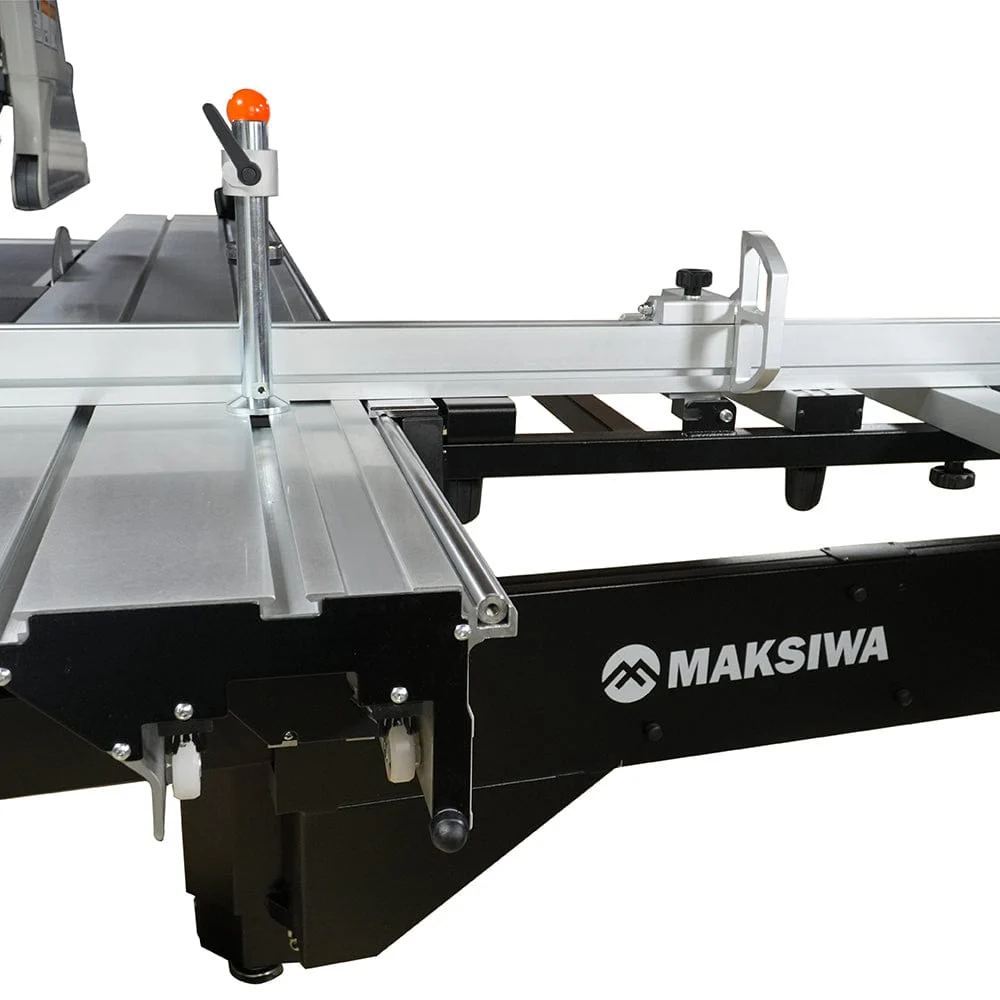

- Crosscut fence max. Collapsed/Extended: 50" / 85"
- Rip Fence Bar Solid Steel Micro Polished: 1”
- Max Tilt: 45º
- Max Cutting Length: 62"

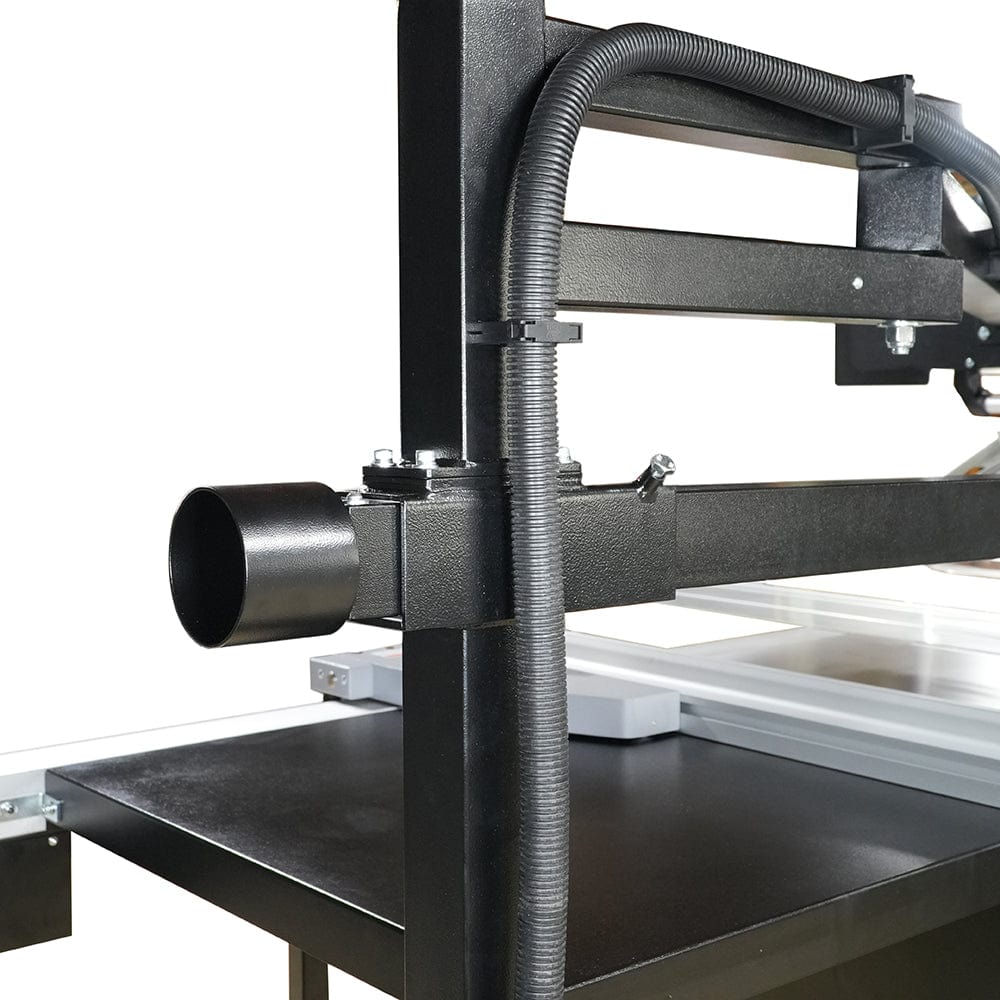

- Dust Collection Port: 4”
- Electrical Specs: 1 PH - 220V -30A – 60 HZ
- 2 Year Warranty
Shipping / Billing Information
This product ships direct from the manufacturer:
- Your order will ship in approximately 5-7 business days.
- This product is considered special order. Your account will be charged when you place your order.
- Express or overnight shipping is not available for this product.
- Ships by Ground to the 48 contiguous states. Cannot ship to Alaska, Hawaii, PO Boxes, APOs, US Territories, Canada or other foreign countries.
Any suspected damage must be reported on bill of lading for all freight items
Return Information
If you have a return issue, contact Woodcraft Supply customer service @ 1-800-535-4482 for return details. All Returns must have a RGA or will be refused. Customer is responsible for all return freight.
Warranty Information
Maksiwa warranty's Power Tools for 2 years. If you have a warranty question, please contact Maksiwa Customer Service at 754/2276096
$20,999.00
