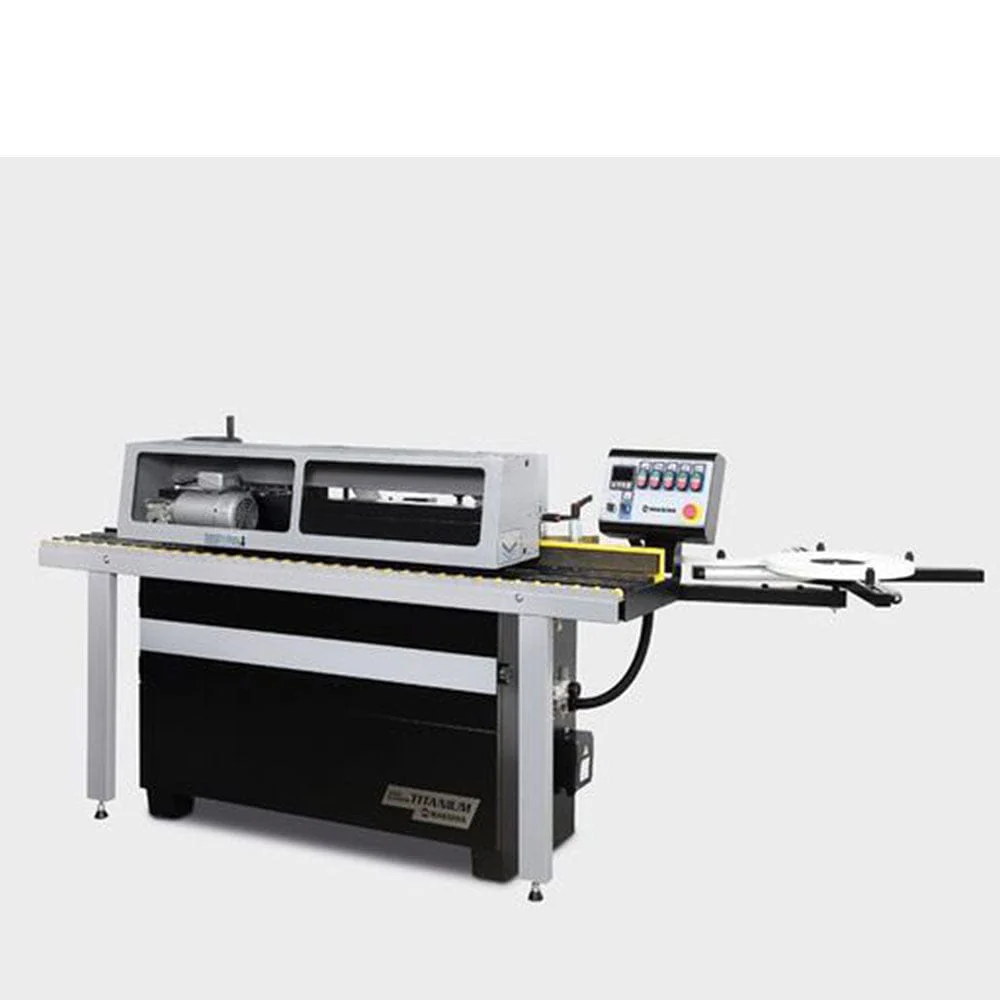

Titanium Automatic Edgebander
From Maksiwa, the CBC-T Edgebander is a masterpiece of engineering, packed with features that will make your job easier, giving you a product finish like never before. Super steady and stable the CBC.T platform is a stainless steel mono-block base. All operating units are easy to be accessed through the upper protection hood.

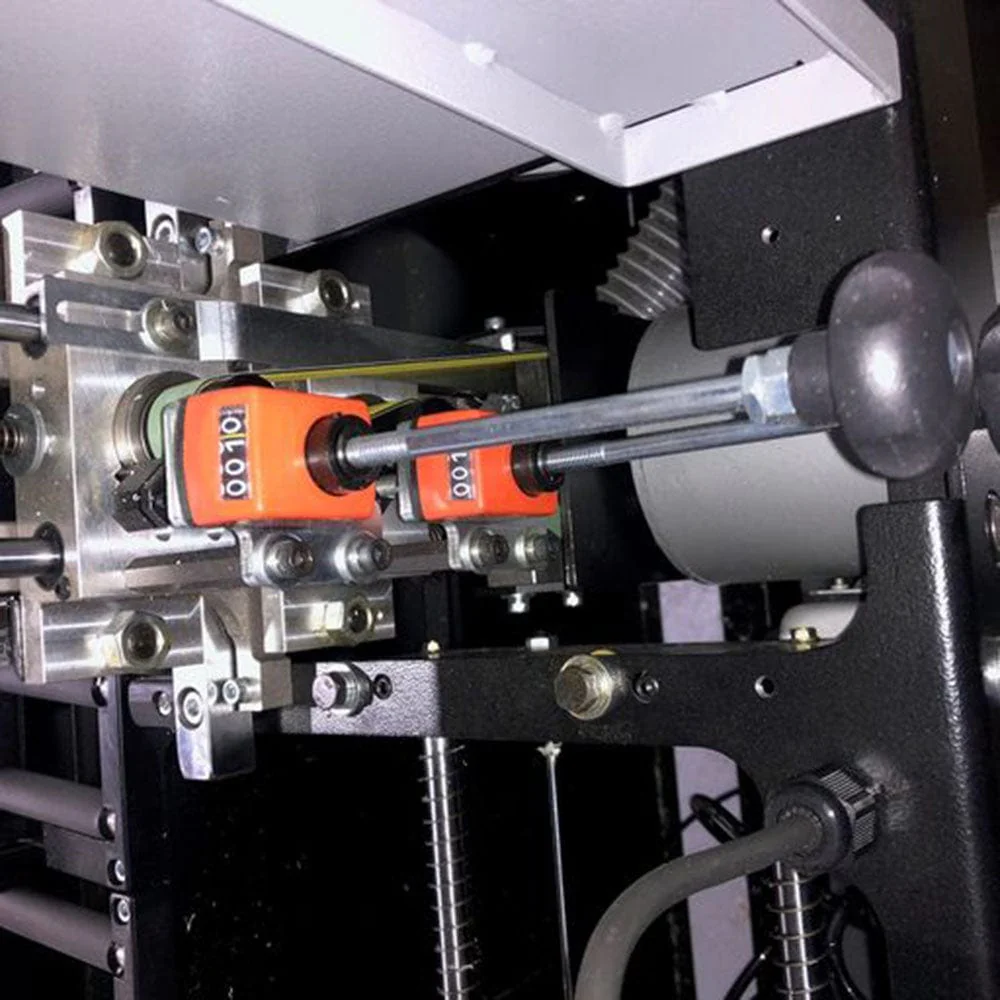

The friction-free worktable feed panels with high-precision and rollers moves the panels through effortlessly and smoothly. All stations are adjusted with a mechanical readout for reference and panel processing is fully automatic with all operating units synchronized.
Specifications
- Working Table Height: 33.5" H
- Extensible Support Width: 22"
- Panel Thickness(min/max): .31 to 1.77
- Automatic Belt Feeder Speed: 9 mt/1'

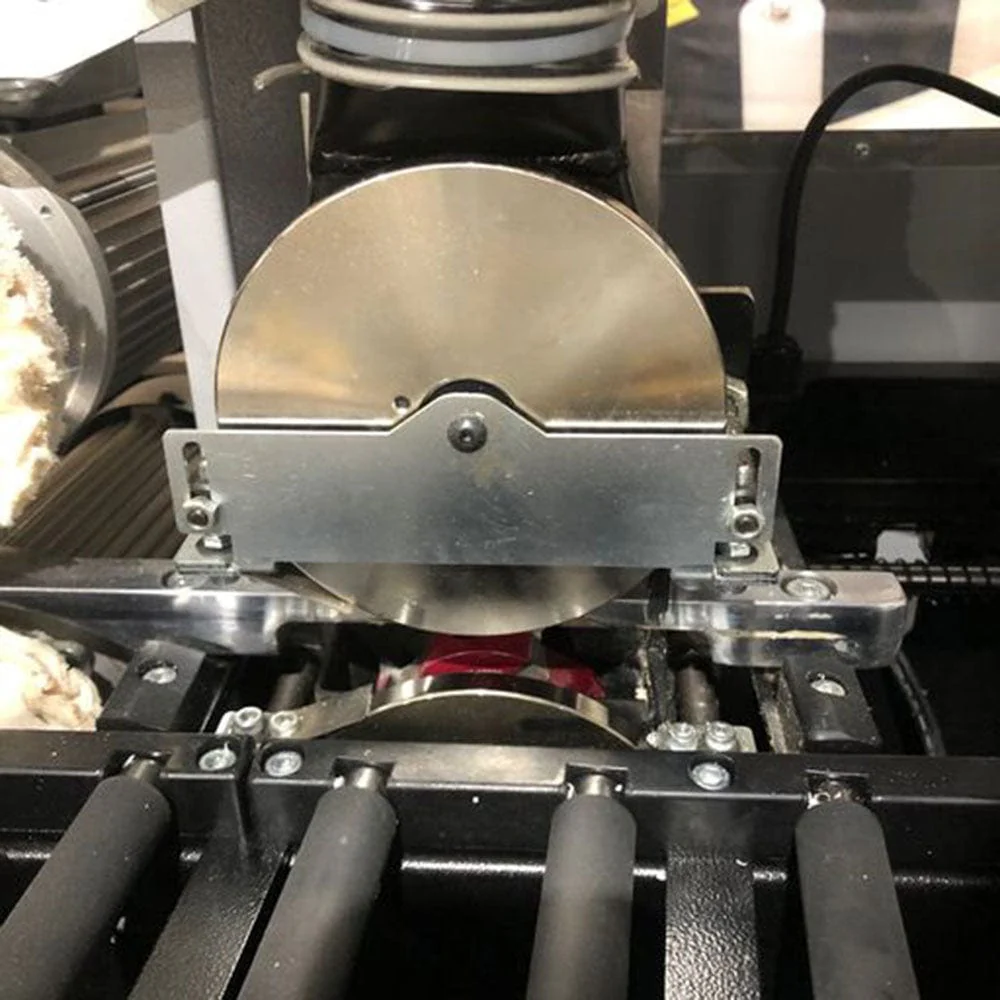

- End Trimming Unit Rotation Speed: 12,000 RPM
- Flush Trimming Unit Rotation Speed: 12,000 RPM
- Cutters: 077mm Z4 R=2mm (T.C.T_

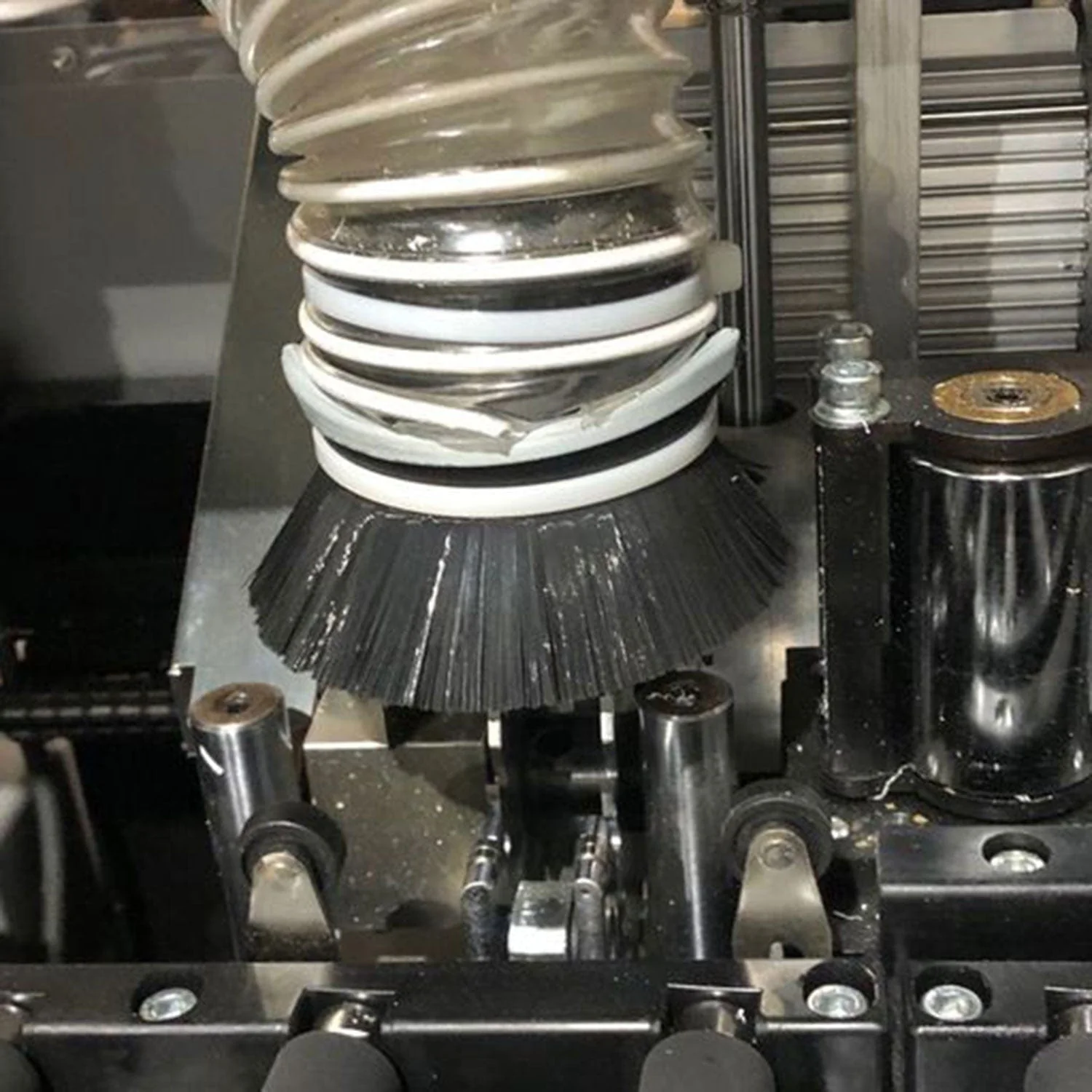

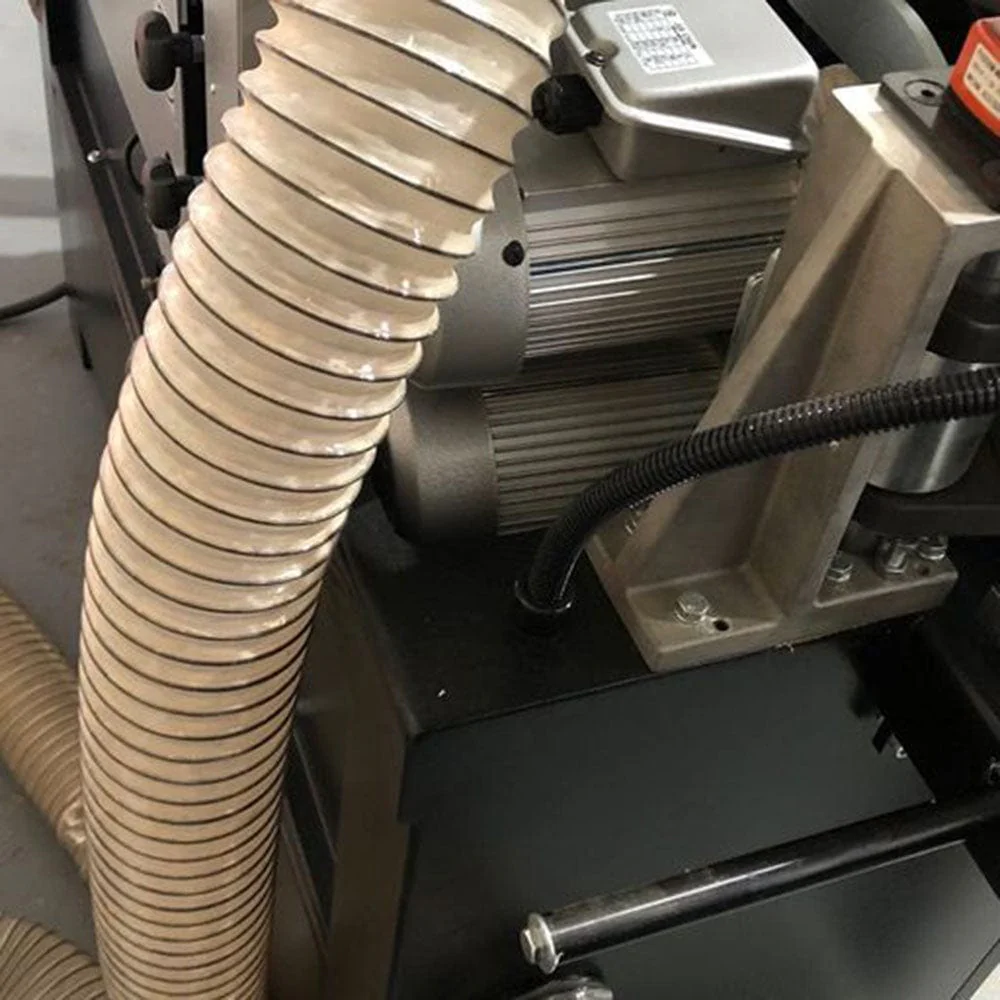

- Dust Collection Outlet: 5"

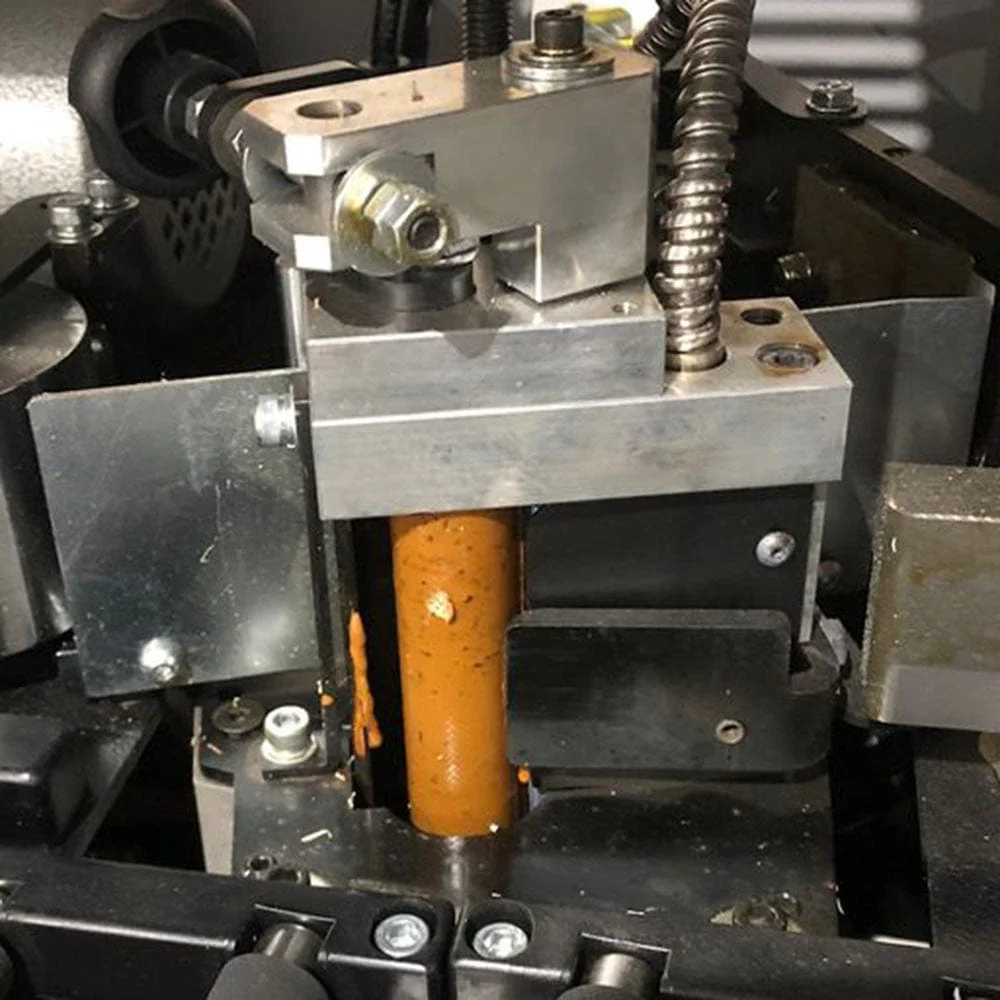

- Glue Pot Elements: 1315 W
- Total Power Installed:7.7 KW
- Heating Elements: 5 pcs for 1.315 KW
- Heating In-feed Fence: 0.4 KW
- End Trimming Motor: 0.22 KW
- Flush Trimming Motor: 0.37 KW (2 pcs)

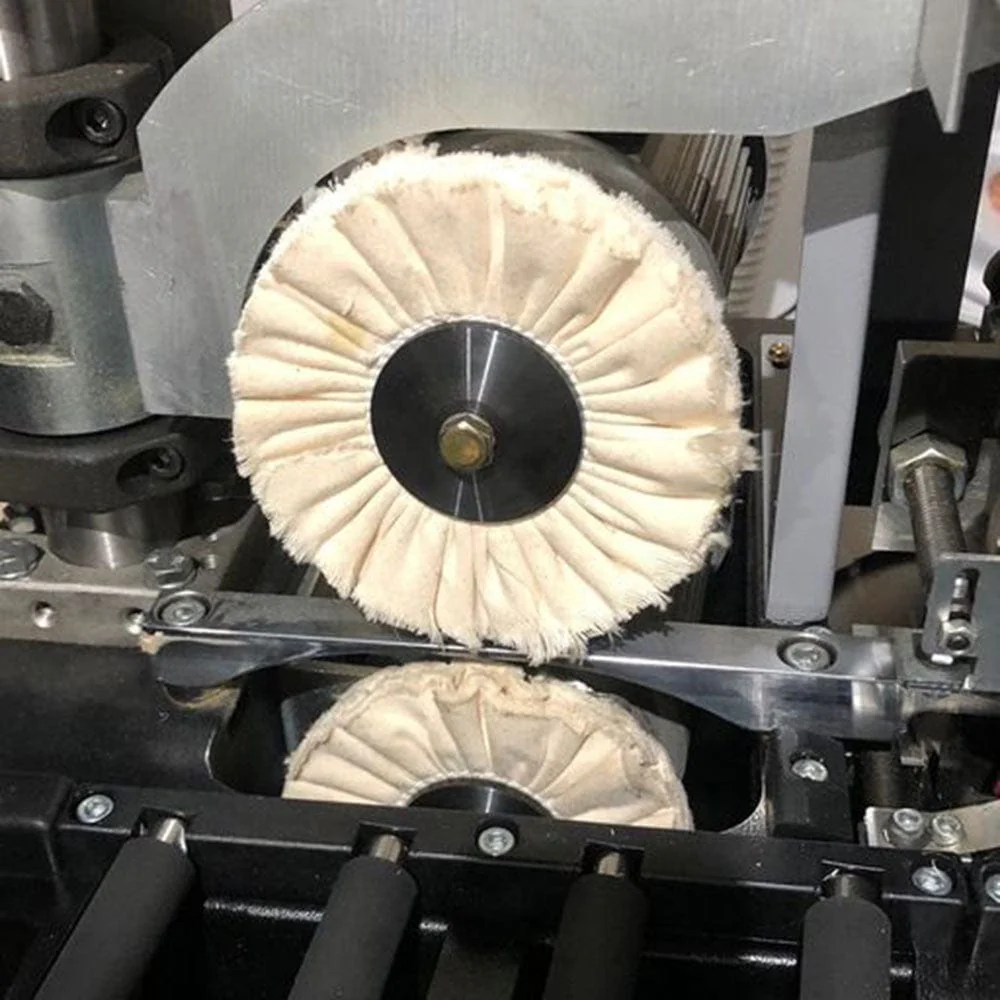

- Buffering: 0.12 x 2 - 1200mm - 3000 RPM
- Voltage: 380 - 440/50-60/3, 220-240/50-60/3
- Machine Dimensions: 112"L x 47"W x 51"H
- Machine Weight: 767 Ship Weight: 1023
Shipping / Billing Information
This product ships direct from the manufacturer:
- Your order will ship in approximately 5-7 business days.
- This product is considered special order. Your account will be charged when you place your order.
- Express or overnight shipping is not available for this product.
- Ships by Ground to the 48 contiguous states. Cannot ship to Alaska, Hawaii, PO Boxes, APOs, US Territories, Canada or other foreign countries.
Any suspected damage must be reported on bill of lading for all freight items
Return Information
If you have a return issue, contact Woodcraft Supply customer service @ 1-800-535-4482 for return details. All Returns must have a RGA or will be refused. Customer is responsible for all return freight.
Warranty Information
Maksiwa warranty's Power Tools for 2 years. If you have a warranty question, please contact Maksiwa Customer Service at 754/2276096
$13,200.00
