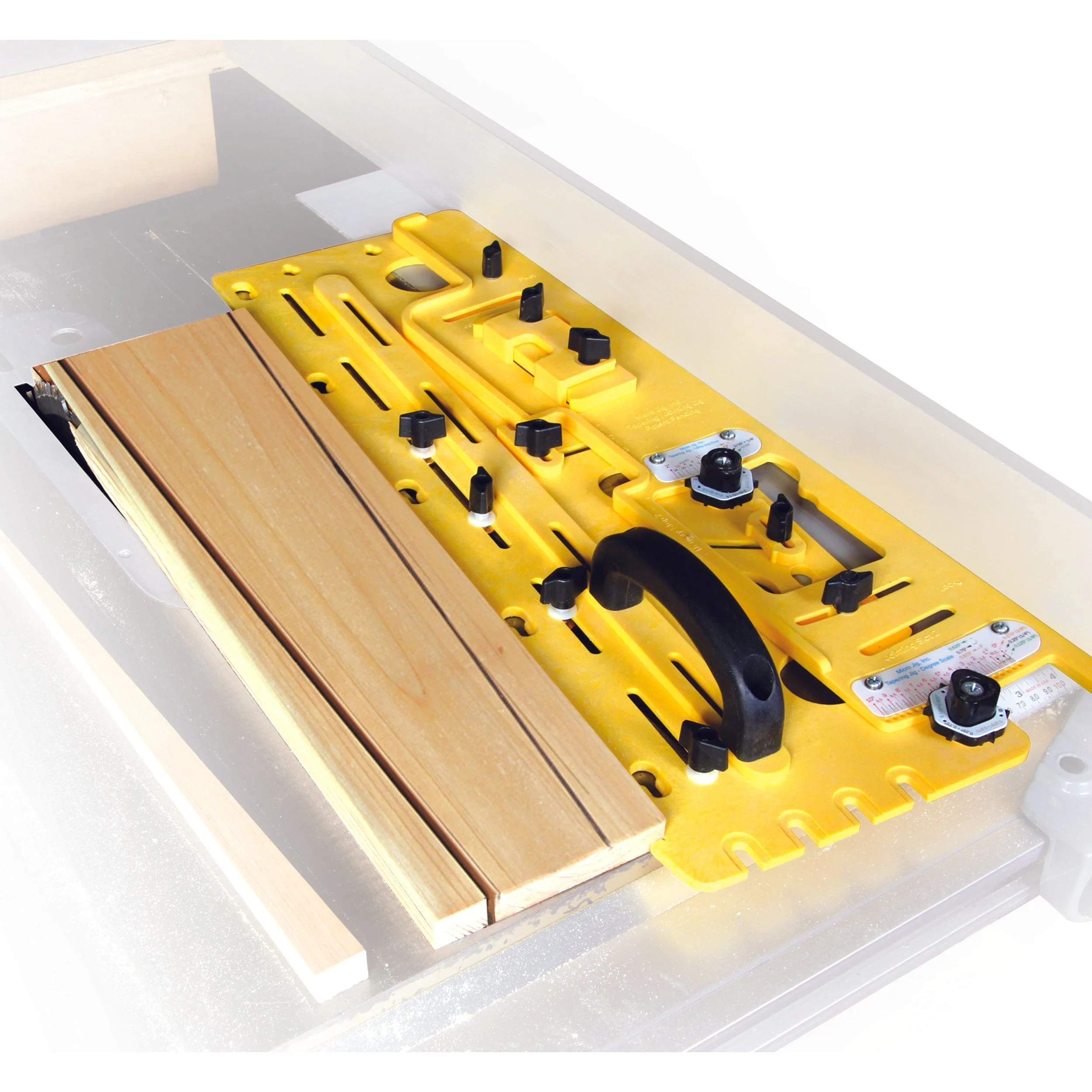

Microdial Tapering Jig

The Microdial Tapering Jig by Microjig® helps you achieve cutting edge tapers. You will be able to create tapered legs with up to eight tapered sides. Meanwhile, tapers can be cut from an infinite range between 0˚ to 10˚ with 1/8˚ incremental stops. You can also adjust tapers between 0 to 2 inches with 1/16 inch intervals. Once decided, the two adjustable dials then will lock into your preferred configuration, and lock the two MemoryLocks to allow easy repetitive cuts of the same taper.

Features:

• Use as a guide for edge jointing on a table saw and straight line ripping
• Versatile taper jig works with a table saw or a router table
• Cut 2-,4-,6- and 8-sided tapered table legs for signature detail
• Two independent MemoryLocks to preserve taper settings for repetitive cuts
• Allows for repetitve tapered cuts
• Enhanced precision when cutting edge tapers
• Works in tandem with the GRR-Ripper
• Made in the USA

Specifications:

• Infinite taper adjustment between 0° and 10° with positive stops at 1/8° increments
• Adjustable tapers between 0" and 2" per foot with positive stops at 1/16" per foot increments
• Model: TJ-5000

What's Included:

• (1) Microjig Microdial Tapering Jig
• (1) Quickstart DVD
• (1) Detailed instructional manual
• (1) Project Plan

Notes:

• Combine the Microdial with the GRR-Ripper Advanced Model (sold separately) to enhance your safety and woodworking. The addition of the GRR-Ripper will allow users to apply pressure in three dimensions: downward, inward, and forward; this will virtually eliminate kickback and should always be used when cutting narrow or small work pieces.
