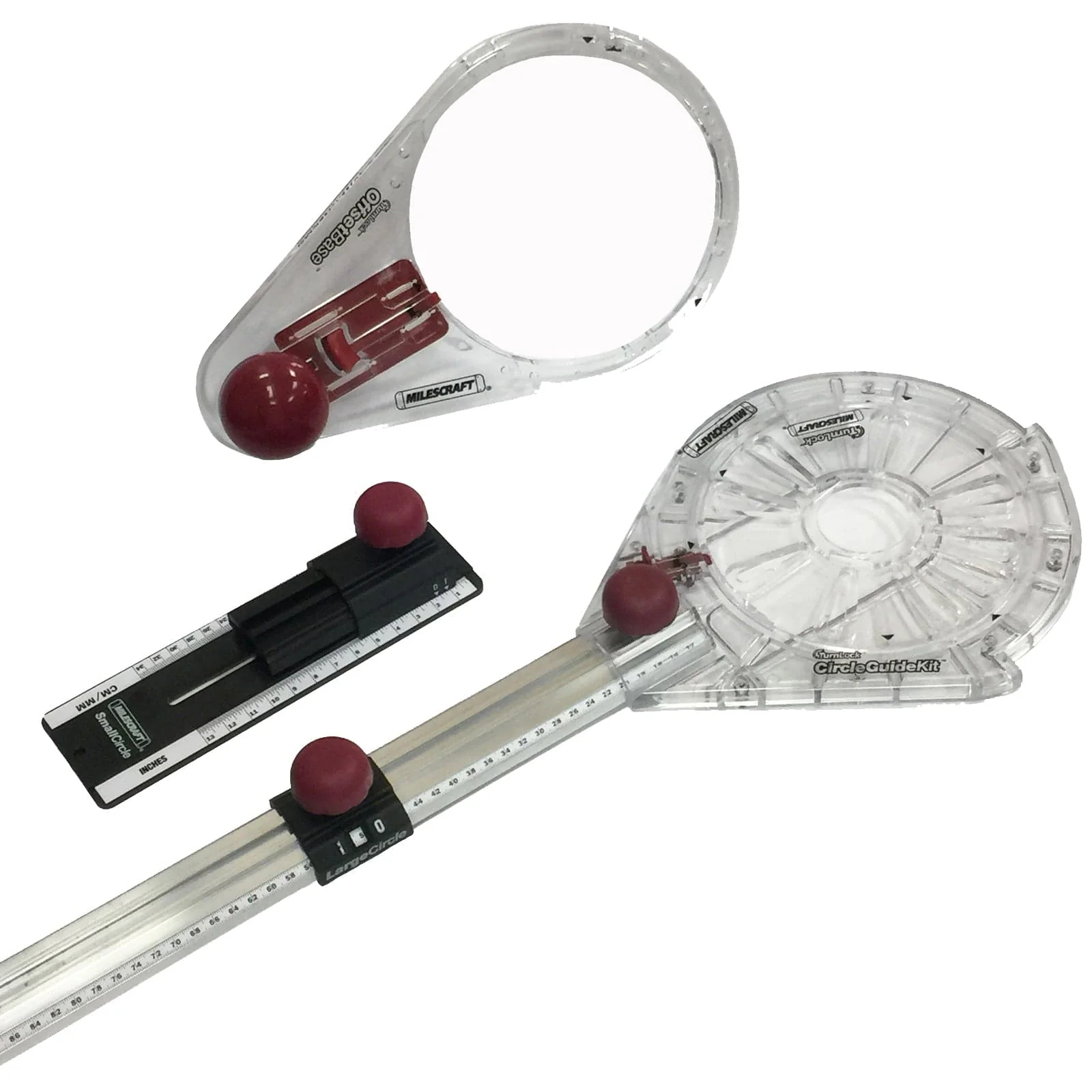

CircleGuideKit for Routing Small and Large Circles

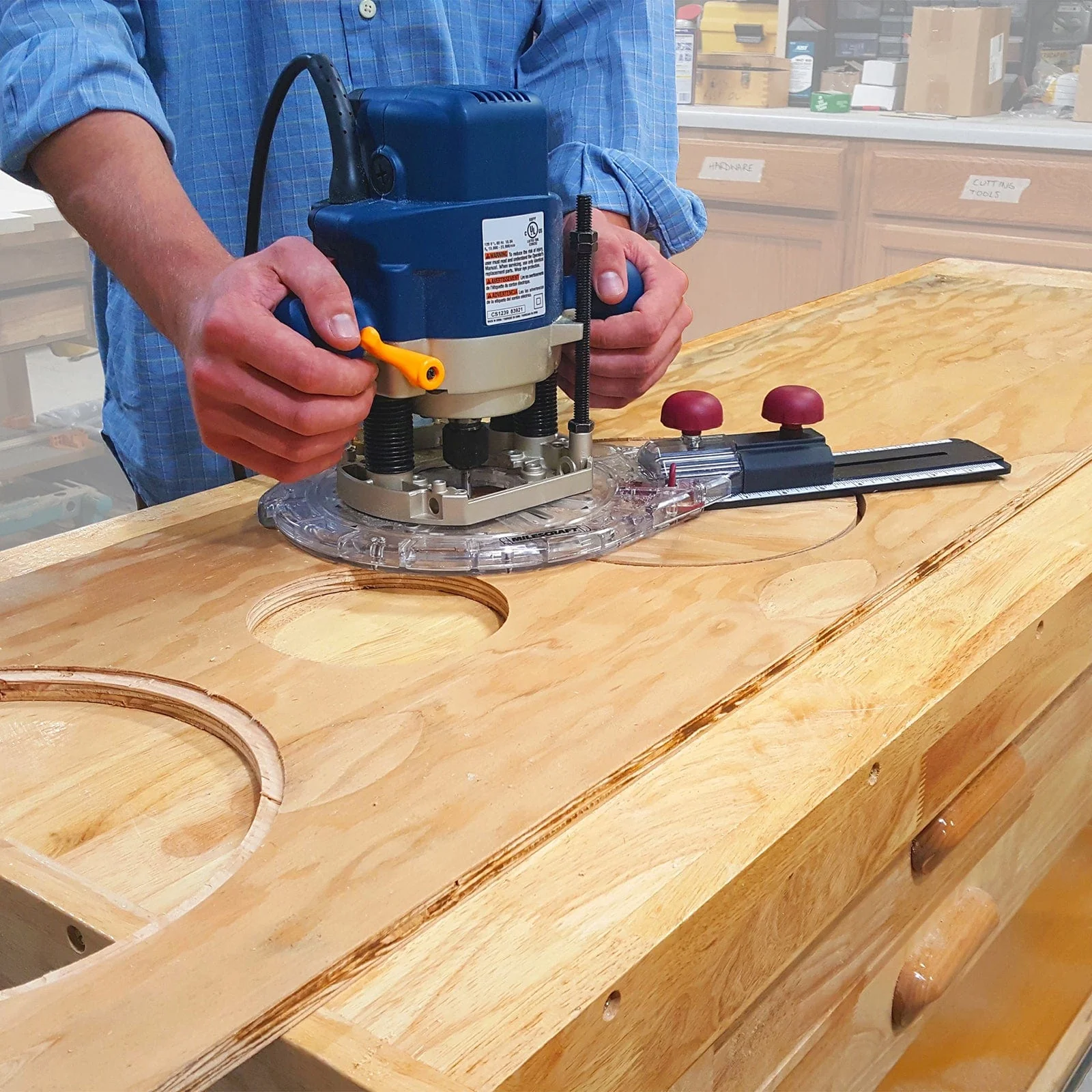

Cut small and large circles from 1-1/2” diameter to 52” diameter with the Milescraft® CircleGuideKit. With the included TurnLock™ base plate, this product is compatible with most routers. There is no longer a need for that homemade router circle jig, this circle guide kit does it all for you and includes everything you need to cut your desired circle. This router guide also includes a bonus Offset Base for finishing edges on your work piece. Best used with a plunge router.

Features:

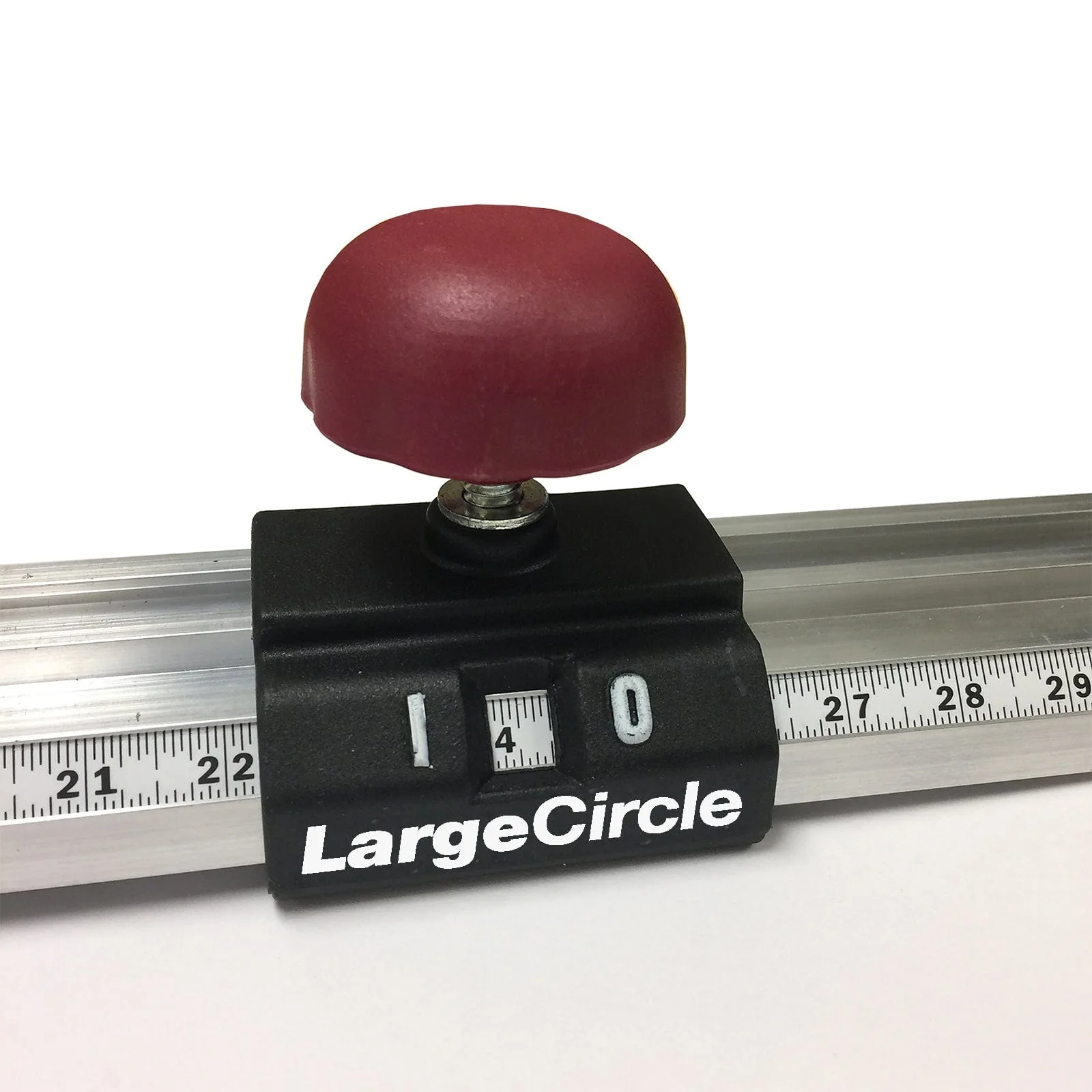

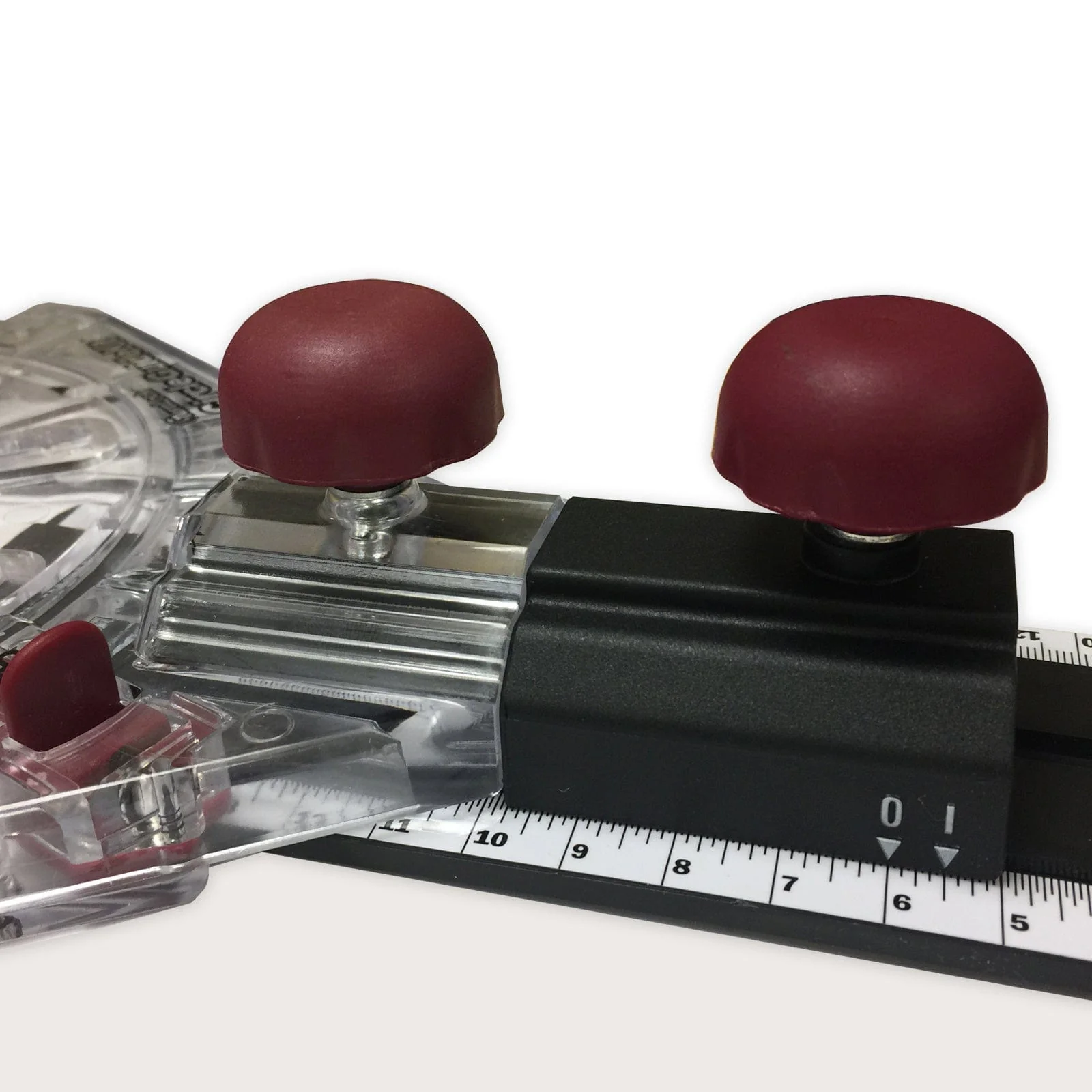

• Both the small and large circle jigs have built in metric and imperial scales, with an easy readout window for setting the diameter of both your inside and outside cuts
• Both the small and large circle jigs quickly and easily attach to the included TurnLock™ circle guide head

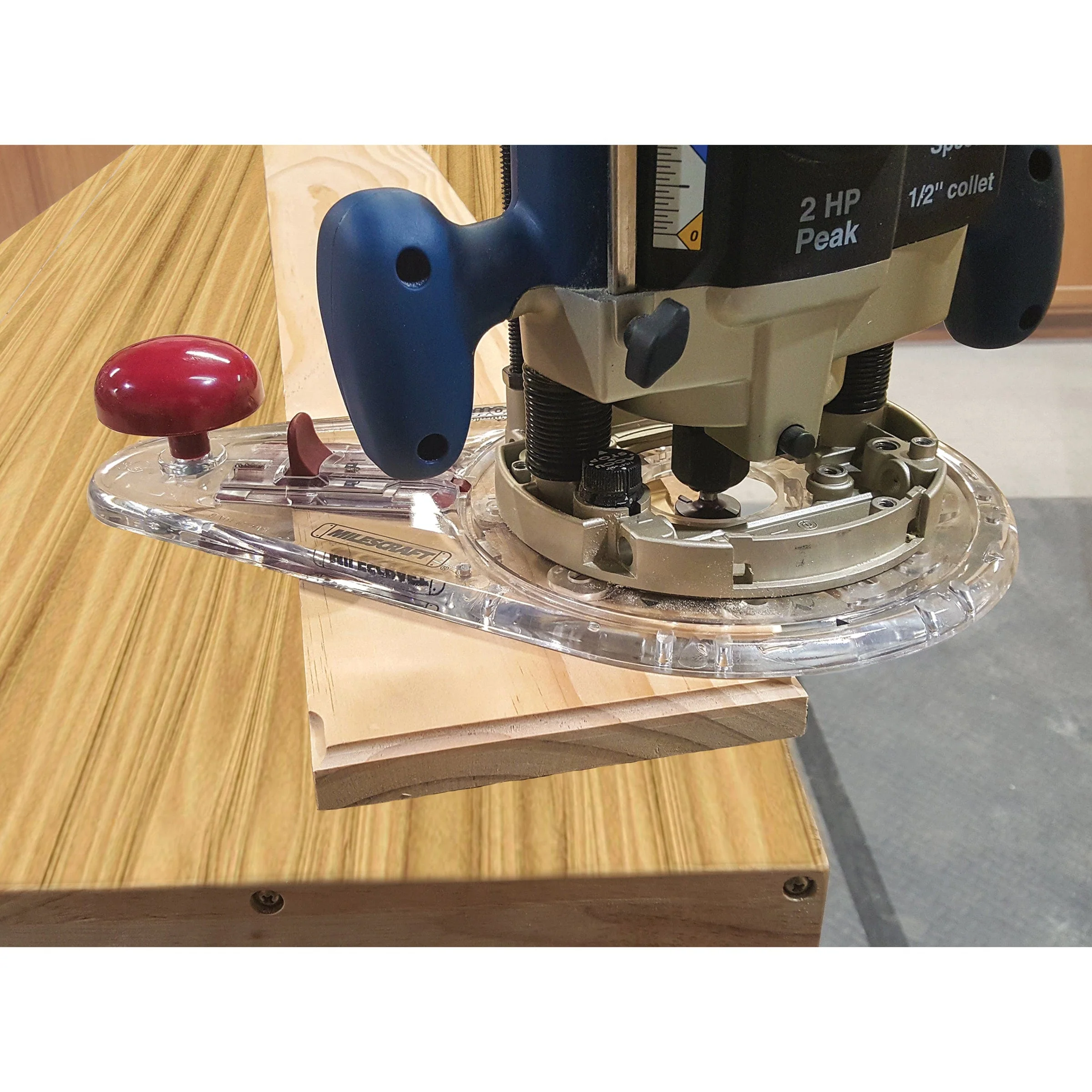

• Bonus 13" offset base provides added stability when finishing the edges on your work piece using your router
• Offset base has an oversized handle knob that is easy to grip providing superior control of your router
• Equipped with the patented TurnLock™ technology allowing for fast tool-free guide bushing and router attachment exchanges
• Thumb-activated lock/release mechanism enhances speed and safety when changing tools
• TurnLock™ base plate accepts all Milescraft bushings and others, with the included top-hat adaptor bushing

Specifications:

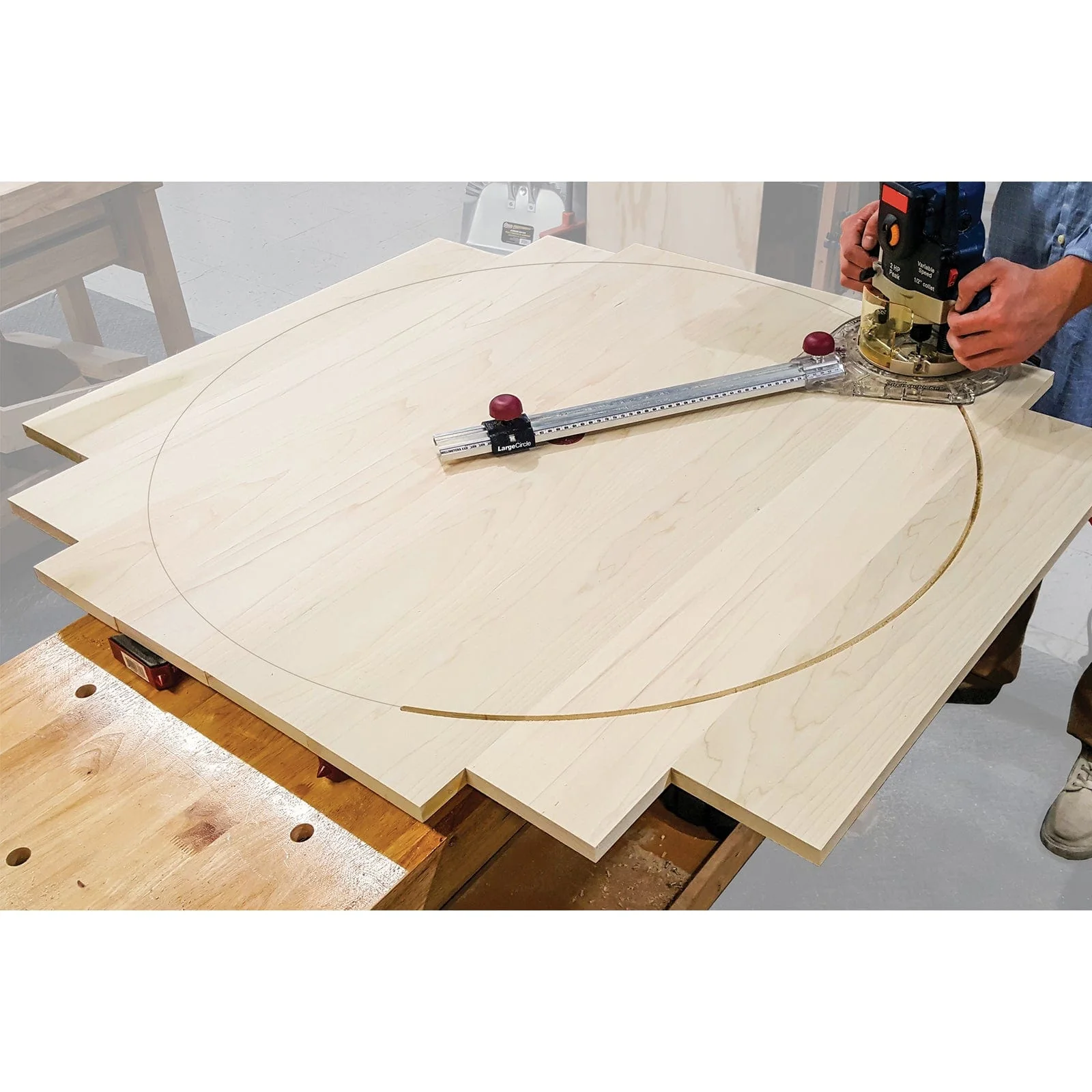

• Large Circle Jig: Cuts circles from 10" to 52" in diameter
• Small Circle Jig: Cuts circles from 1-1/2" to 12" in diameter
• Bushing: 5/8" Long Metal Nose Bushing
• Router Bit: 1/4" Straight Bit with 1/4" shank
• Drill Bit: 1/8" Brad Point Drill Bit
• Scales on Ruler: 1/16" Increments
• Material: Durable polycarbonate material and metal

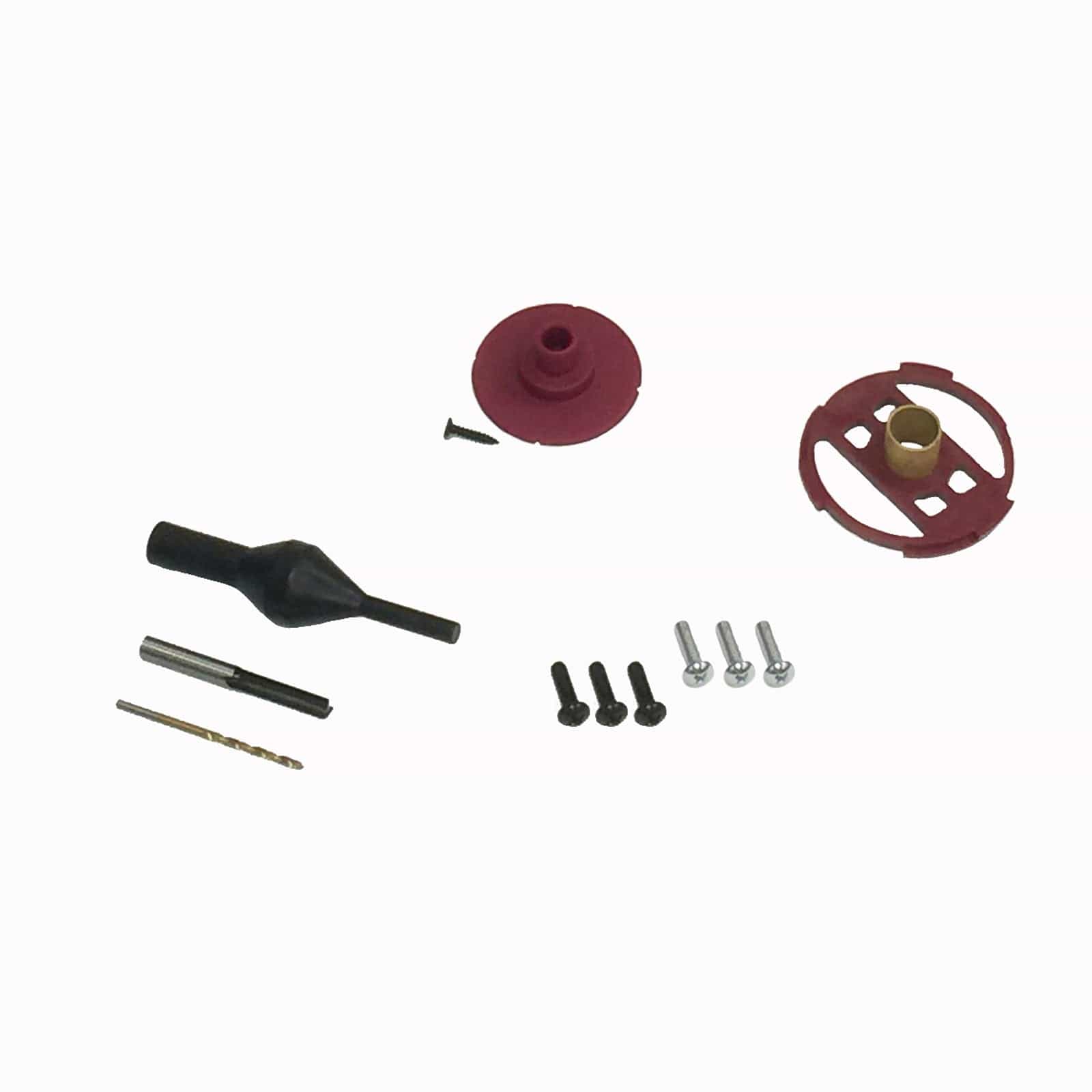

What's Included:

• (1) Small Circle Jig
• (1) Large Circle Jig
• (1) Offset Base
• (1) TurnLock™ Base Plate
• (1) 1/4" Straight Router Bit
• (1) Drill Bit
• (1) Centering Pin
• (1) Bushing
• (1) Mounting Hardware
