3HP Water Cooled Spindle System
This spindle is ultra-quiet, made with long-life German-made precision bearings, and designed for harsh environment operations. Operates on standard 110V AC and will plug directly into any standard wall socket (requires 15-amp circuit). The 3hp water-cooled spindle kit offers a range of impressive attributes that make it stand out from other options in the market. One of the most notable features of this kit is its 3hp spindle with a digital interface. This powerful spindle allows for precise and efficient cutting, making it suitable for various CNC projects. This essential also features auto start and stop with the ability to control motor speeds directly within the Vectric software (Requires 10.5 or higher). Kit includes everything needed to work on CNC Shark HD5xx and HD6xx series machines. NOTE: THIS KIT ONLY FITS HD5xx and HD6xx SERIES MACHINES – YOU MUST HAVE VECTRIC 10.5 OR HIGHER
Features:
- 1 Year Warranty
- USA based Tech Support
Specifications:
- 3hp (2.2Kw) Liquid Cooled Brushless Spindle.
- 24,000 RPM max 110V 13 amp inverter
- Aluminum Spindle Clamp with mounting hardware for CNC Shark HD5xx and HD6xx series machines.
- Pre-programmed VFD – ready to run. Features Next Wave CNC's proprietary digital interface from controller to VFD. This remotely controls Spindle Power ON/OFF and Spindle Speed (RPM) via G-Code.
- Er20 Collet system including 1/4″ and 1/2″ shank collets
- 21mm & 30mm wrenches
- Next Wave CNC’s proprietary digital interface from controller to VFD which remotely controls both Spindle Power ON/OFF and Speed (RPM) via G-Code
- 3 1/2 gallon bucket with dust resistant screw-on lid and wire grommet
- All coolant hoses and fittings with a Coolant flow meter to ensure water movement
What's Included:

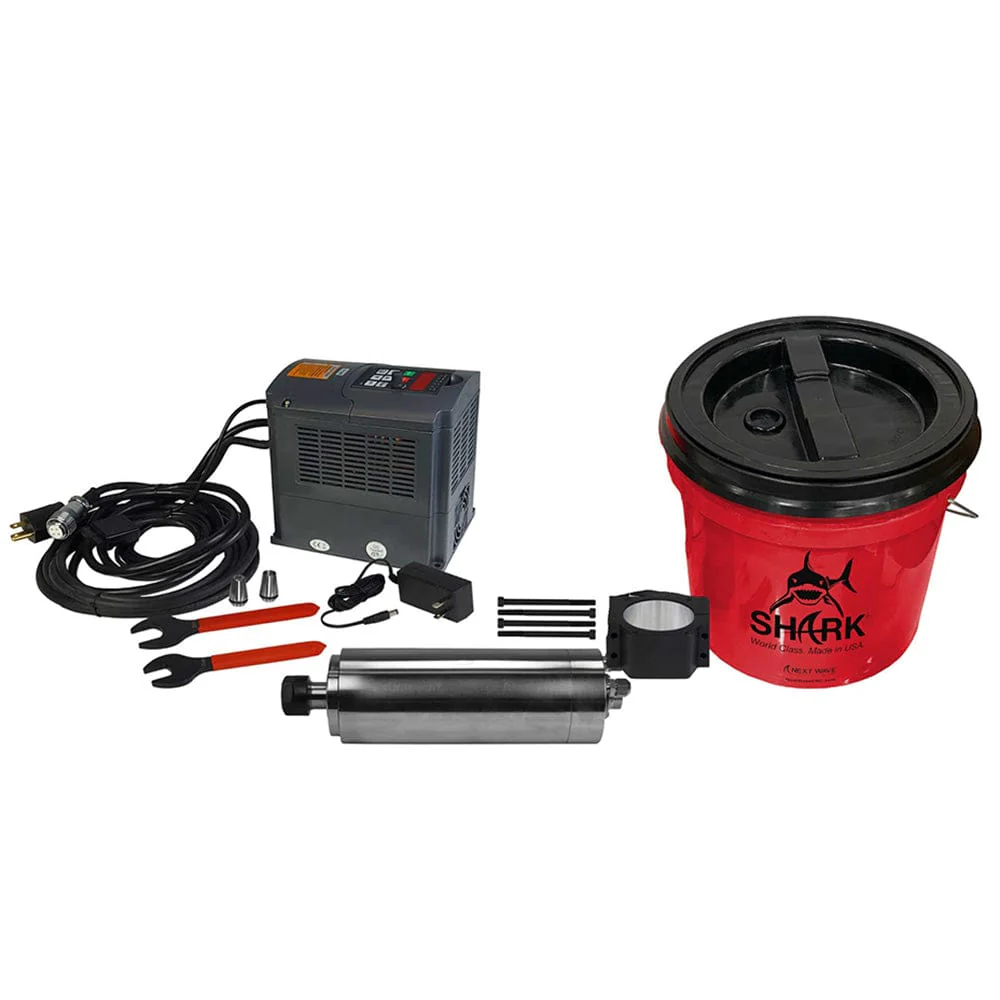

- (1) Next Wave 3HP Water Cooled Spindle System
Shipping / Billing Information
This product ships direct from the manufacturer:
- Your order will ship in approximately 5 business days.
- This product is considered special order. Your account will be charged when you place your order.
- Express or overnight shipping is not available for this product.
- Ships by Ground or Freight to the 48 contiguous states. Cannot ship to Alaska, Hawaii, PO Boxes, APOs, US Territories, Canada or other foreign countries.
Return Information
Next Wave products can be returned if they are in unopened, resaleable condition. You will be responsible for a 25% restocking fee. If you need help initiating a return, please contact Woodcraft Customer Service at 1-800-535-4482.
