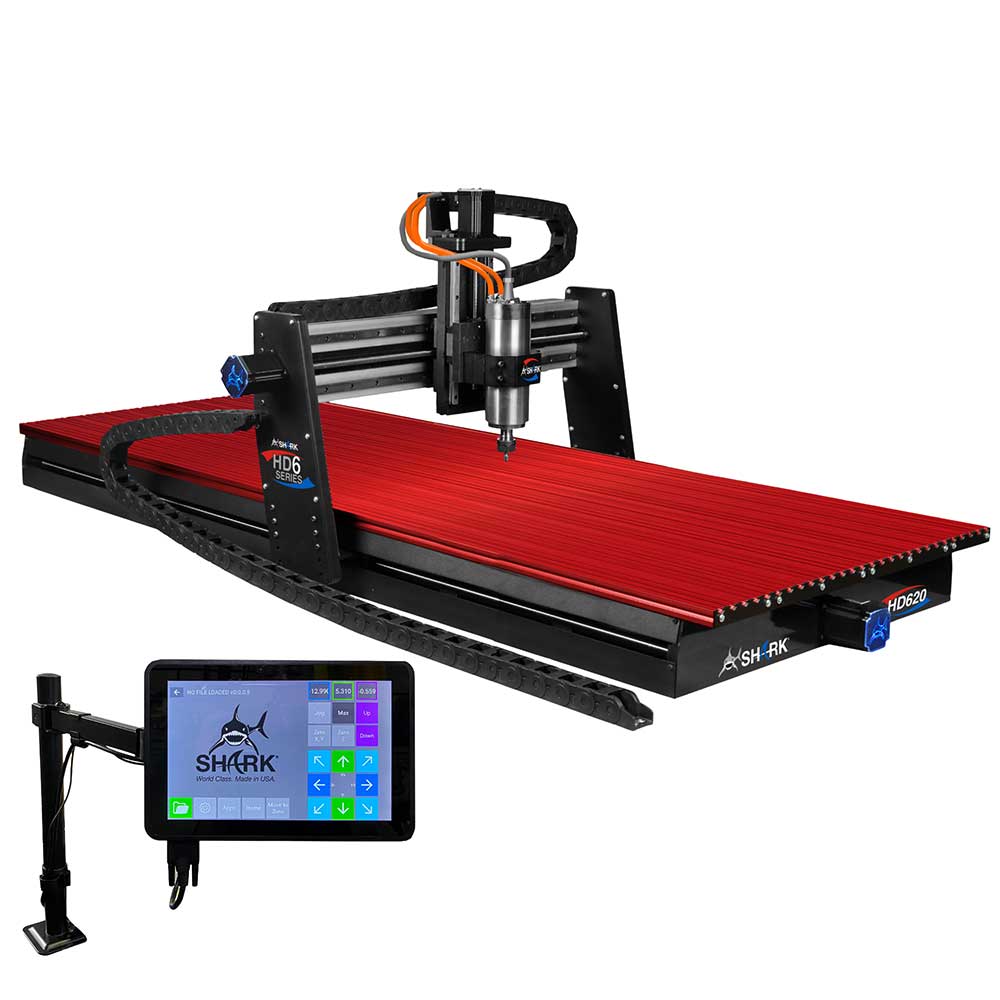

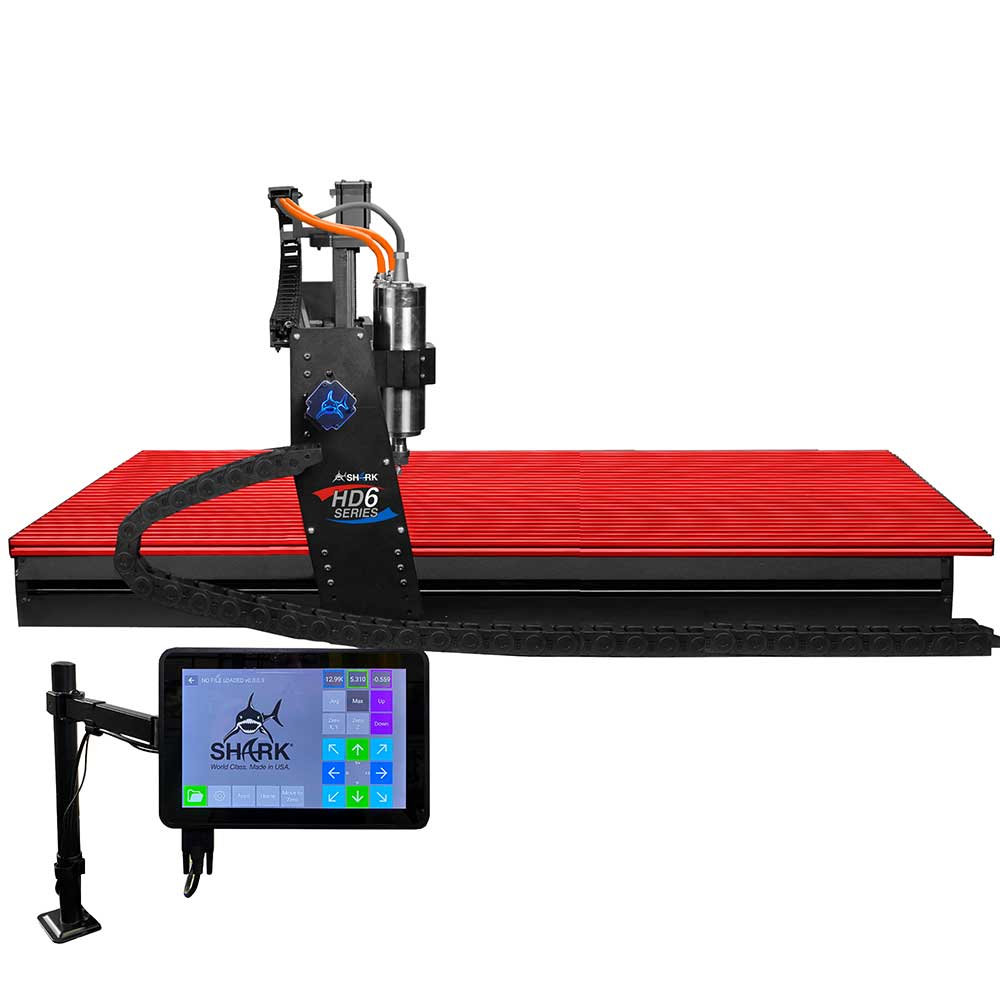

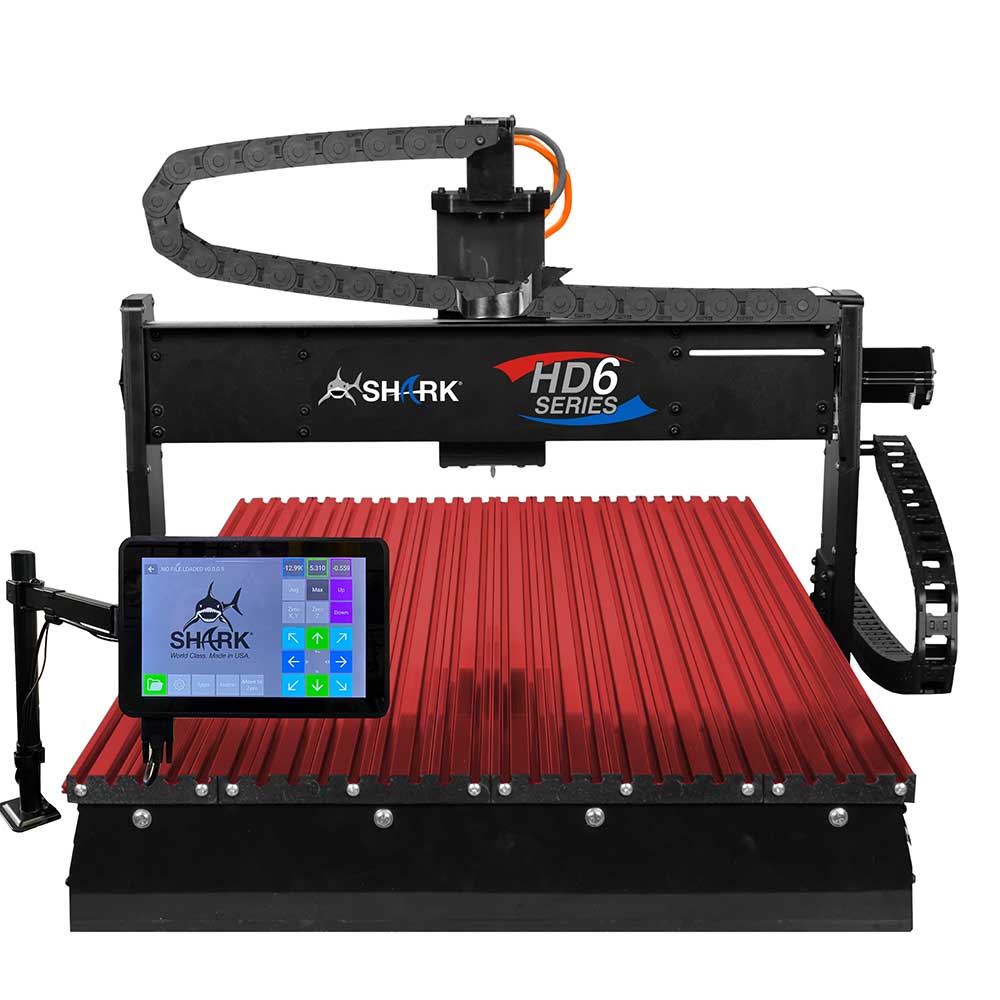

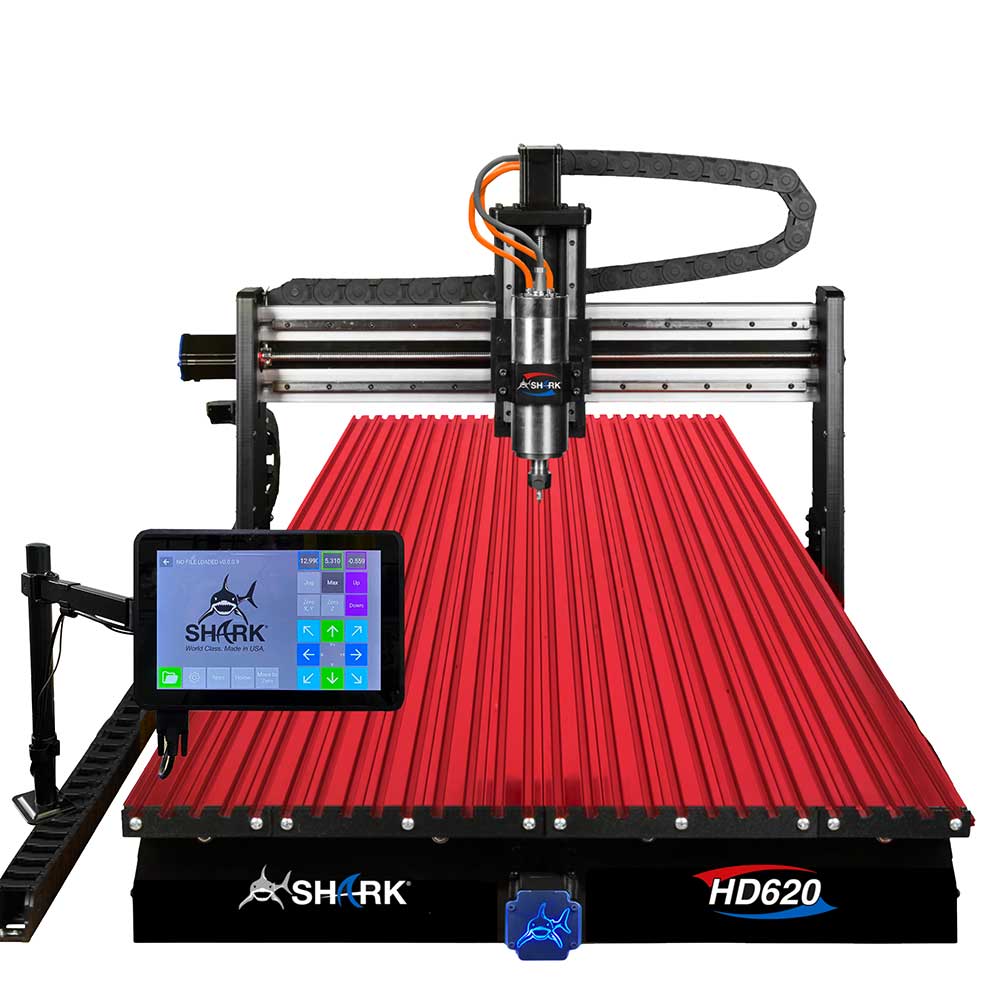

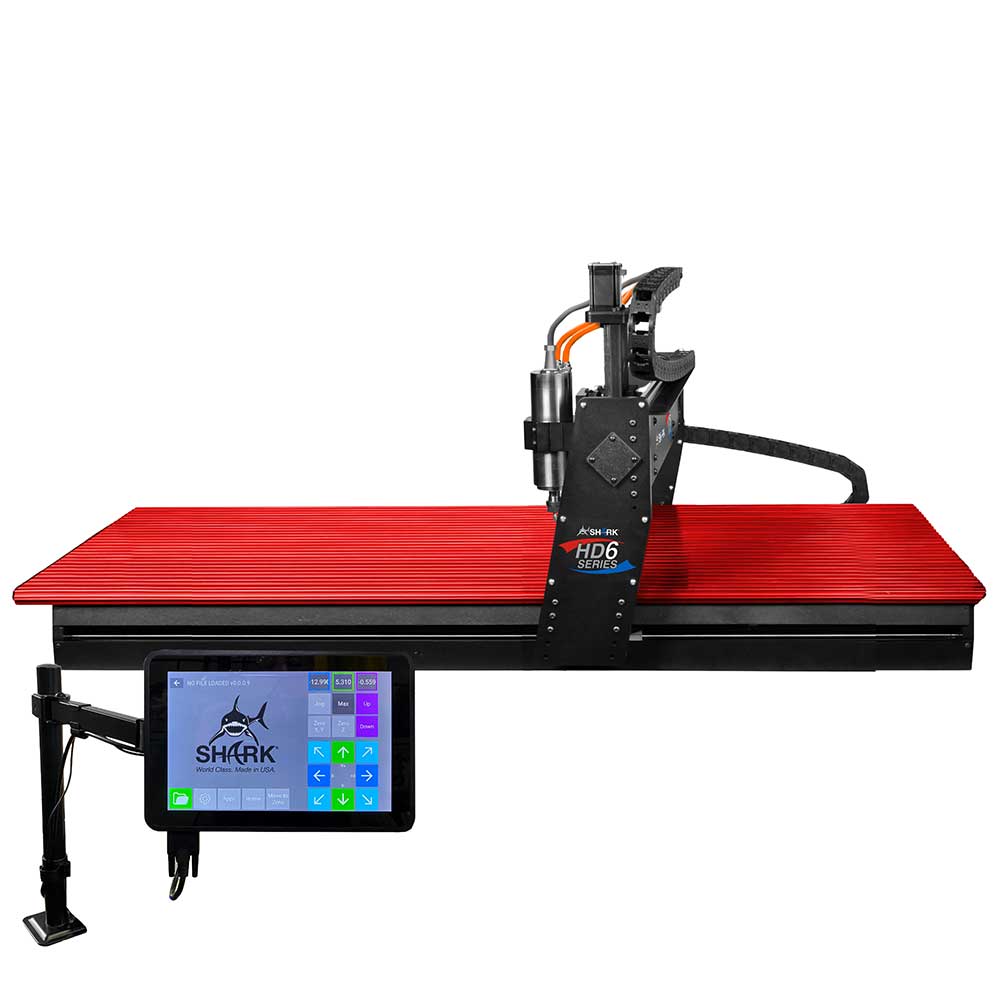

Shark HD620 PRO CNC Machine

Building on the proven success of the HD5 Models, the new Shark HD620 Pro ® Standard is designed to excel in both home and workshops and demanding production environments, delivering powerful, next-level performance.

From hobbyists to pros, ease of use of the SHARK® HD620 Pro CNC Machine makes it the go-to woodworking tool for all CNC users. Regardless, if you need custom parts, joinery, precision drilling functions or all things decorative, the Shark HD620 Pro is built to do all and last for many years of use. Utilize the included 3D carving capability and the 3D model library to create beautiful relief carvings, intricate inlays and exquisite, detailed engravings with ease.

The HD620 Pro can be pendant- or computer-controlled to suit your needs. The Pendant interface eliminates the need for a computer at the machine by using the included VCarve Desktop Design software, create your project and then transfer to a USB drive. For more challenging projects and extended versatility, you can run the Shark HD620 Pro from your computer taking advantage of the exclusive patented Virtual Zero Unlimited programming that will adjust your design to fit curves and angles that would be virtually impossible on other brands of machines. (Computer and flash drive not included). Put the power of the USA Made Next Wave CNC Shark® HD620 Pro® to work for you today.

Features:

• 28" x 63" table, robust linear gantry rails
• 3 HP Digitally controlled precision Air Cooled Spindle
• 10.1″ Android based color enhanced touch screen control system
• Can be controlled with the touch-screen pendant for convenience, and to keep your computer away from the dust - just transfer your project to a USB drive and plug it into the LCD pendant
• Can also be computer-controlled to take advantage of the Virtual Zero Unlimited, which adjusts your design to fit curves and angles that would be virtually impossible on other brands of machines (computer and flash drive not included)
• Perfect for projects such as carving plaques, signs, ornamental boxes, and precision parts machined from wood, soft metals, or plastics
• Aluminum interlocking slotted table track for customizable clamping
• Includes the latest VCarve Desktop Design software incorporating Cut 3D functionality, Rotary compatible, and Vector Art 3D Sampler Pack
• Ships fully assembled
• Made in the USA

Upgrades:

• All-New Gantry Design – Engineered for superior accuracy and long-term reliability.
• Upgraded Lead Screws – Precision components that allow for higher cutting speeds.
• Larger Drag Chain – Accommodates both cables and spindle hoses for a cleaner, more organized workspace.
• Redesigned Aluminum X-Box – Improved access for tramming and maintenance.
• Upgraded 36V Controller Electronics – Delivers more power to the motors, enabling speeds up to 600 IPM

Specifications:

• Table Dimensions: 28" x 63"
• XYZ Travel: 50" x 25.75" x 7"
• Overall Dimensions: 36-1/4" W x 63" L x 24-1/2" H

What's Included:

• (1) Next Wave Shark® HD620 PRO CNC
• (1) 3 HP Digitally controlled precision Air Cooled Spindle
• (1) 10.1″ Android based color enhanced touch screen control system
• (1) Aluminum router mount (see list of compatible routers)
• (1) Color touch-screen pendant controller system
• (1) 3/8'' carbide V-Groove bit (colors may vary)
• (2) Hold-down clamps (colors may vary)
• (1) Latest edition of VCarve Pro software with Cut 3D functionality
• (1) Ready2Control software package
• (1) CNC Shark® control panel operating software with Virtual Zero Unlimited

Notes:

• Requires a PC computer with USB 2.0 port (not included)
