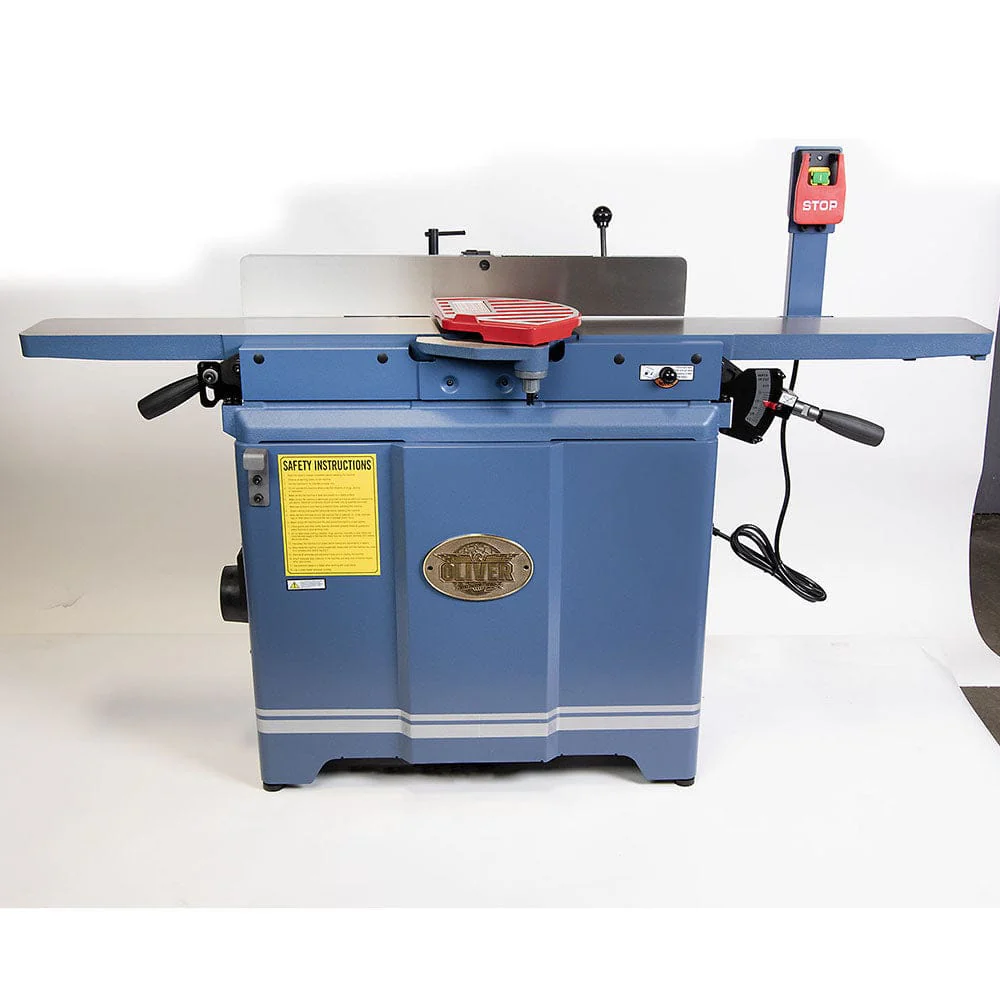

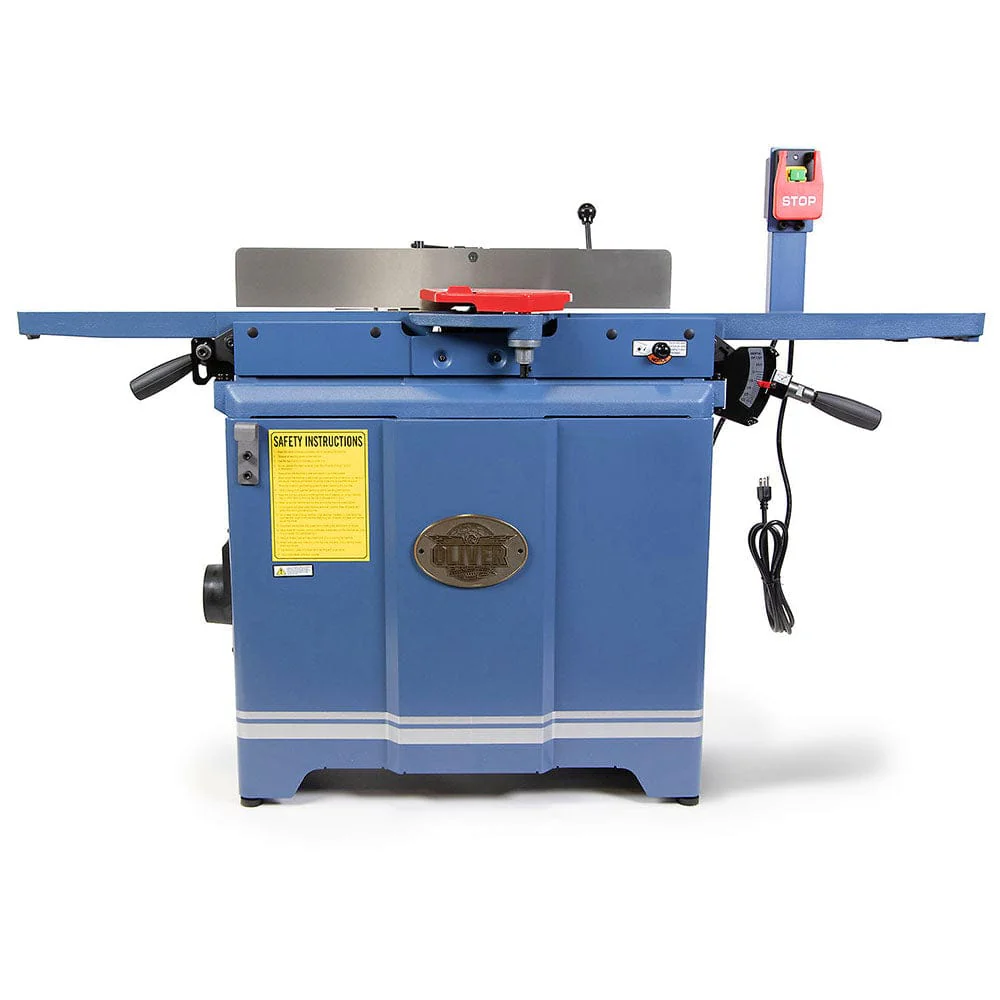

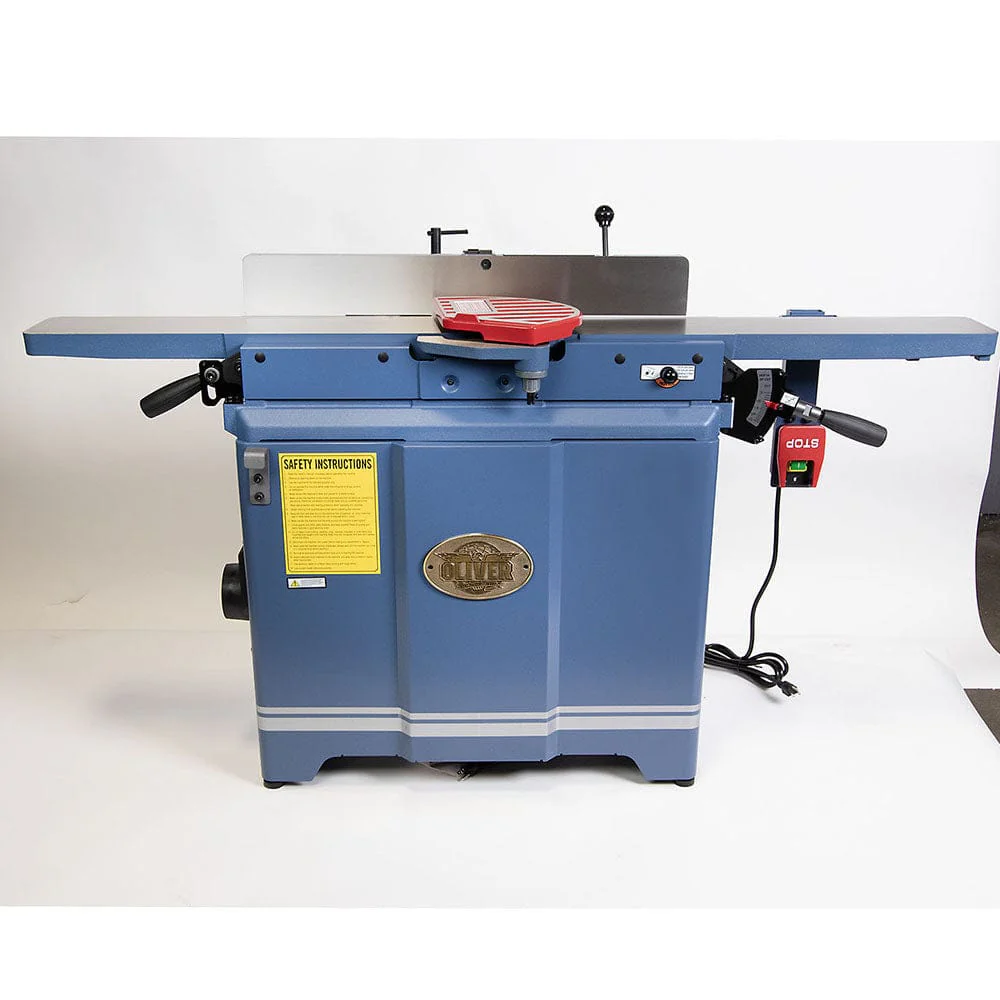

The Oliver 4225 Jointer has everything you'll need in a 6" jointer. Power, precision, and a true Oliver HCX helical cutterhead (not a linear spiral design) with 4-sided carbide inserts providing excellent cut quality. This jointer is truly in a class by itself for its size.
Features:
- Extra-long precision ground tables provide a stable work surface
- Parallelogram design provides smooth accurate cuts
- Cast iron frame offers stable table support

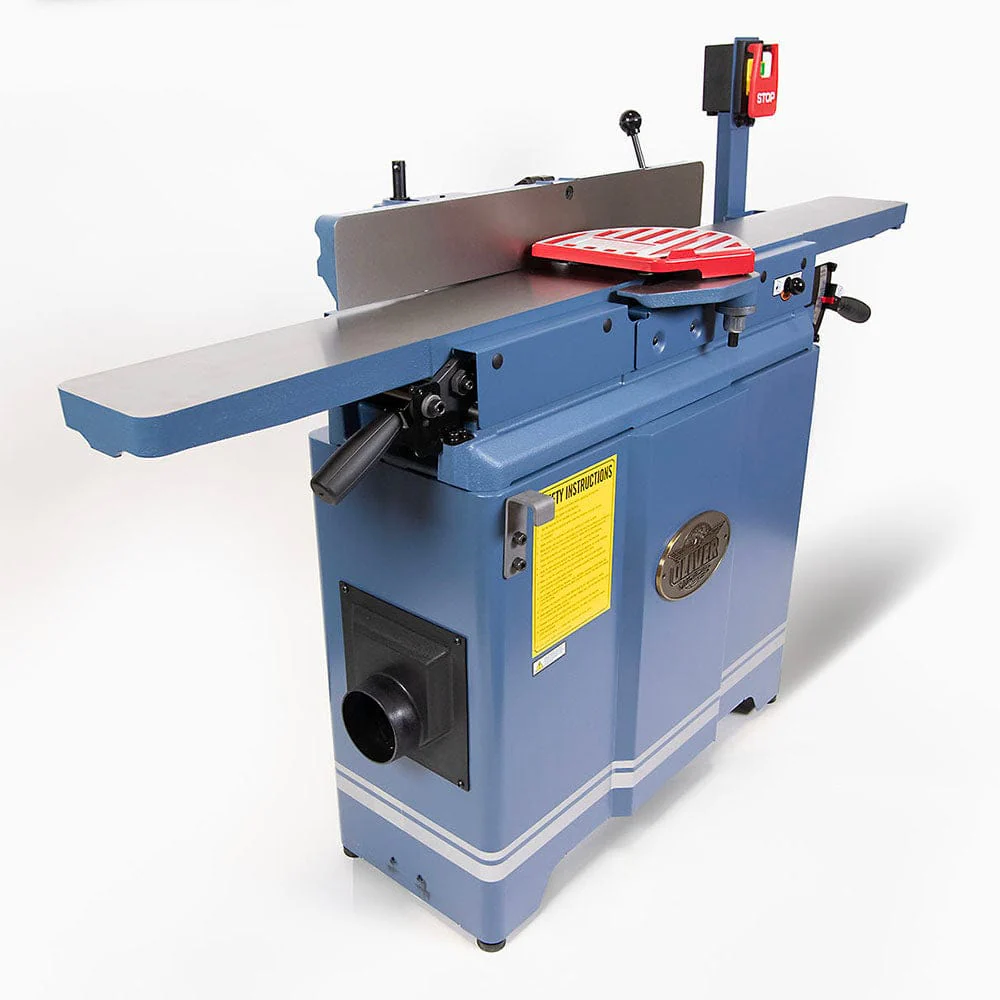

- Fully enclosed cabinet with 4" port for superior dust management
- Cabinet includes push pad storage
- Oliver HCX Helical cutterhead with premium carbide inserts
- 4-sided cutting inserts are indexed and easy to replace

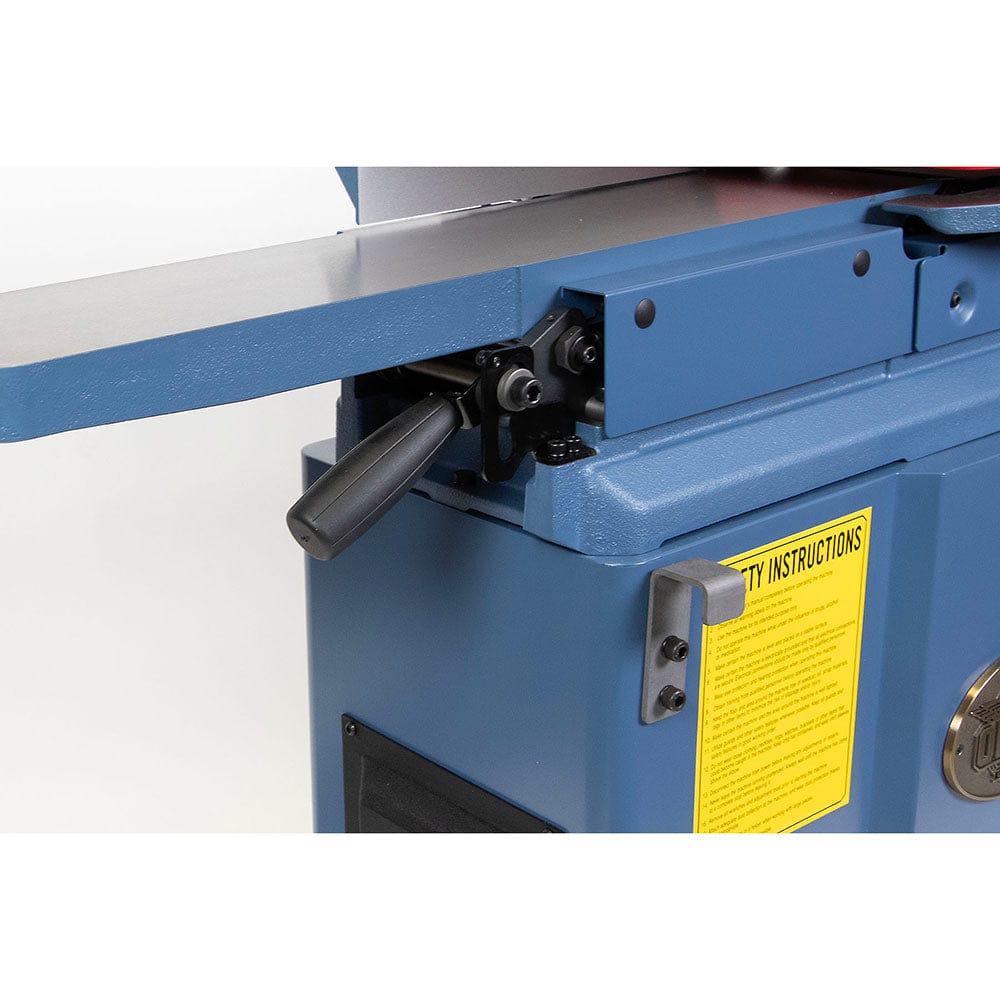

- Lever controlled infeed and outfeed table adjustment allows quick set-up
- Long precision ground fence tilts up to 135° with positive stops at 45° and 90°
- Easy to read depth of cut gauge

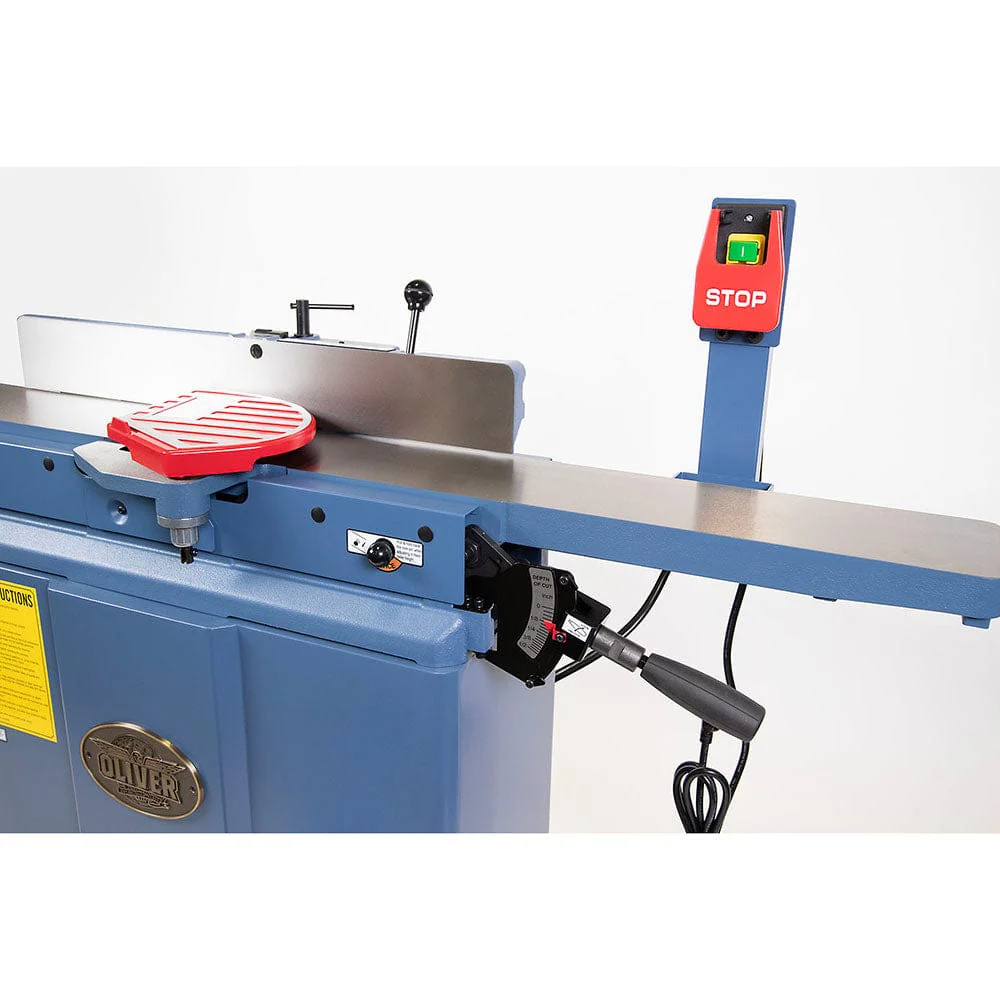

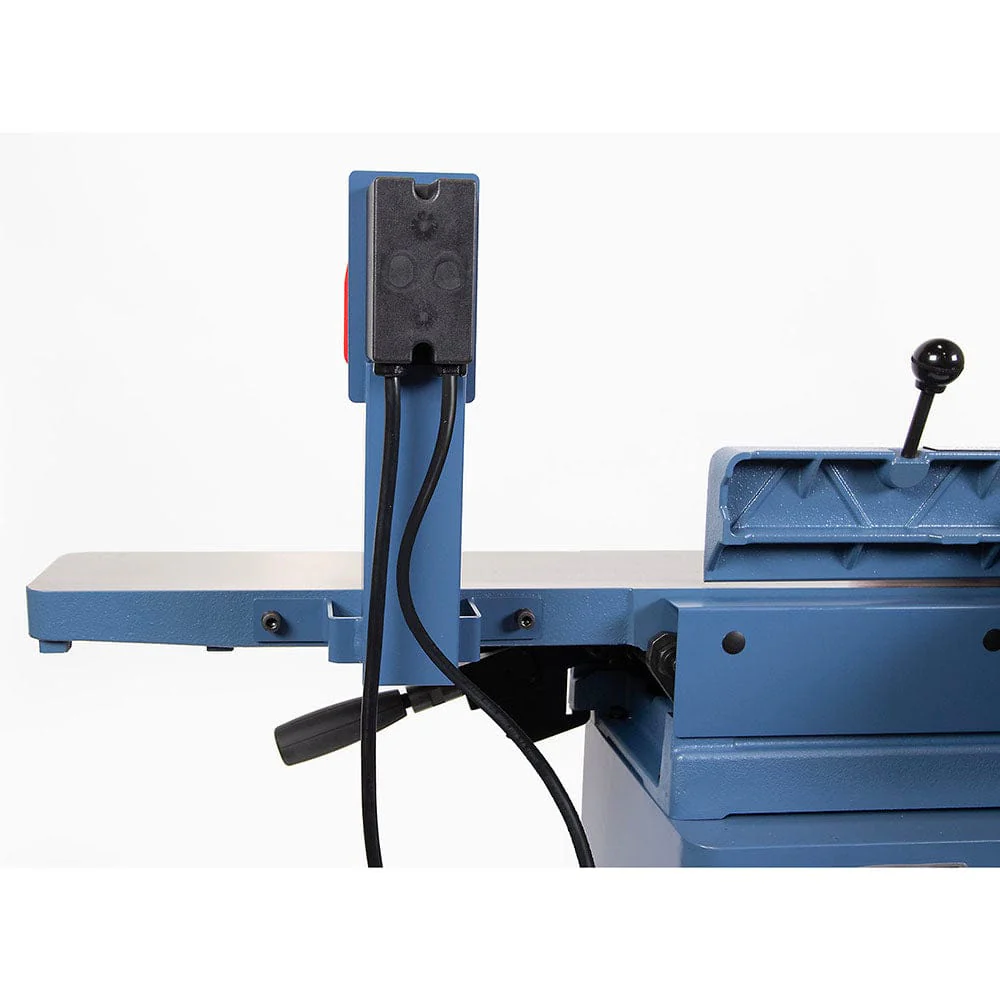

- Large, lockable pedestal mounted paddle on/off switch for added safety and user ease
- Powerful 1.5HP 1Ph 115V/230V TEFC motor pre-wired 115V
- Poly V-belt drive efficiently delivers power to the cutter head
- CSA Listed
Specifications:
- Model Number: 4225.215
- Stock Number: 4225.215 (1-1/2" HP, 1Ph, Helical Cutterhead)
- Infeed Table Travel: 1/2"
- Cutterhead Speed: 5,500 RPM
- Number of Knives (helical): 28 inserts
- Maximum Depth of Cut: 1/8"
- Rabbeting Capacity: 1/2"
- Dust Port Diameter: 4"
- Table Dimensions: 60-1/4" L x 6" W
- Table Height: 31-1/4"
- Fence Dimensions: 29” (L) x 3-7/8” (H)
- Fence Tilts: 90°, 45°, 135°
- Positive Stops: 90° and 45°
- Motor: 1.5HP 1Ph - 115V/230V (pre-wired 115V)
- Net Weight: 240 lbs
- Gross Weight: 410 lbs
What's Included:
- (1) Oliver 4225.215 6" Jointer
- (10) Torx screws for inserts
- (1) Box of 5 cutterhead inserts
- (2) Push Blocks
