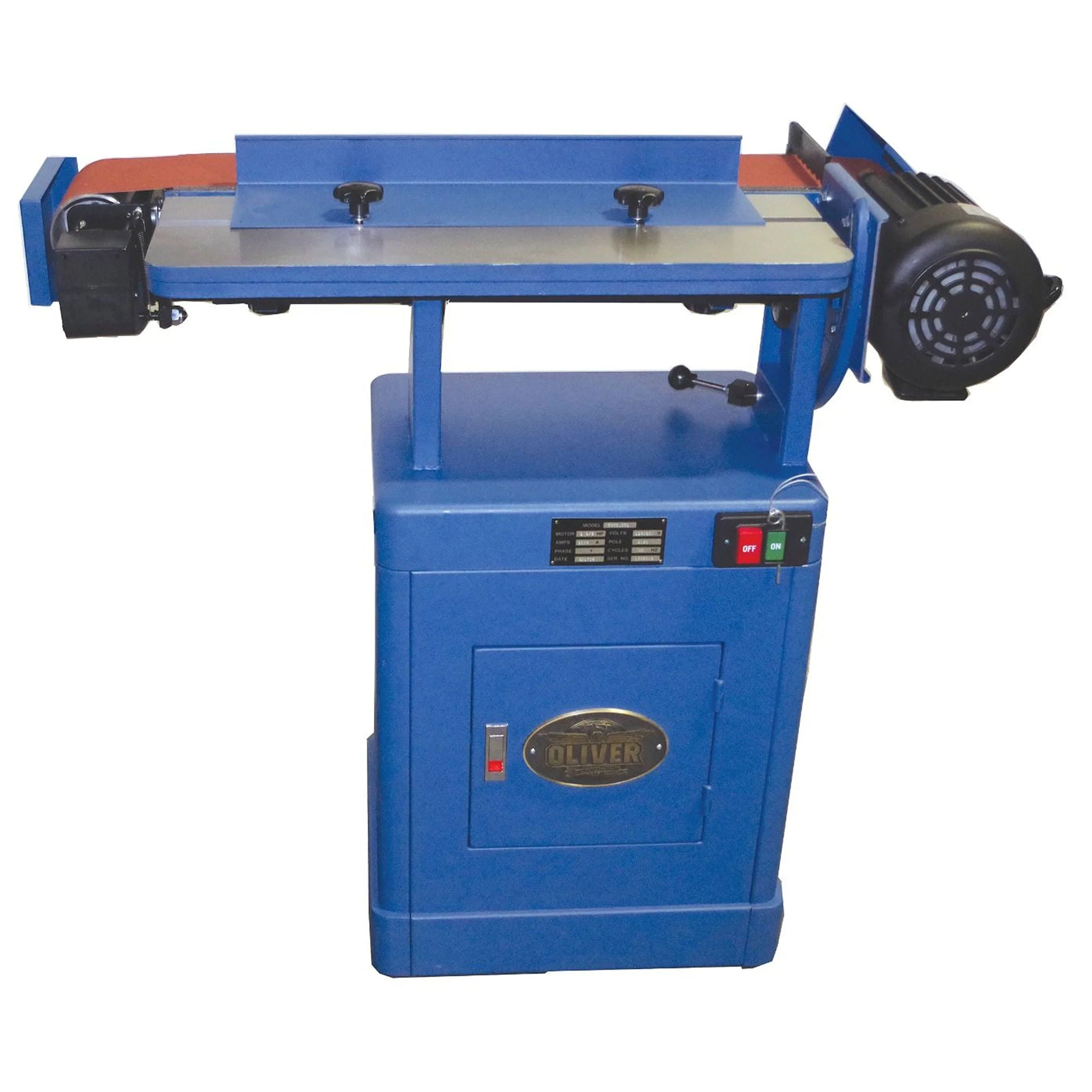

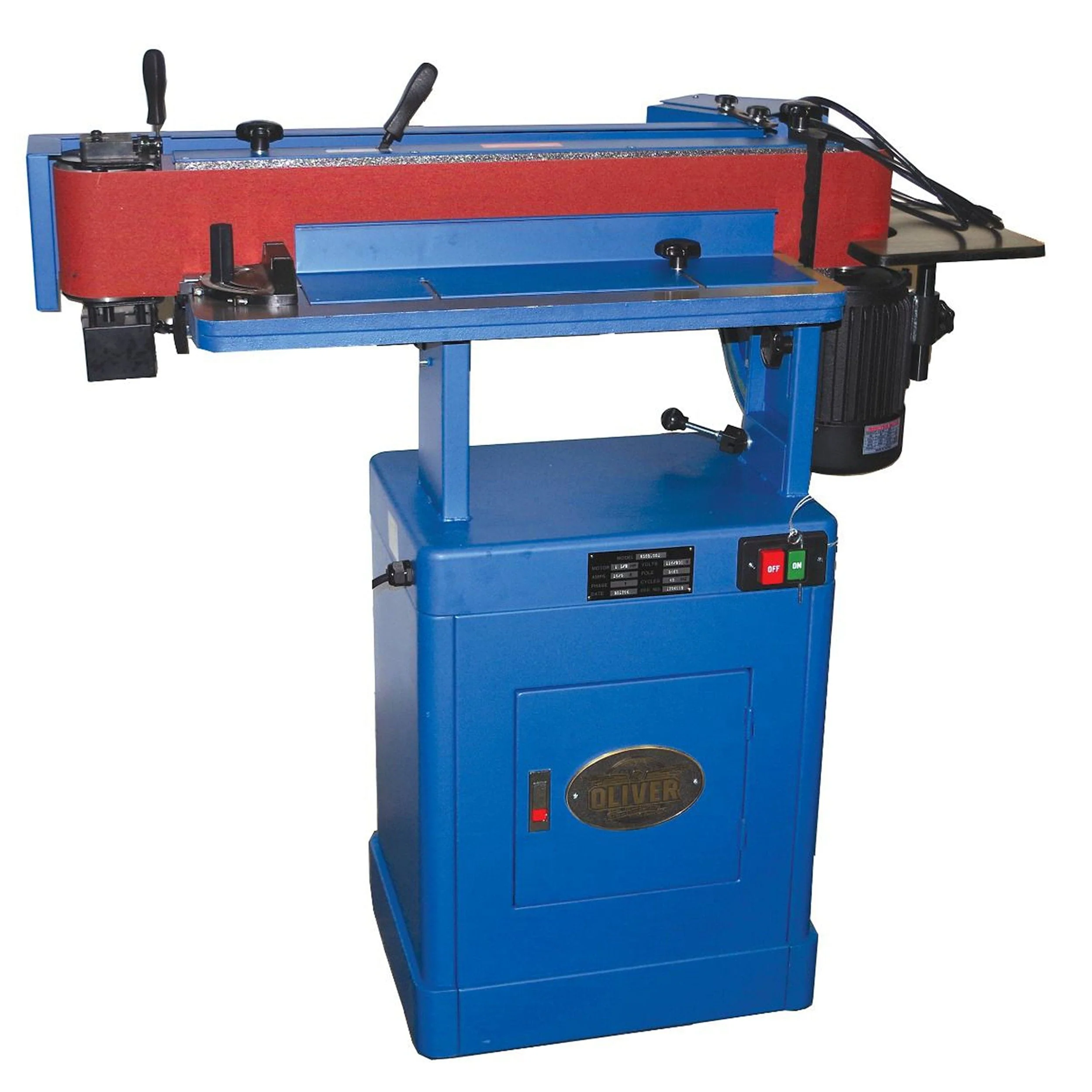

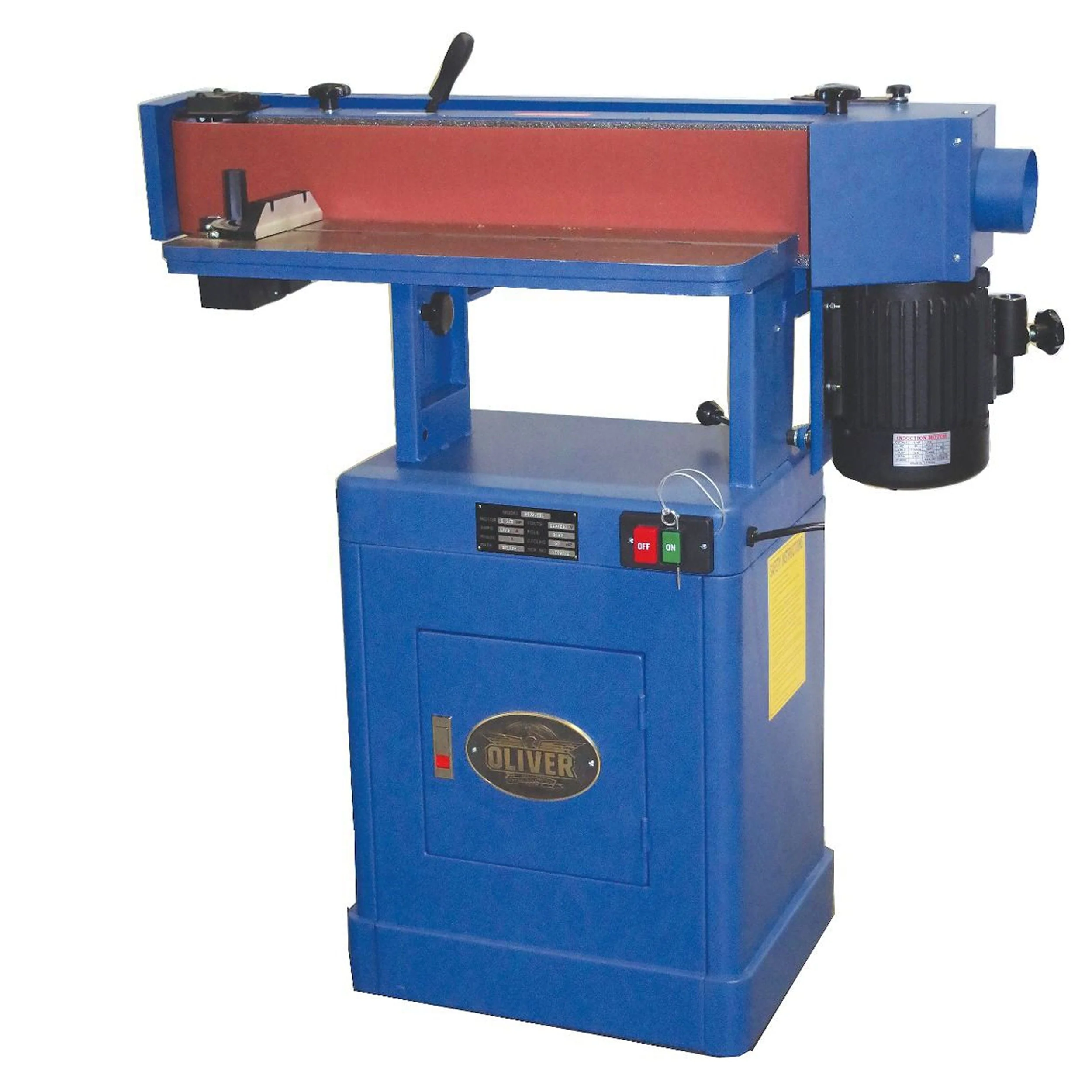

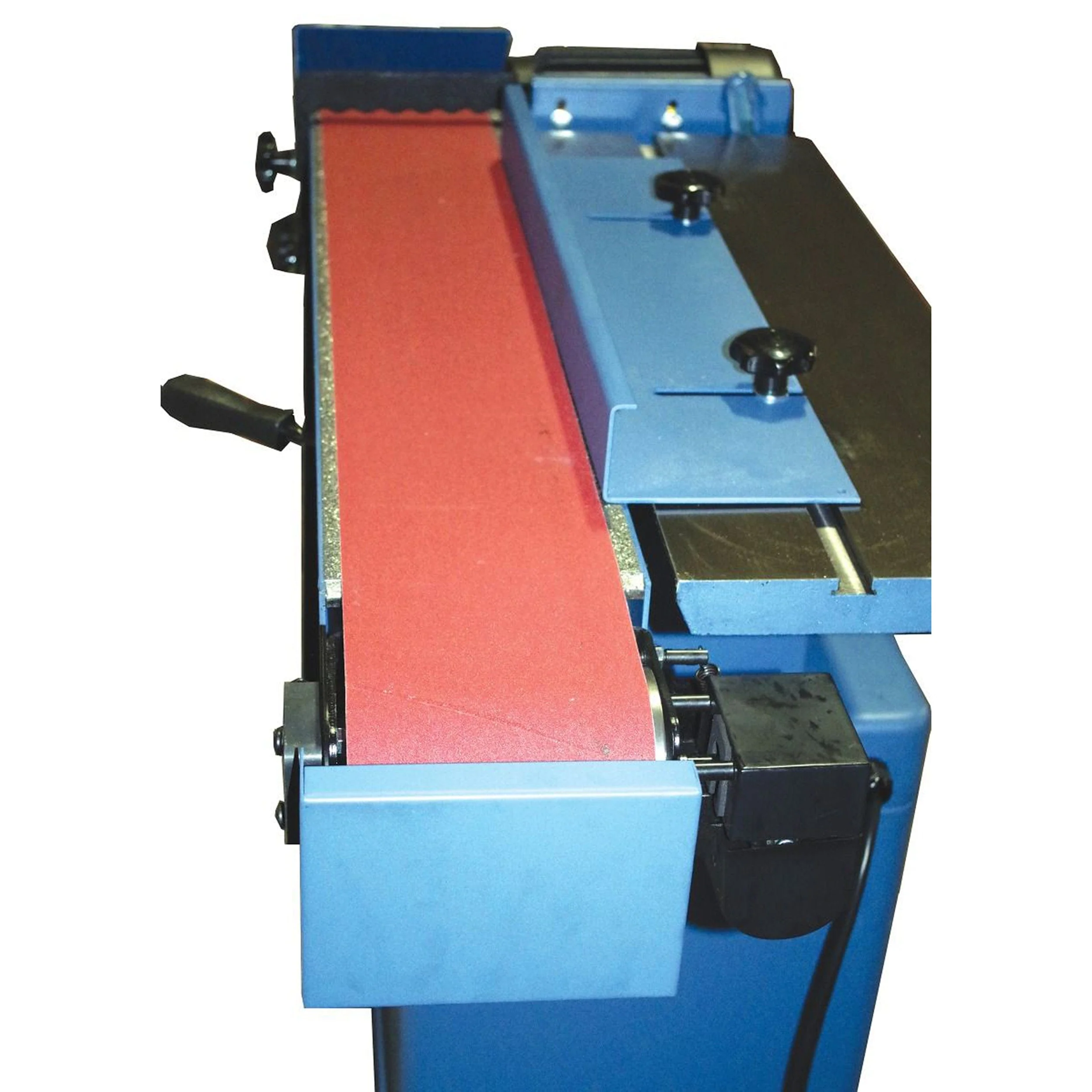

Horizontal/Vertical Oscillating Belt Sander
Oliver Machinery 6303 belt sander can be operated in the horizontal or vertical position or any angle between 0° and 90°. Providing a 1/2" oscillation stroke allows for a better work-piece finish and extends the belt life. The precision ground platen feature a graphite cover that reduces heat and also extends the life of the 6" x 89" sanding belt. Belt tracking and replacement is easy to perform with convenient controls. An end table is included for contour sanding.
Features
- 6” x 89” belt features oscillation action for a superior finish.
- Belt operates at any angle between horizontal and vertical.
- Easy belt changing and tracking adjustments.
- Steel platen is graphite covered for reduced friction.

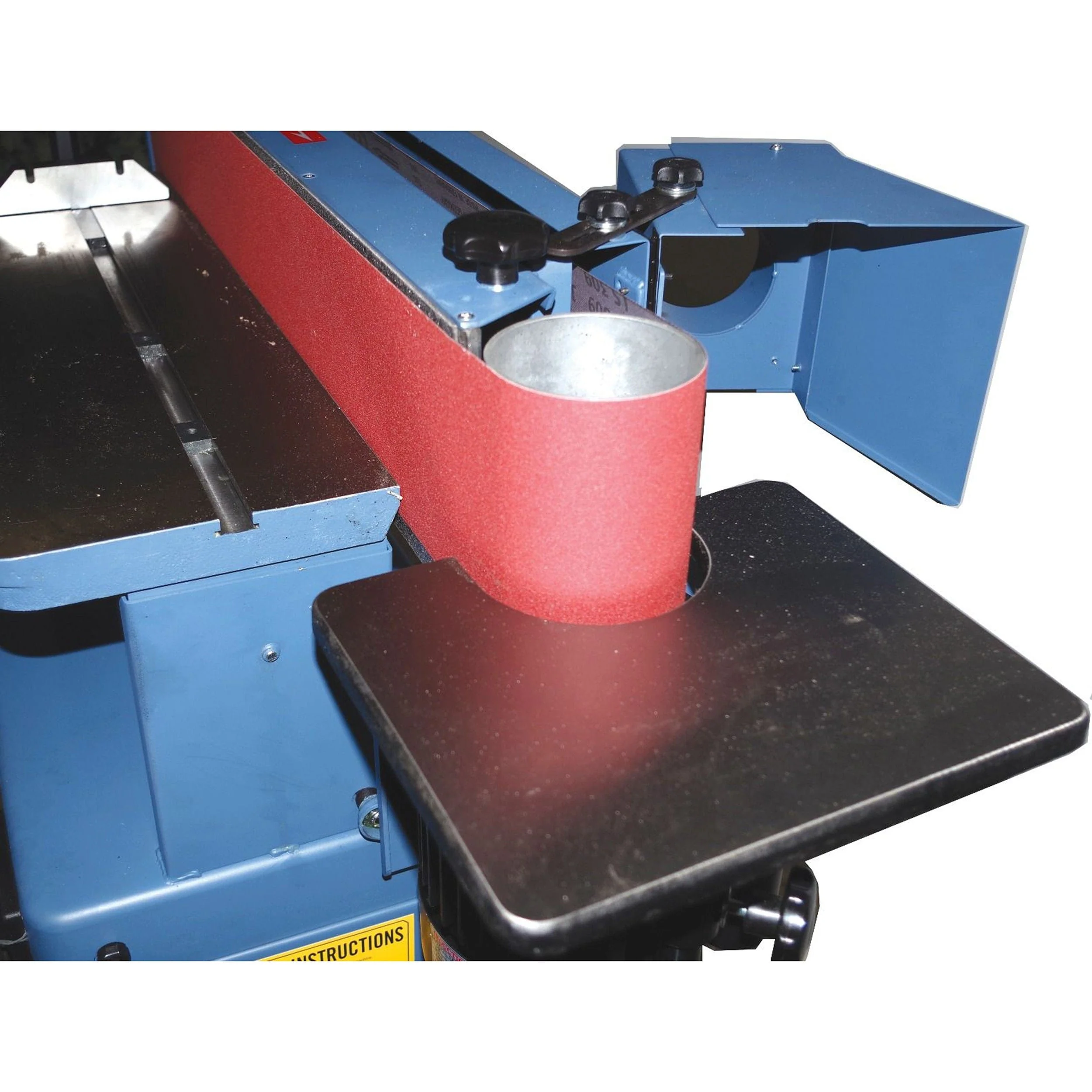

- Contoured sanding possible with end table in place.
- Tables are heavy cast iron and precision ground.
- Tables adjust up and down for complete use of belt.
- Main table slotted and includes a miter gauge.
- Table fence included to assist in operation.
- Heavy duty enclosed cabinet features a storage area.
- Lockable on/off switch.
- Powerful TEFC 1.5HP single phase motor.
- Model Number: 6303
- Stock Number: 6903.001
- Table Material: Cast Iron
- Main Table Size: 10” x 29-1/2”
- End Table Size: 9-3/4” x 11-3/4”
- Main Table Working Height: 38” - 41-1/2”
- End Table Working Height: 37-1/2” - 42”
- Belt Size: 6” x 89”
- Belt Speed: 3,900 FPM
- Oscillation Stroke: 1/2”
- Fence Size: 3” x 23-1/2”
- Dust Port Diameter: 4"
- Minimum CFM Required: 650 CFM
- Motor: 1.5HP 115/230V 1Ph Prewired 115V w/Plug (18/9 Amp)
- Overall Dimensions: 48” x 23” x 48”
- Net Weight: 257 lbs.
- Gross Weight: 273 lbs.
Shipping / Billing Information
This product ships direct from the manufacturer:
- Your order will ship in approximately 5 business days, unless the item is on backorder.
- This product is considered special order. Your account will be charged when you place your order.
- Express or overnight shipping is not available for this product.
- Ships by Ground to the 48 contiguous states. Cannot ship to Alaska, Hawaii, PO Boxes, APOs, US Territories, Canada or other foreign countries.
Return Information
Returns are accepted by Oliver Machinery within 30 days of receipt. Return Materials Authorization (RMA) required prior to return. A 20% restocking fee will be applied. Customer responsible for return freight. Contact Woodcraft Customer Service for return assistance at 1-800-225-1153.
Warranty Information
Oliver Machinery warrants its products to the original customer as free from defects for a period of two years on parts and 1 year for the electronics and motor.
