Straight Rule

Straight Rule

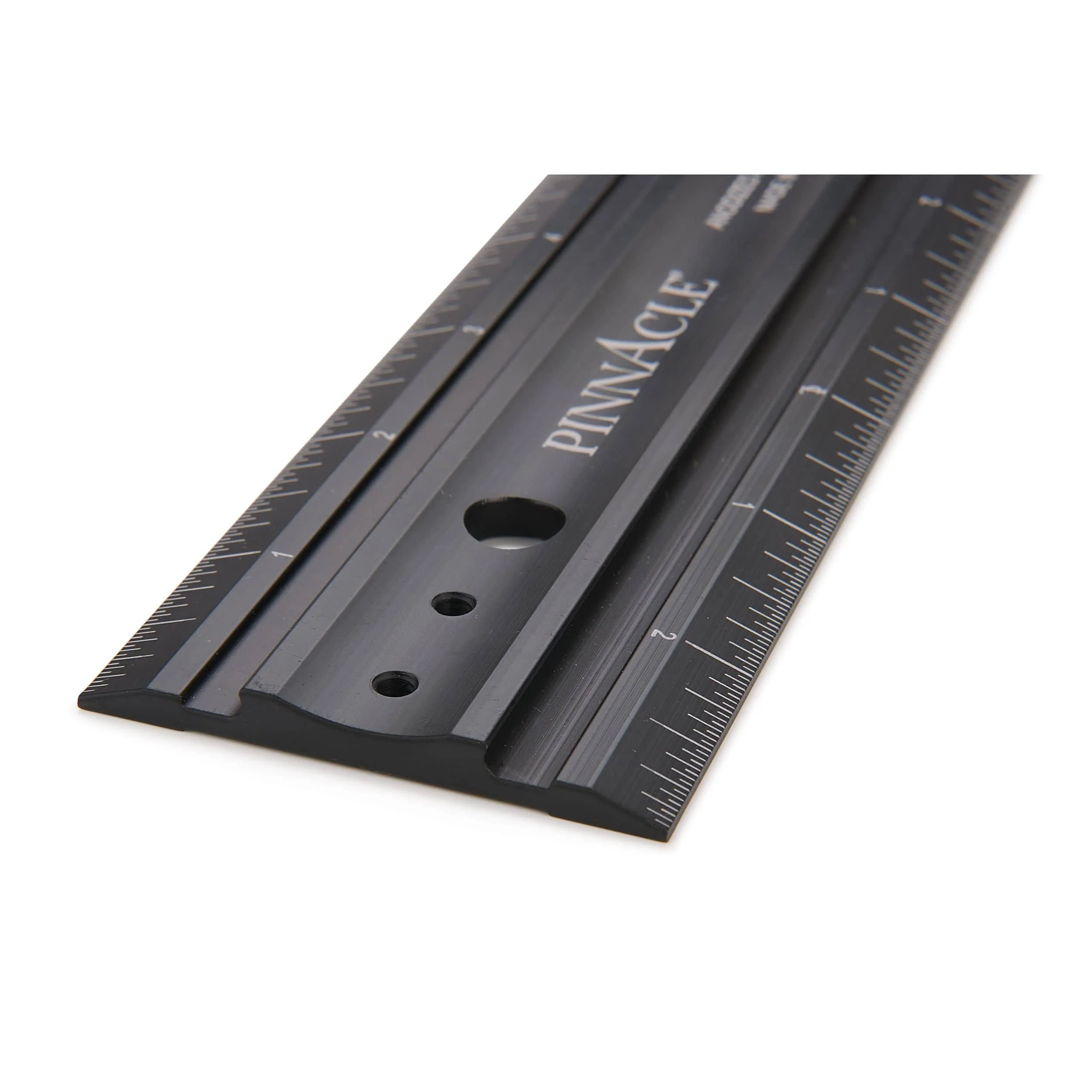

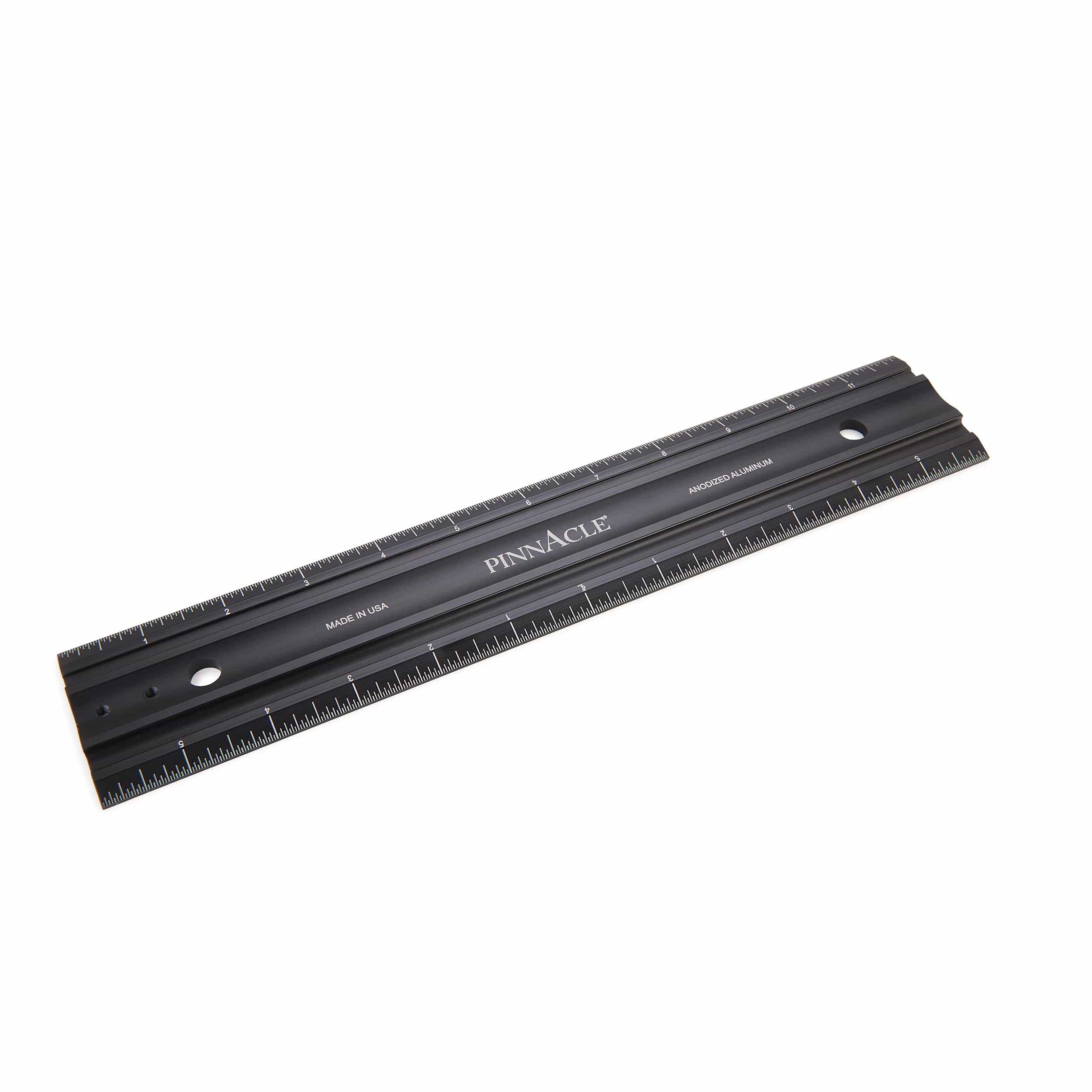

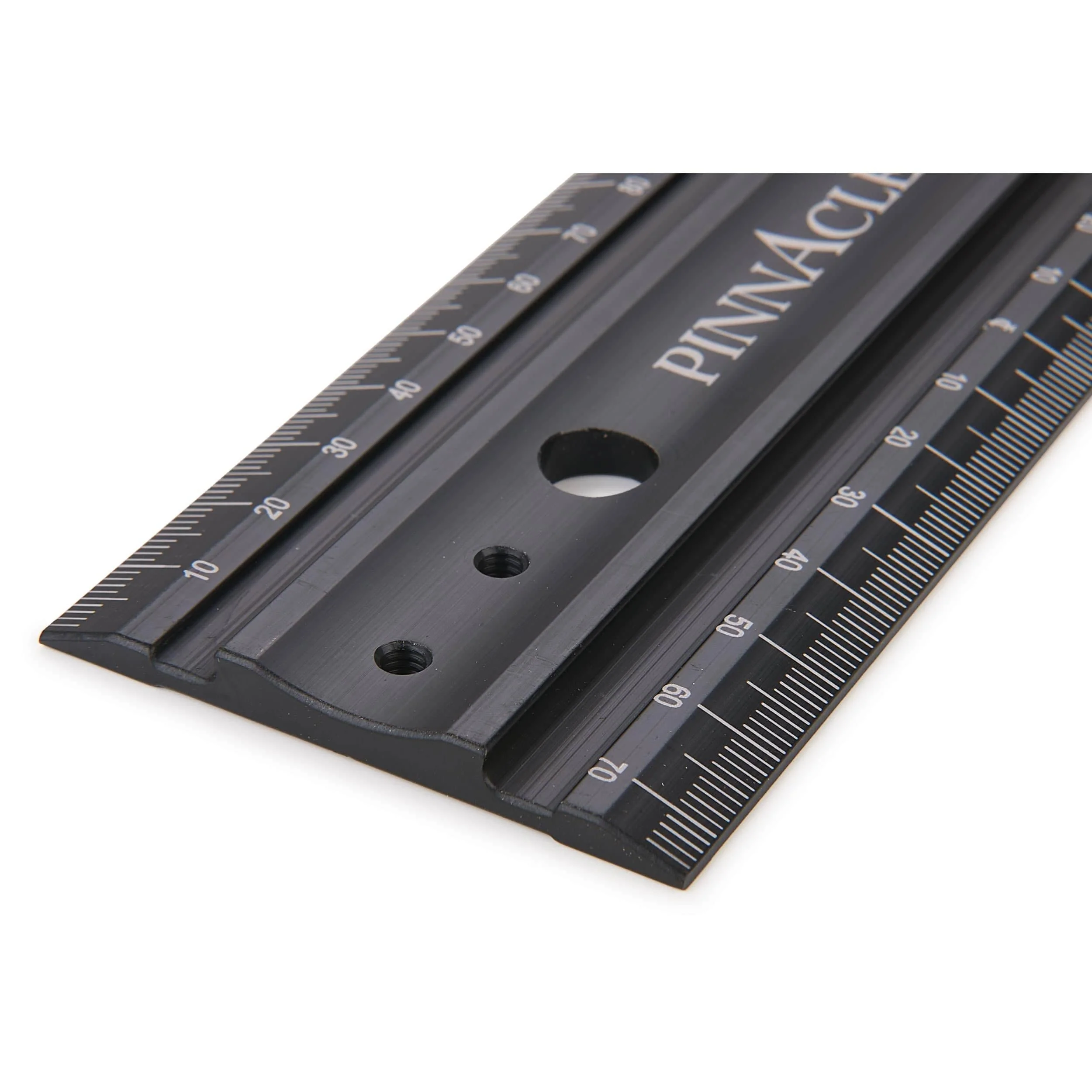

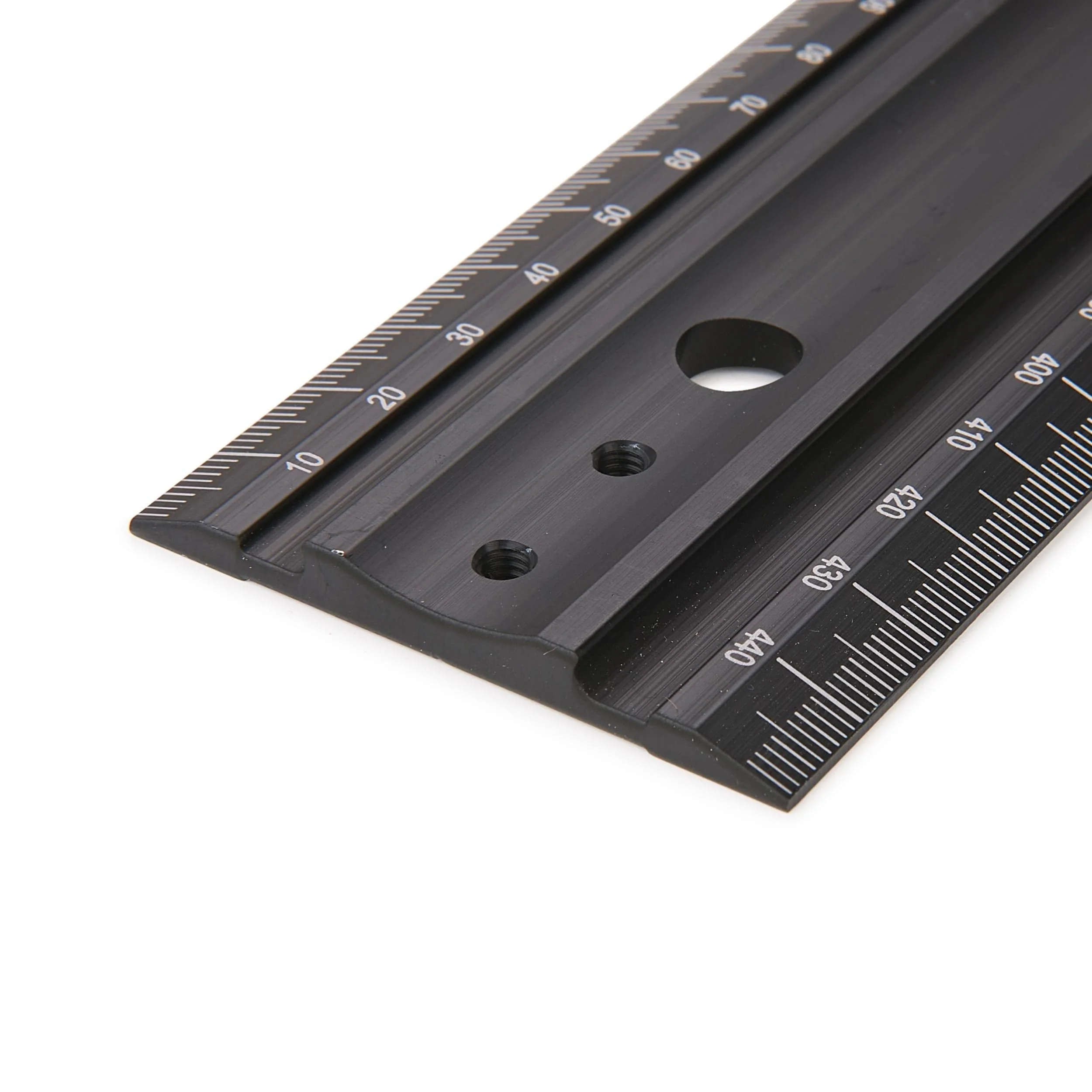

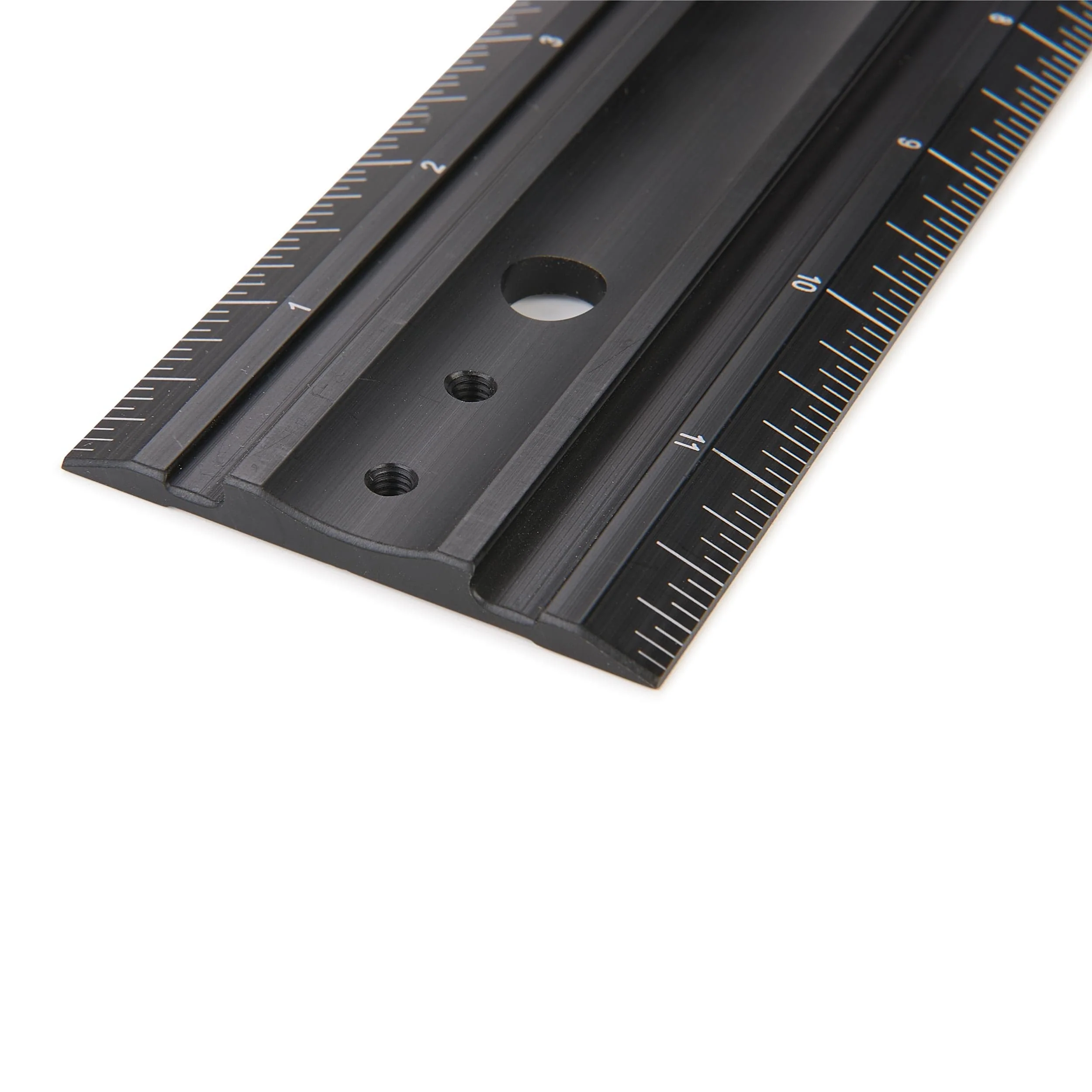

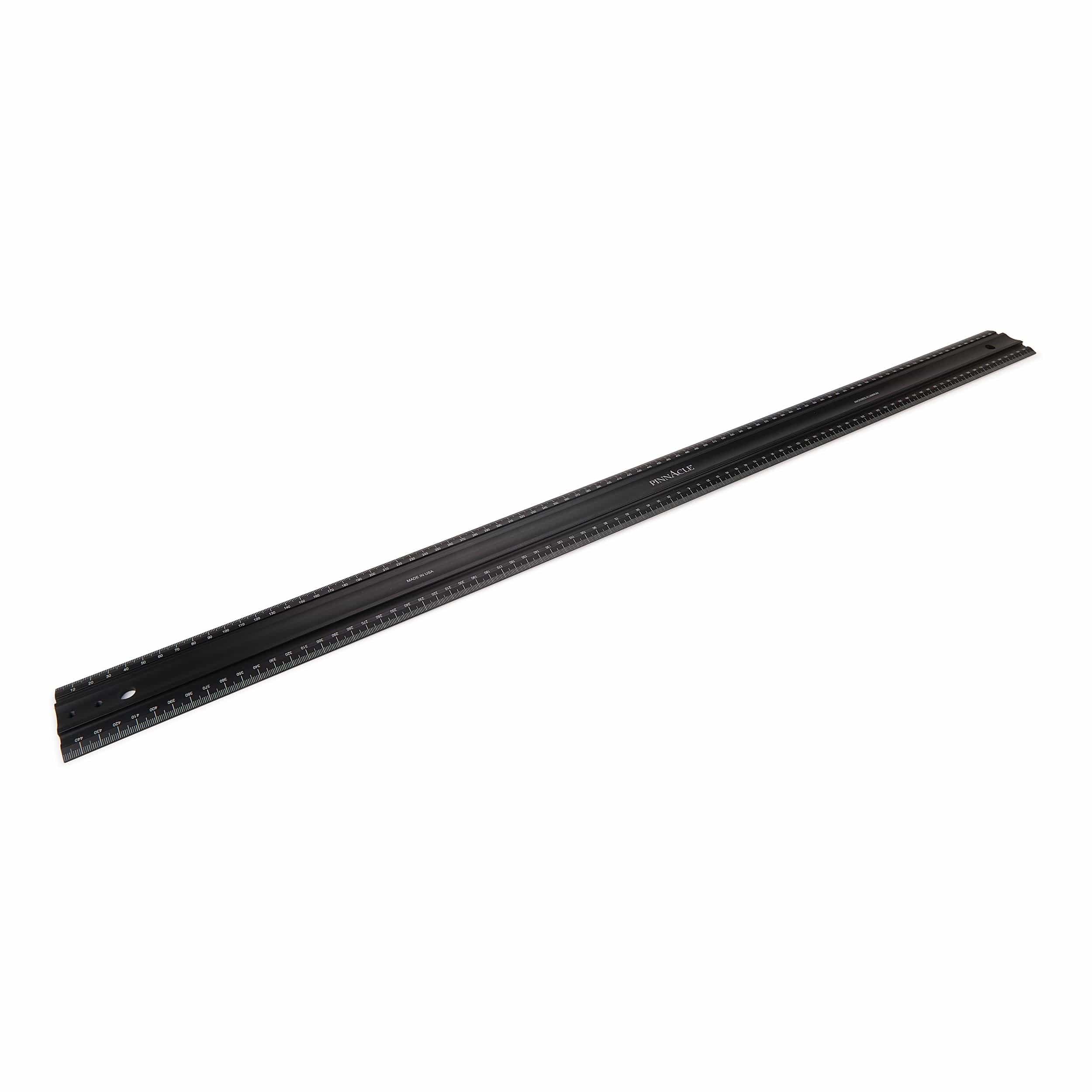

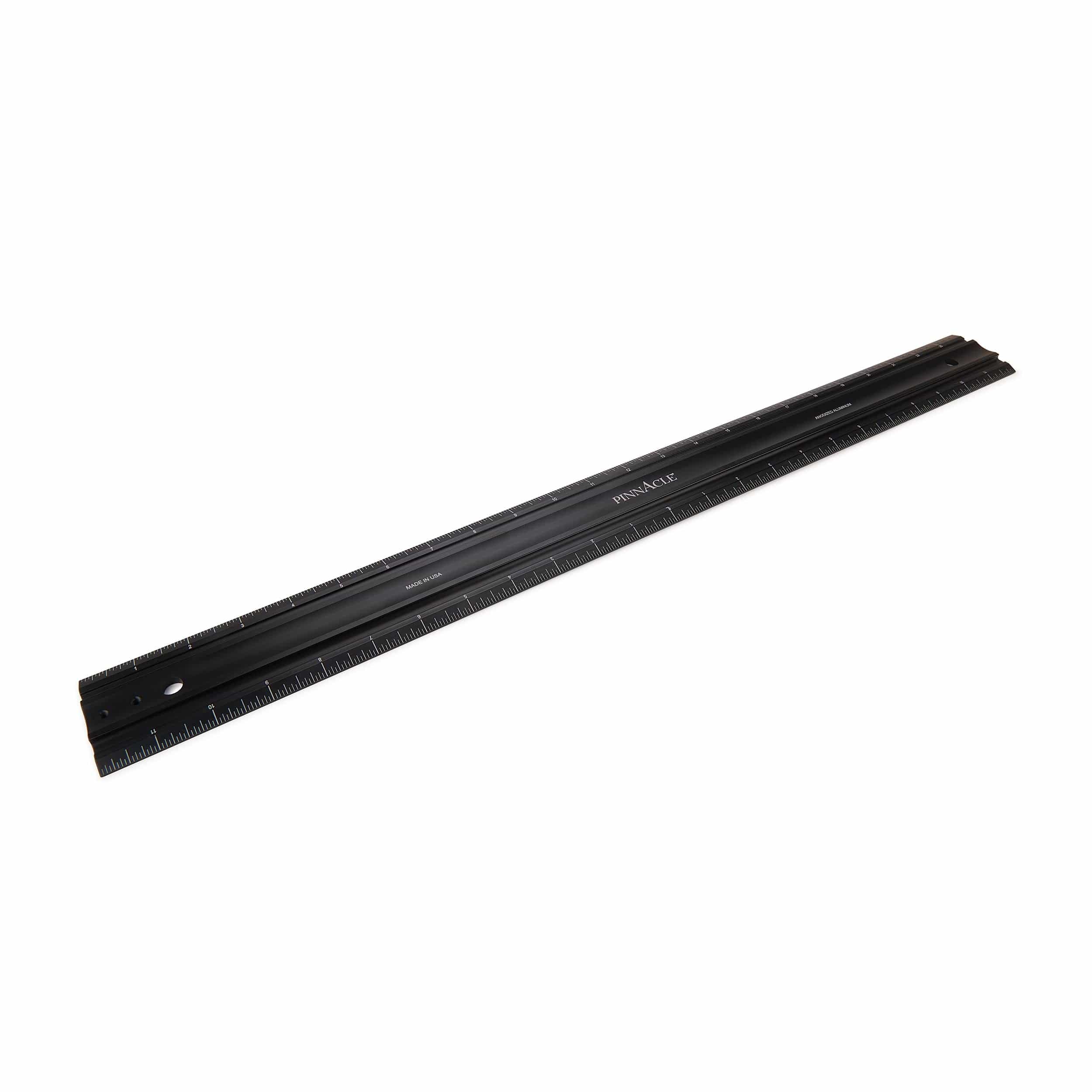

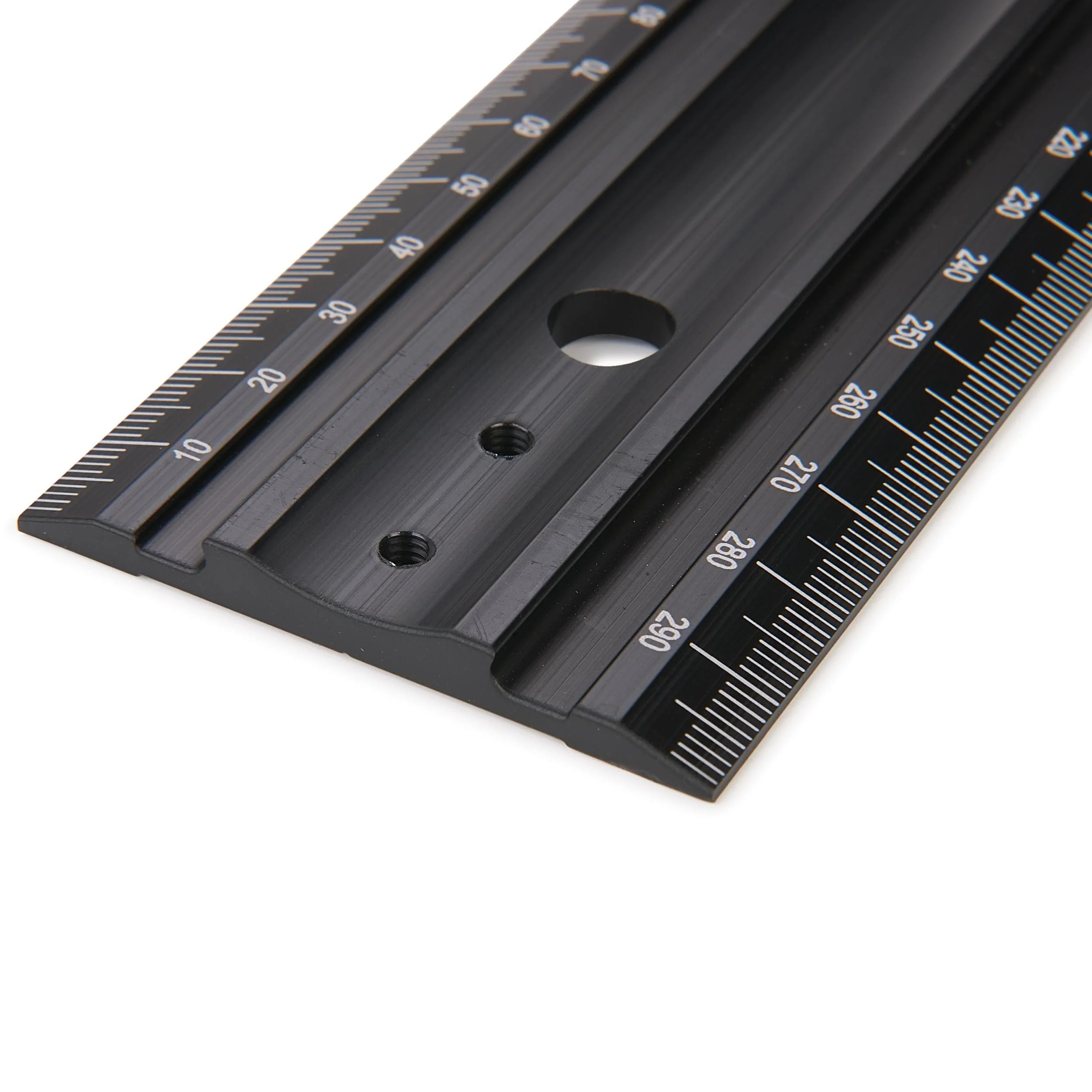

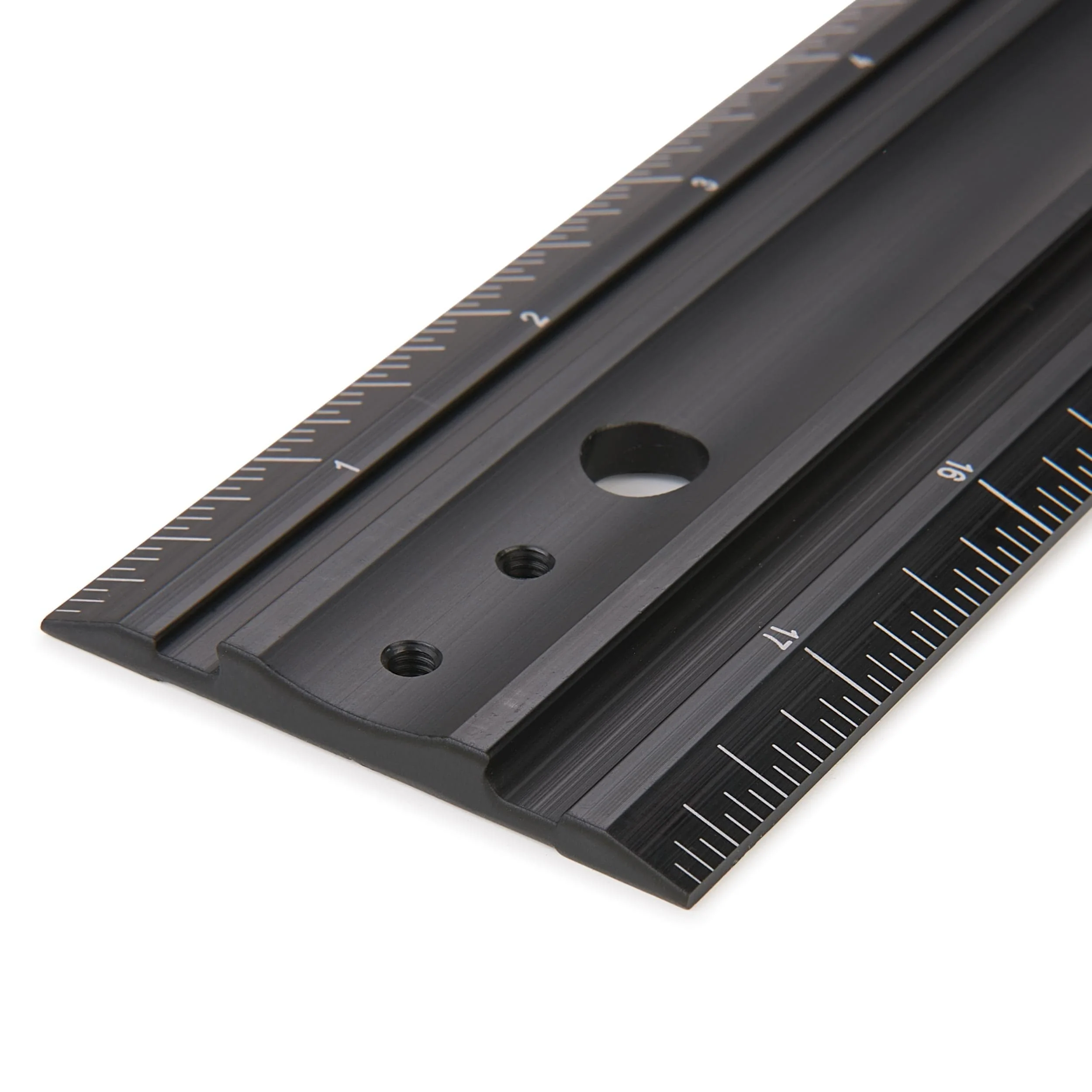

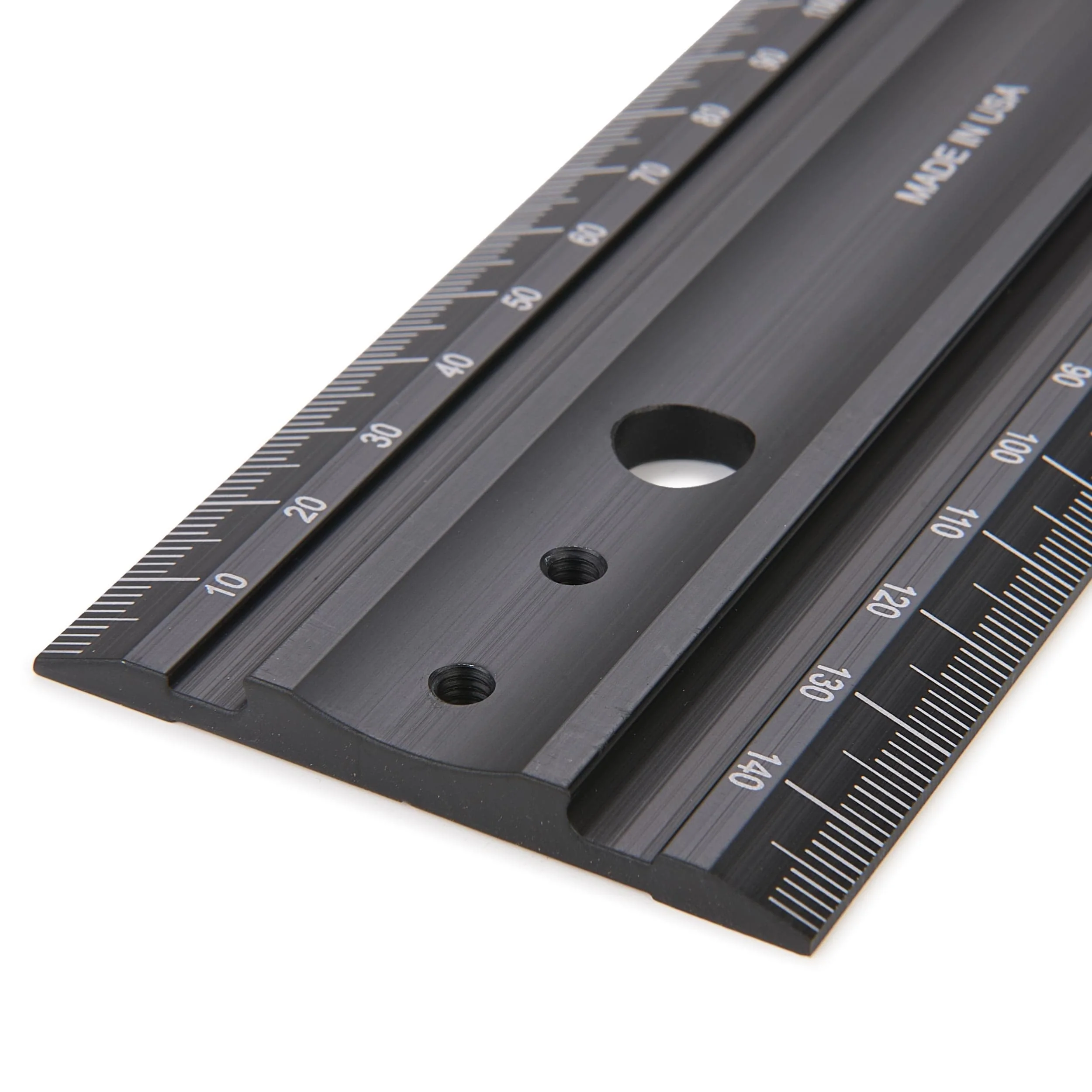

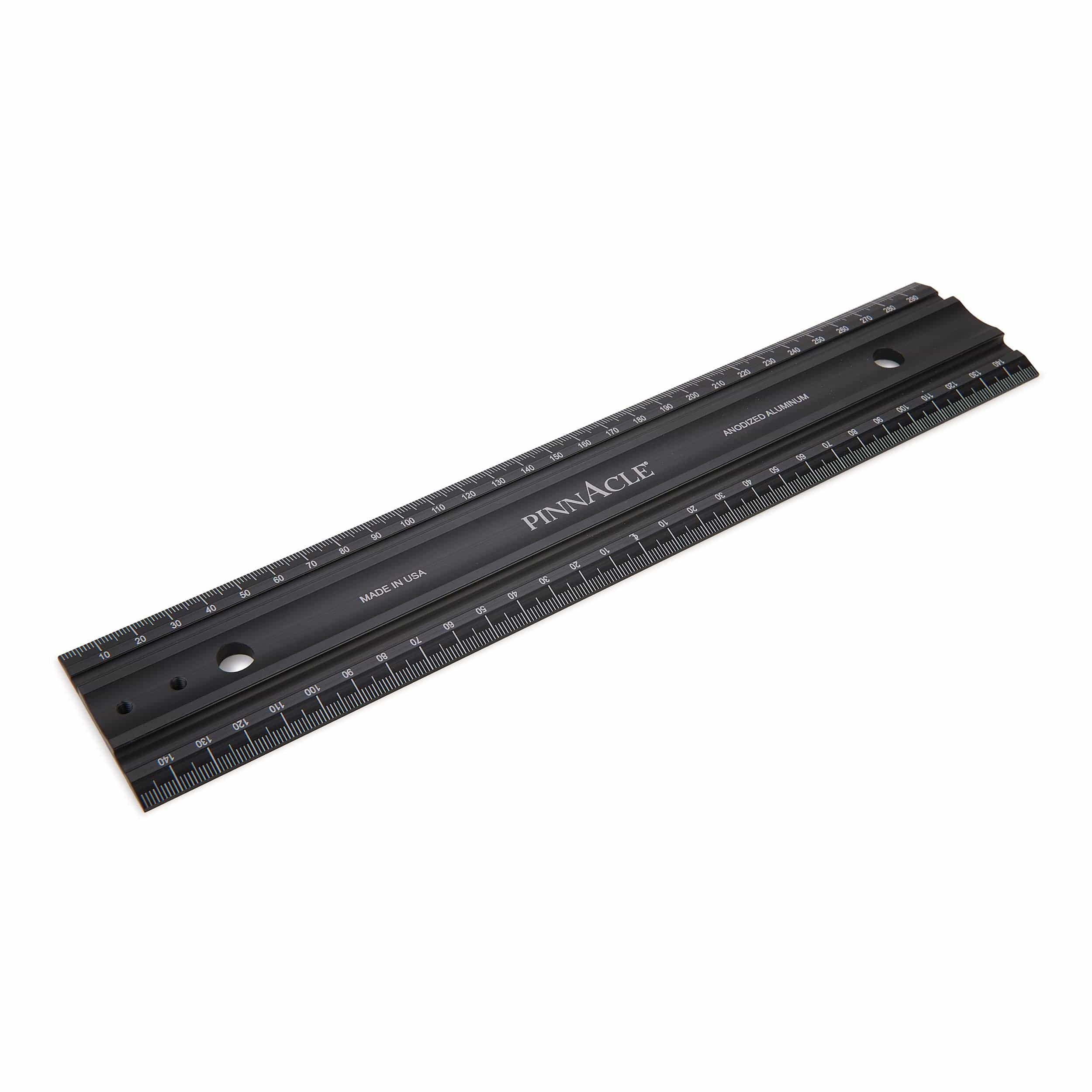

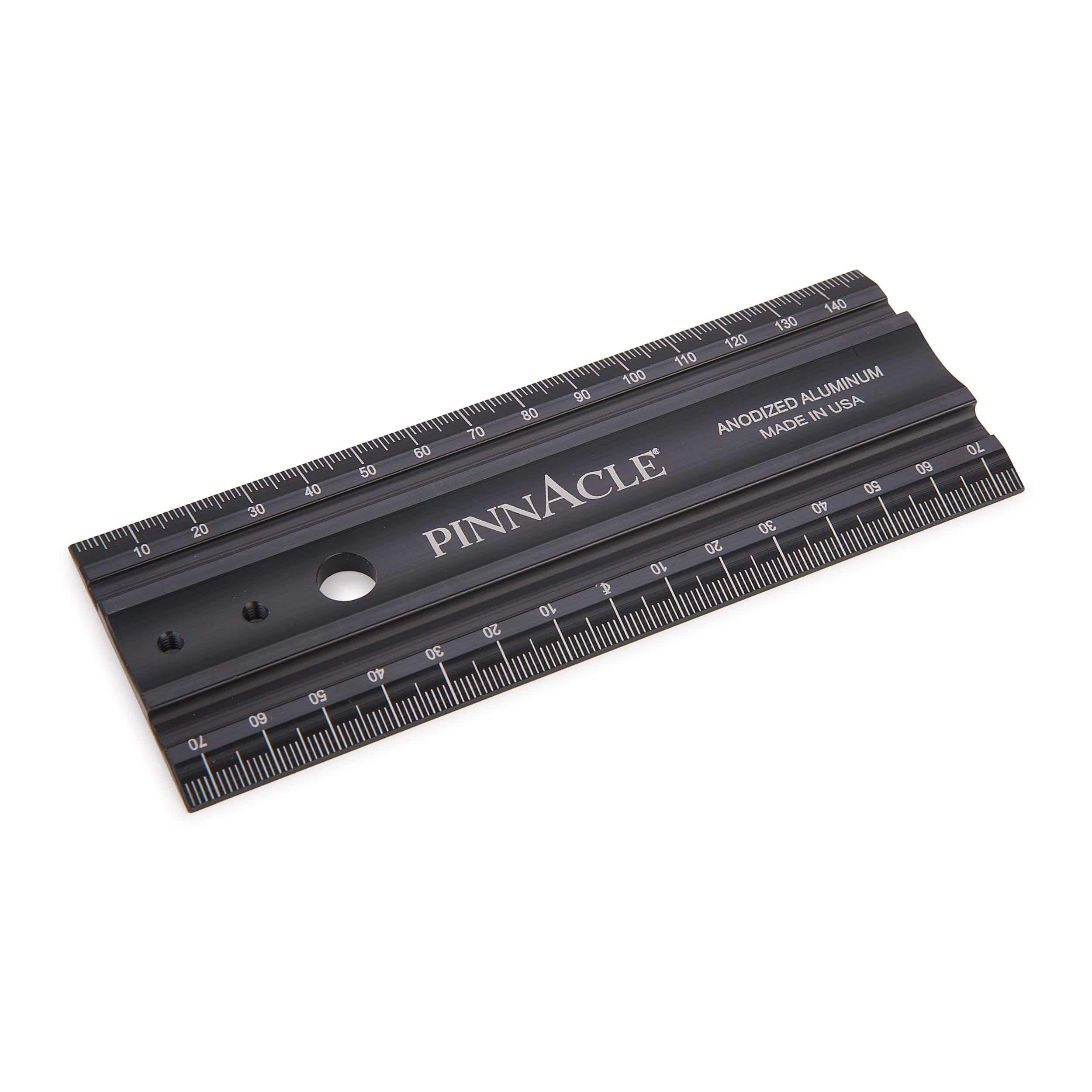

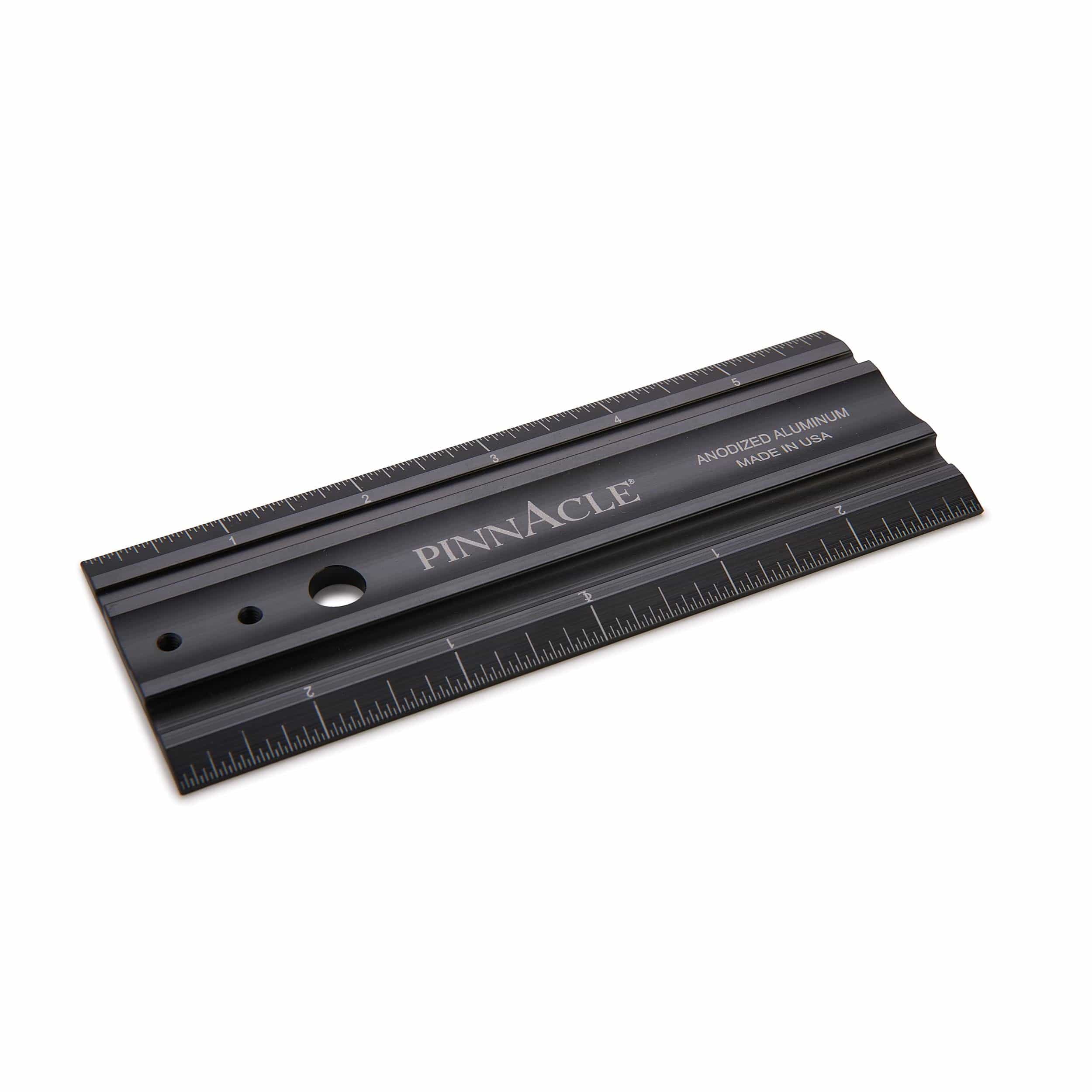

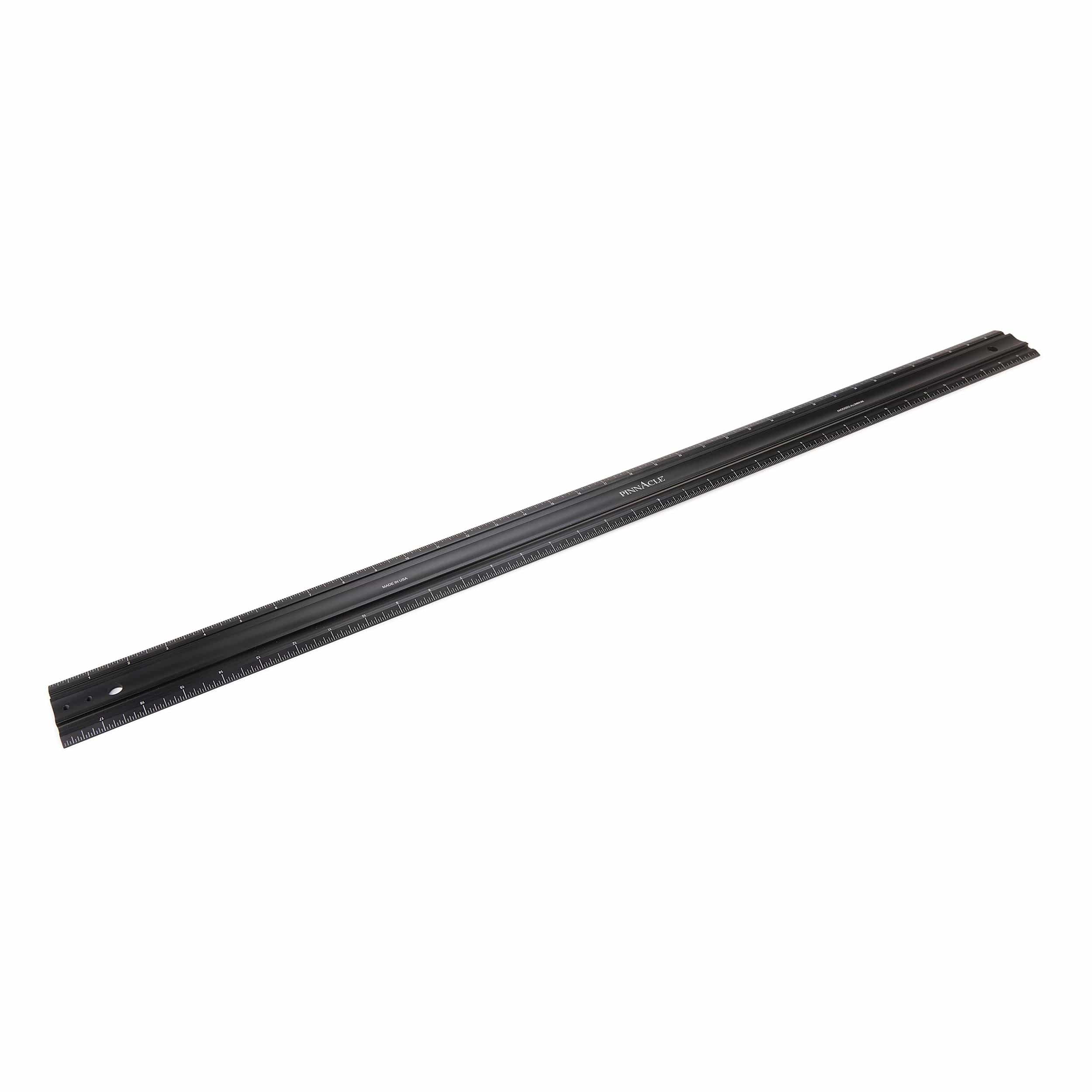

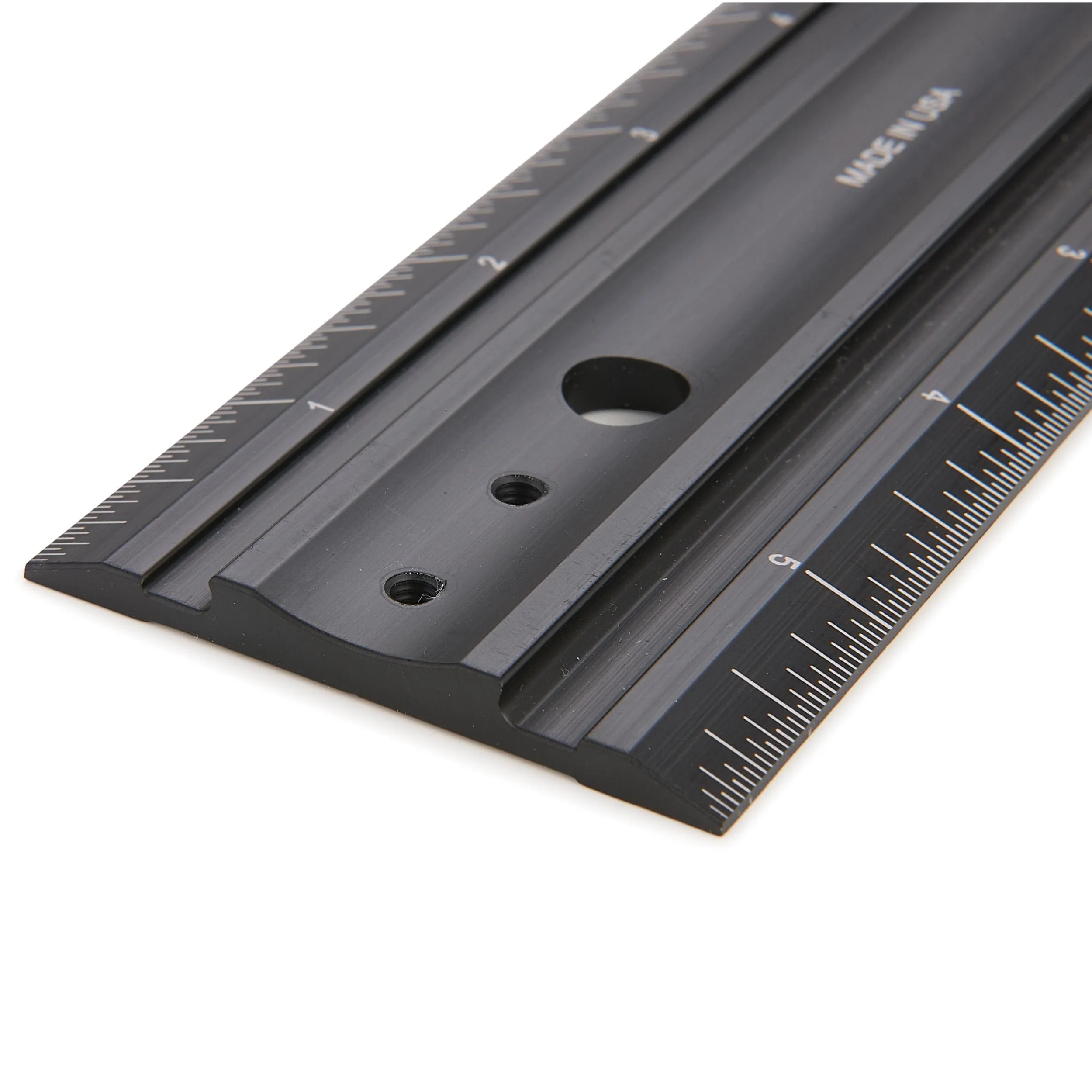

The Pinnacle® Straight Rule is made from an extruded aluminum profile, which features continuous grooves for handling and flatness, along with machined edges for straightness. Rules are black anodized for wear protection, with white laser engraving for visual contrast. One edge is engraved with left-to-right measurements, and the opposite edge is engraved with a center scale.

Features:

  • Ensures reliable, repeatable measurements
  • Extruded aluminum profile with machined edges
  • Black anodized for wear protection
  • White laser engraved markings
  • One edge is engraved with left-to-right measurements
  • One edge is engraved with a center scale

Specifications:

  • Available Lengths- Imperial: 6", 12", 24", 36"
  • Available Lengths - Metric: 150 mm, 300 mm, 600 mm, 900 mm
  • Material: Aluminum
  • Finish: Black anodized
  • Unit of Measurement: Imperial or Metric

  • Graduations - Imperial: 6"and 12" rules have 1/32" graduations, while the 24" and 36" rules have 1/16" graduations



  • Graduations - Metric: All metric rules have 1 mm graduations.



What's Included:

  • (1) Pinnacle® Straight Rule

Select Length
From $21.98
Straight Rule—
$21.98
