Pen Lathe - 1/2 HP 1 PH 120V - 10" x 18"

Rikon's , was designed specifically at the request of pen turners who need a sturdy, dedicated machine for their craft. This lathe is constructed of cast iron so vibration is not a factor, unlike lathes made of aluminum. Five speed ranges cover the bases for boring barrel holes, roughing out pen billets, turning to shape and finishing. The Rikon® 70-105 Pen Lathe is compact and lightweight, making it ideal for use in small workshops or at home.

Features:

• Designed specifically to meet the requirements of pen turners
• Easy adjust handle allows up to 1-3/4" of RAM travel
• 1" x 8 TPI headstock spindle has #2 MT for pen mandrels
• 10″ swing with 18″ between centers
• Easy access speed change
• Nylon face plate washer

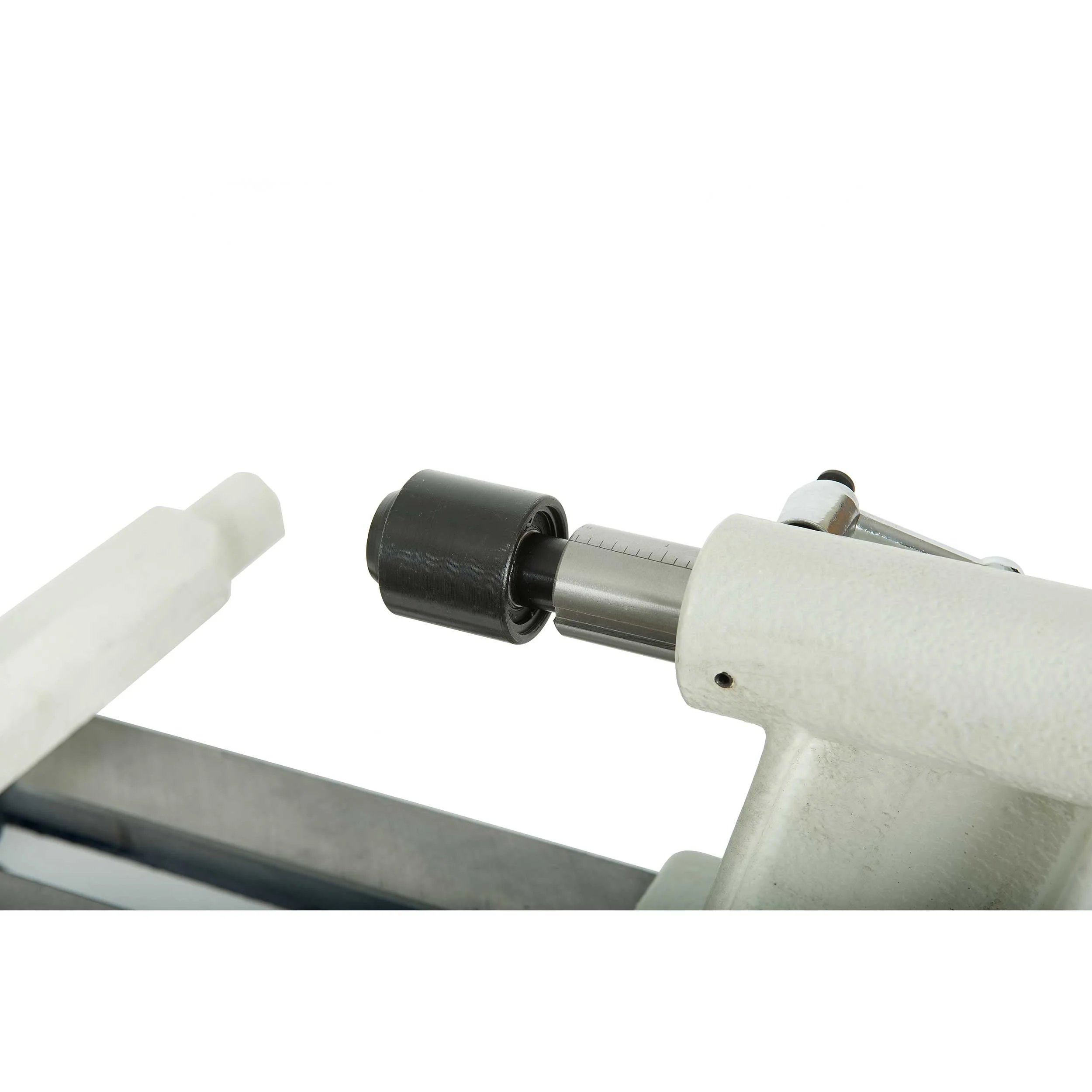

• Self ejecting tail stock
• Ability to add multiple extensions
• Five-Year Warranty

Specifications:

• Product: Lathe
• Style: Benchtop
• Motor: 1/2 HP TEFC (Totally enclosed, fan-cooled)
• Motor Voltage: 120V
• Motor Phase: 1 Ph
• Amps / Hertz: 3.7A 60 HZ
• Motor Speed (No Load): 1,700 RPM
• Direction: Forward Only (Clockwise)
• Number of Speeds: 5
• Speed Ranges: 500, 1,175, 1,850, 2,225 and 3,200 RPM
• Spindle Size: 1" x 8 TPI
• Headstock & Tailstock Taper: #2 Morse Taper
• Swing Over Bed: 10"
• Swing Over Tool Rest: 7-1/2"
• Distance Between Centers: 18"
• Tool Rest Post Diameter: 5/8"
• Overall Size (L x W x H): 35-1/2" x 10-1/2" x 14-3/4"
• Net Weight: 74 lb.
• Shipping Weight: 82 lb.

What's Included:

• (1) Rikon® 10" x 18" Pen Lathe - 1/2 HP 1 Ph 120V
• (1) 6” tool rest
• (1) Spur center
• (1) Live center
• (1) Knockout bar
• (4) Rubber feet with mounting screw
• (1) Manual & Warranty Card (not shown)
