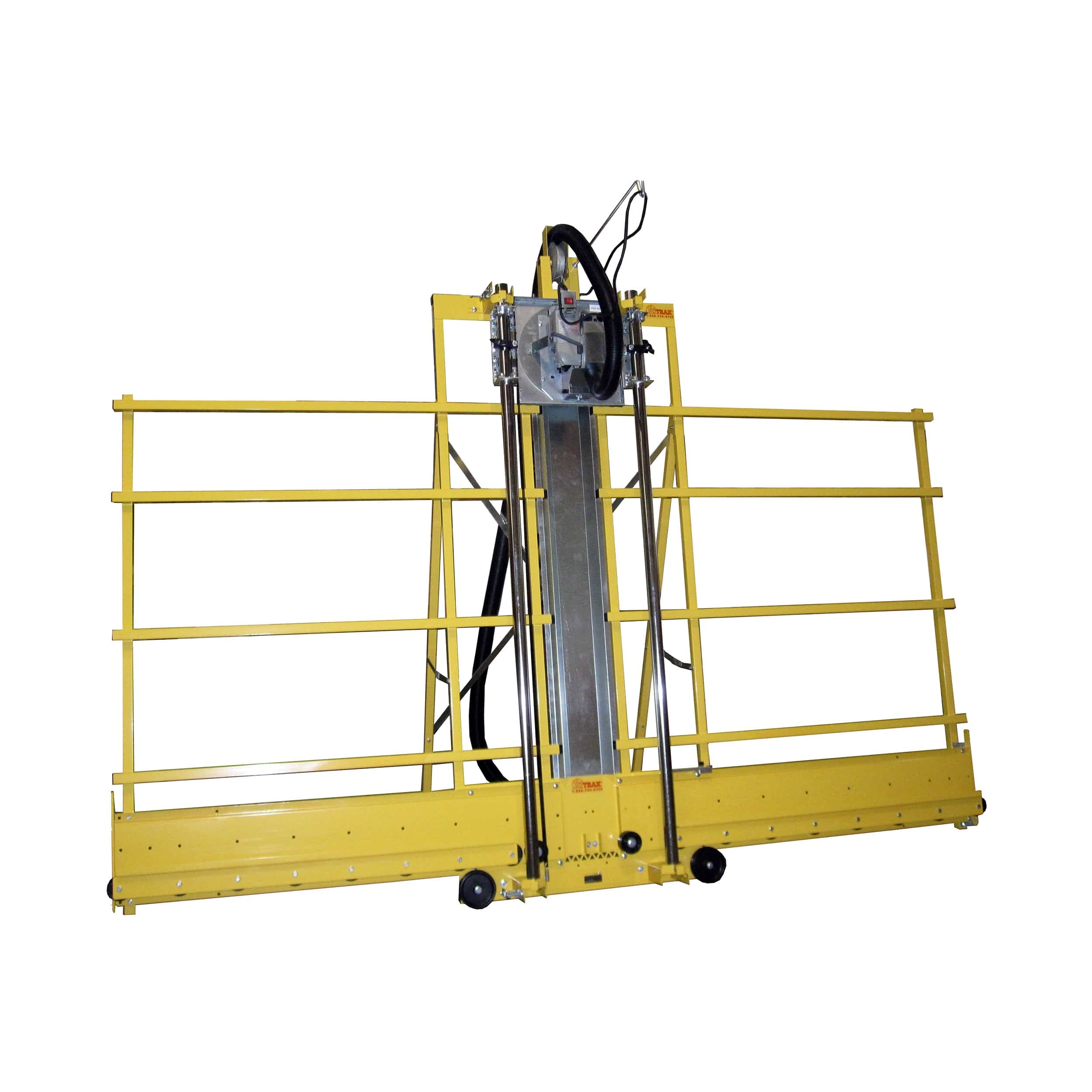

2052 Full Size Makita Hypoid Drive Panel Saw - 52" Crosscut
Cutting large volumes of panels? The Saw Trax 2052 Panel Saw will become your go-to machine. Designed for shops cutting 50 or more sheets a week, this full-size (10' wide) panel saw with a 52" cross cut capability is ideal for customers that need to break down a large volume of sheet goods that are less than 1-3/4" thick with precision cuts.
The heavy duty Makita 5377NB Hypoid saw on a spinning saw insert can withstand long hours of operation. While the dust collection hook ups ensure your work area and air quality are clean. The folding stand opens and closes as easily as a ladder and provides complete stability while in operation. Transport wheels are included. This frame size provides an unlimited rip cut capability.
Both the vertical and horizontal measuring systems help ensure accurate cuts while the stop bar provides the capability to make repetitive cuts. Steel covered material rollers make it virtually impossible to damage the material support system. Patented Accu-Square alignment system assures your machine will stay square and our unique sealed roller bearing system provides for smoother carriage action and tighter tolerances.
Specifications
- Blade Size: 7-1/4"
- Arbor: 5/8"
- Depth of Cut: 1-3/4"
- Frame Width (set up): 122"
- Max. Crosscut: 52"
- Max. Rip Cut: unlimited
- Finish: Powder-coated
- Operating Dimensions: 122" W x 42" D x 78" H
- Shipping Weight: 440 lb.
- Makita 5377NB Hypoid Saw
- 120 V; 15 AMP
- Single Phase
- 4500 RPM
Includes Accu-Square Bracket, Accu-Fence, Power Surge Toggle Switch, Spinning Saw Insert, Dust Collection Hookups, Dust Brush and Dust Collection Upgrade, Dual Rip Gauge, Measuring Tape, Stop Bar with 2 Tapes, Steel-covered Material Rollers with Hubs, and a General Purpose Blade.
Shipping / Billing Information
This product ships direct from the manufacturer:
- Your order will ship in approximately 7 business days.
- This product is considered special order. Your account will be charged when you place your order.
- Express or overnight shipping is not available for this product.
- Ships via ground to the 48 contiguous states.
Return Information
Saw Trax accepts returns on warranty claims only.
Warranty Information
Saw Trax offers a 1 year limited warranty. Contact Woodcraft Customer Service at 800-225-1153 if you have a warranty issue.
