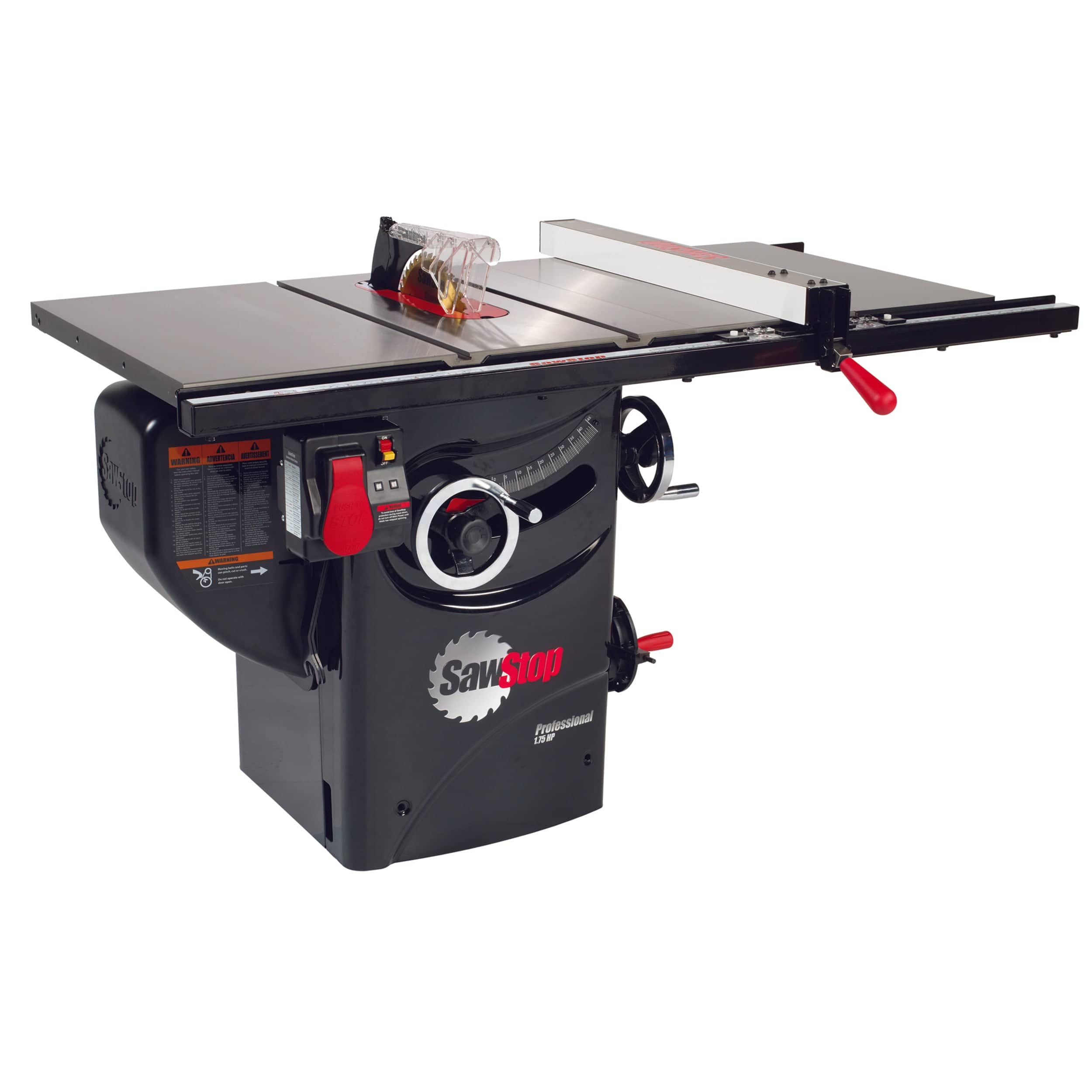

1-3/4 HP Professional Cabinet Saw - 110V 1 PH - 30" Premium Fence System

Experience unmatched precision, power, and safety with the SawStop 1-3/4 HP Professional Cabinet Saw. Designed for both serious hobbyists and professional woodworkers, this saw combines smooth operation, durable build quality, and the legendary SawStop safety system that stops the blade on contact with skin in less than 5 milliseconds.

The 1-3/4 HP motor delivers powerful performance on standard 110V household circuits, while the 30" premium T-Glide fence system provides precise measurements, rock-solid stability, and effortless control. With heavy-duty construction and vibration-minimizing trunnions, this saw is built to deliver repeatable accuracy cut after cut.

Features:

• SawStop’s patented safety system
• Riving knife reduces the risk of kickback
• Tool-free quick-change blade guard mount
• Diagnostic system ensures the saw is ready to respond
• Micro Blade Guard
• 30" Premium Fence System provides smooth operation and precise measurement

Specifications:

• Product Type: Cast Iron Table Saw
• Overall Saw Dimensions (W x D x H): 61-3/4" x 31-1/8" x 34"
• Cabinet Footprint (W x D): 19-3/8" x 19-3/8"
• Cast-Iron Table (W x D): 20" x 27"
• Cast-Iron Table Size with Extension Wings (W x D): 44" x 27"
• Motor: 1-3/4 HP, 1-phase, 110V, 14A
• Weight: 367 lbs.
• Blade: 40-tooth, professional grade, 5/8" arbor
• Blade Diameter: 10"
• Blade Tilt: left
• Blade Kerf: 0.118" (3mm)
• Blade Plate Thickness: 0.078"
• Maximum Depth of Cut - Blade at 0º: 3-1/8"
• Maximum Depth of Cut - Blade at 45º: 2-1/4"
• Maximum Rip - Left of the Blade: 12"
• Dado Diameter: 8" (requires a separate brake cartridge and table insert)
• Maximum Dado Width: 13/16"
• Arbor Diameter at Blade: 5/8"
• Table in Front of Blade - Maximum Elevation: 10-1/4"
• Table Behind the Blade - Maximum Elevation: 7-1/2"
• Table Flatness Measured Diagonally: 0.010" maximum gap
• Miter Slots: T-shaped, 3/4" at top, 1" at bottom, 3/8" deep
• Dust-Collection Port Diameter: 4"
• Riving Knife/Splitter Thickness: 0.078" (2 mm)
• Blade Guard: polycarbonate, extends only 5/8" to right of blade
• Insert: zero clearance, steel core, ABS surfaces
• Belts: 2 V-ribbed belts – arbor belt is static dissipative

What's Included:

• (1) SawStop 1.75 HP PCS™ Table Saw Body
• (1) 30" Premium Fence System
