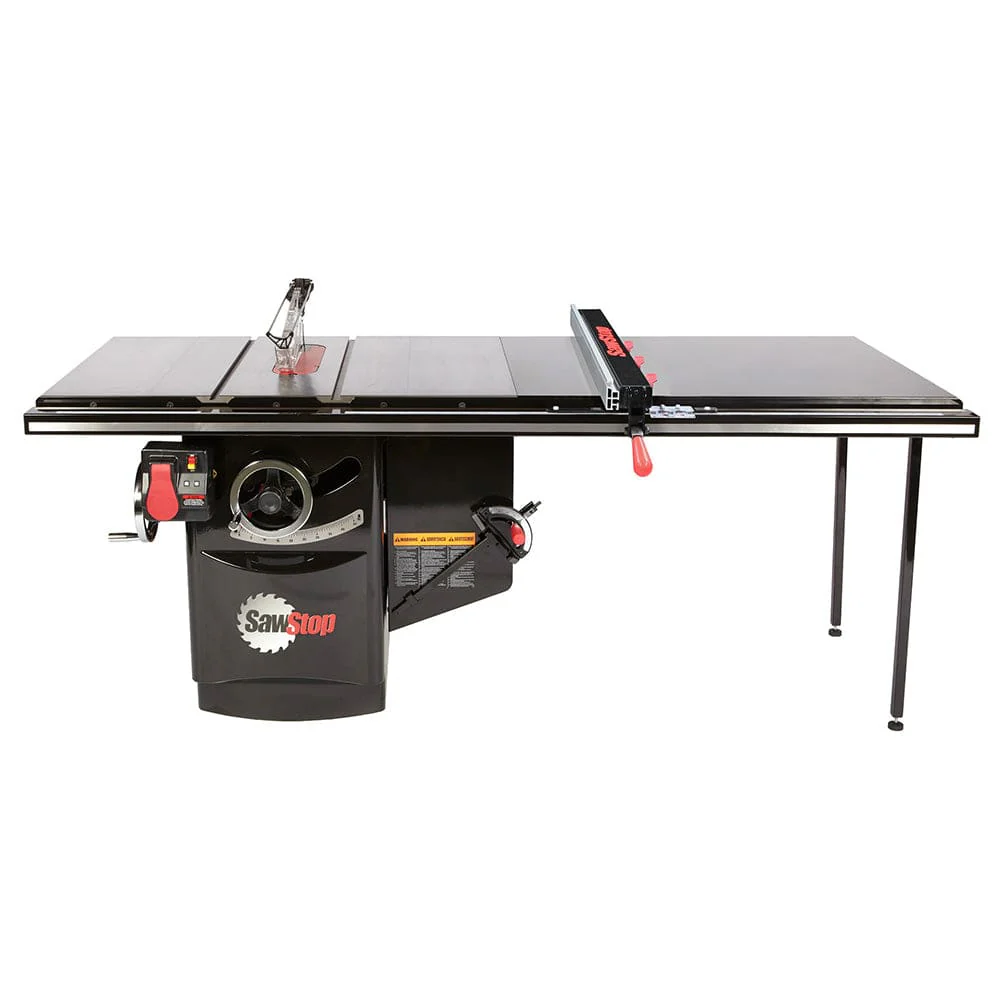

Industrial Cabinet Saw with 52" Industrial T-Glide Advance Fence System - 3 HP - 1PH - 230V

Built for serious professionals and production environments, the SawStop 3 HP Industrial Cabinet Saw with 52" T-Glide Advance Fence System delivers unmatched power, precision, and safety. Whether you’re cutting hardwoods, sheet goods, or intricate joinery, this saw offers the rock-solid stability and repeatable accuracy demanded by high-end cabinet shops and woodworking pros.

Powered by a 3 HP motor on a 230V single-phase system, this saw features an expansive 52" rip capacity and SawStop’s patented safety brake, which halts the blade in less than 5 milliseconds upon skin contact. The heavy-duty T-Glide Fence System ensures smooth, precise adjustments with absolute lockdown—no deflection, no guesswork.

From safety and build quality to performance and dust collection, this saw is engineered to be the cornerstone of your professional workspace.

Features:

• SawStop’s patented safety system
• Riving knife reduces the risk of kickback
• Tool-free quick-change blade guard mount
• Diagnostic system ensures the saw is ready to respond
• Dust-Collection Blade Guard
• 52" Industrial T-Glide Advance Fence System

Specifications

• Overall saw dimensions: 85-1/4" wide x 36-1/2" deep x 34" high
• Cabinet footprint: 20" x 25"
• Cast-iron table: 24" w x 30" d
• Cast-iron table size with extension wings: 44" w x 30" d
• Motor: 3 HP, 1-phase, 230V 60 HZ
• Weight: 685 lbs.
• Blade: 60-tooth, professional grade, 5/8" arbor
• Blade diameter: 10"
• Blade tilt: left
• Blade kerf: 0.118" (3mm)
• Blade plate thickness: 0.078"
• Max. depth of cut, blade at 0º: 3-1/8"
• Max. depth of cut, blade at 45º: 2-1/4"
• Max. rip, left of blade: 12-1/2"
• Dado diameter: 8" (requires a separate brake cartridge and table insert)
• Dado max. width: 13/16"
• Arbor diameter at blade: 5/8"
• Table in front of blade (max. elevation): 11"
• Table behind blade (max. elevation): 9-3/4"
• Table flatness measured diagonally: 0.010" maximum gap
• Miter slots: T-shaped, 3/4" at top, 1" at bottom, 3/8" deep
• Dust-collection port diameter: 4"
• Riving knife/splitter thickness: 0.090" (2.3mm)
• Insert: zero clearance, phenolic core, melamine surfaces
• Belts: 2 V-ribbed belts

What's Included:

• (1) SawStop Industrial Cabinet Saw with 52" Industrial T-Glide Advance Fence System - 3HP - 1PH - 230V
