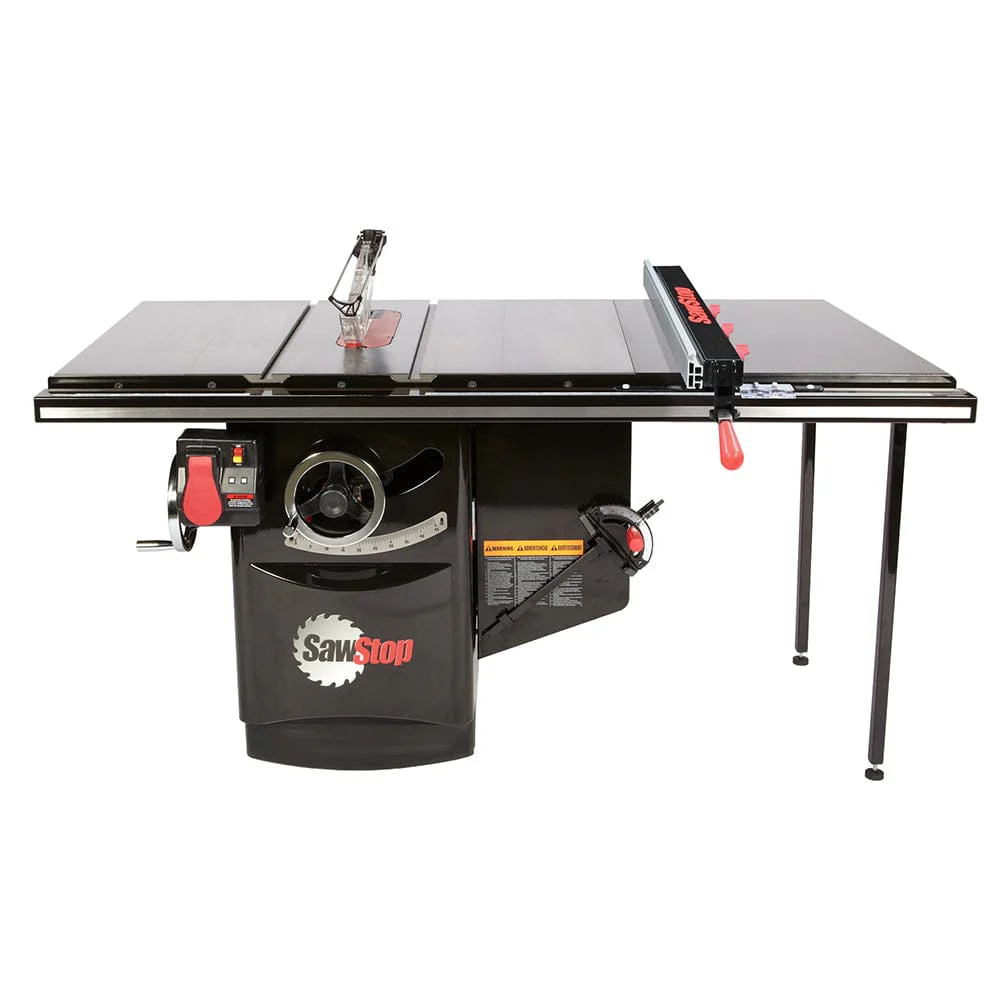

Industrial Cabinet Saw with 36" T-Glide Advance Fence System - 5HP - 3PH - 480V
The SawStop® Industrial Cabinet Saw is the definition of industrial grade. It is the heaviest, most powerful and highest quality 10" cabinet saw available. The 5HP, 3ph, 480v configuration with an upgraded 36" Industrial T-Glide Advance Rip Fence System offers the durability, versatility, and the peace of mind only SawStop's revolutionary safety system can provide.
Features:
- Revolutionary SawStop Safety System stops on contact with skin.
- Durable craftmanship of almost 700lbs of iron and steel and thoughtful details combine for consistent, reliable performance in the most demanding industrial environments.
- Provides outstanding dust collection both above the table via the included dust collection blade guard and below the table with advanced shrouding around the blade.
- The ICS has an integrated Lock-Out Tag-Out switch for additional safety to ensure that only authorized operators can use the saw.
- The 36" Industrial T-Glide Advance Rip Fence delivers accuracy, versatility, ease of use, and safety like no other rip fence on the market.
- 69 1/4" w, 36 1/2" d, 34" h
- Cast Iron Table: 24" W x 30" D
- Motor: 5HP - 3 PH Electric, 480V, 5.8A
- Extension Wings: 10" W x 30" D each
- Extension Table: 24" W x 30" D
- Cabinet footprint: 20' W x 25" D
- Weight: 635 lbs. Fence included
- Blade size: 5/8" arbor 10" Diameter
- Left Tilt
- Blade kerf: 0.118" (3 mm)
- Blade Plate Thickness: 0.078" (2 mm)
- Max depth of cut: 2-1/4"
- Max rip right of blade: 36-1/2"
- Max rip left of blade: 12-1/2"
- Dado Diameter: 8" and requires separate brake cartridge and insert
- Dado max width: 13/16"
- (1) SawStop Industrial Cabinet Saw with 36" Industrial T-Glide Advance Rip Fence System - 5HP - 3PH - 480V
- Owner's Manual
Shipping / Billing Information
This product ships direct from the manufacturer:
- Your order will ship in approximately 5 business days.
- This product is considered special order. Your account will be charged when you place your order.
- Express or overnight shipping is not available for this product.
- Ships by Ground to the 48 contiguous states. Cannot ship to Alaska, Hawaii, PO Boxes, APOs, US Territories, Canada or other foreign countries.
Inspect all freight shipments at time of delivery. If damage or missing pieces, are suspected, please note on driver paperwork.
Return Information
SawStop does not accept returns. If your shipment was damaged, please refuse shipment and call SawStop's customer service department at 503-595-2665.
Warranty Information
SawStop warrants that their saws are free from defects in materials and workmanship for a period of two years from the purchase date, and covers their motors for a period of 5 years. If you have a warranty question, please contact SawStop customer service @ 503-582-9934.
$5,986.00
