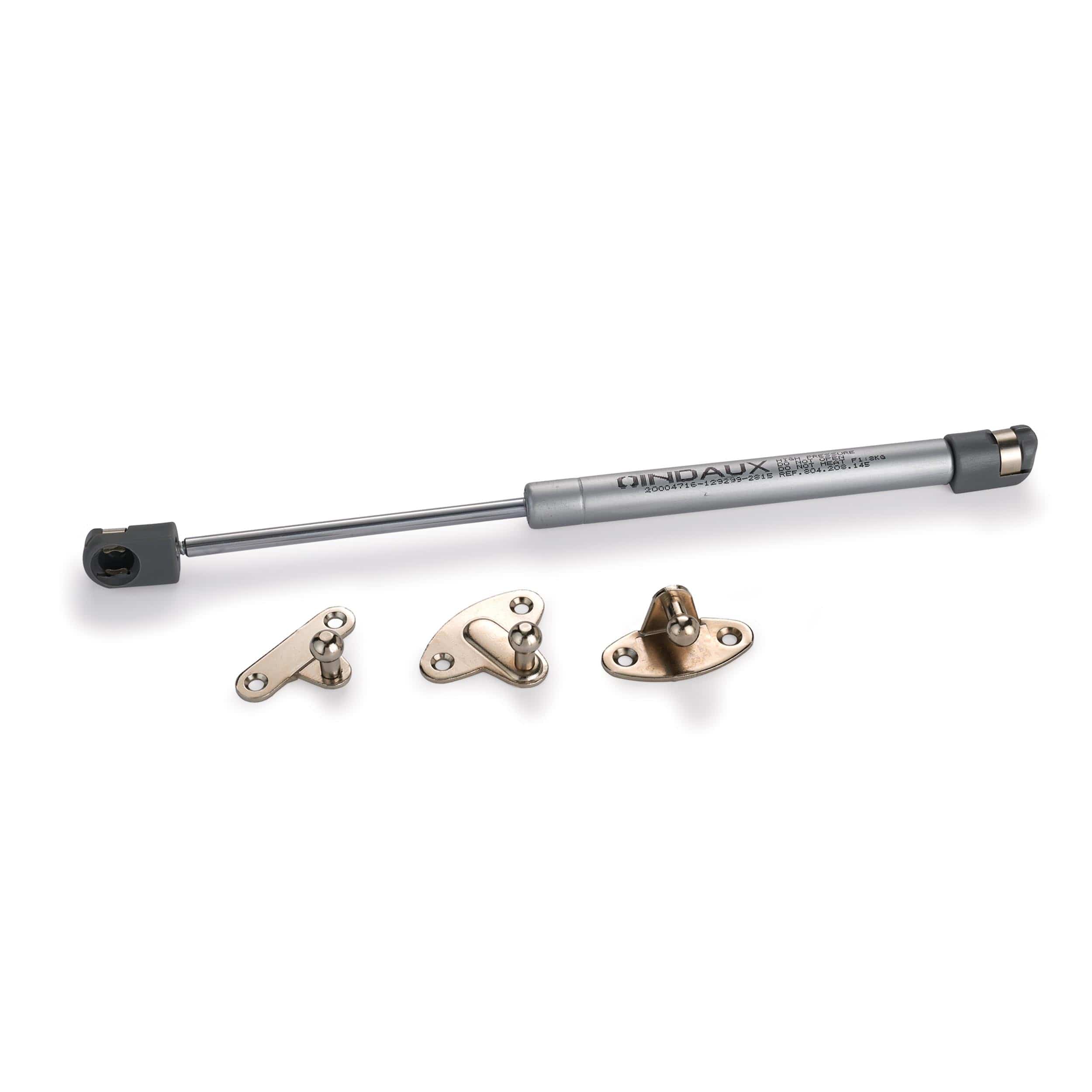

Gas Spring Pneumatic Stay - 15 kg/33 lbs

Gas Springs provide smooth, silent, and reliable motion that metal springs or friction stays can't match. These stays work for both up and down-moving lids and are simple to install. Just attach the mounting brackets to the case and lid separately, and snap the stay on. Rated by closing force in pounds, it’s important to choose the right stay for your project, as excessive force may hinder proper lid closure. For lids wider than 36", we suggest using two stays. Each package comes with screws, mounting plates for easy left or right installation, and instructions. Sold individually.

Features:

• Easy quiet movement
• Simple Installation

Specifications:

• Closing Force: 15Kg/33lbs

Whats Included:

• (1) Gas Spring Pneumatic Stay and mounting brackets

Formula to determine correct stay:

X=6xWxH/1000

X= closing force in lbs
W=weight of lid in KG (2.2 lb per kg)
H=height of lid in mm (25.4 mm per inch)

Example
A lid that weighs 11 pounds (5kg)
And is 10" high (254 mm):

X=6x5x254/1000 = 7.62 kg

Lid stays available in the following:

6 kg/13 lbs rated stay #162395
8 kg/17 lbs rated stay #162396
10 kg/22 lbs rated stay #162397
12kg/26 lbs rated stay #162398
15 kg/33 lbs rated stay #162399
