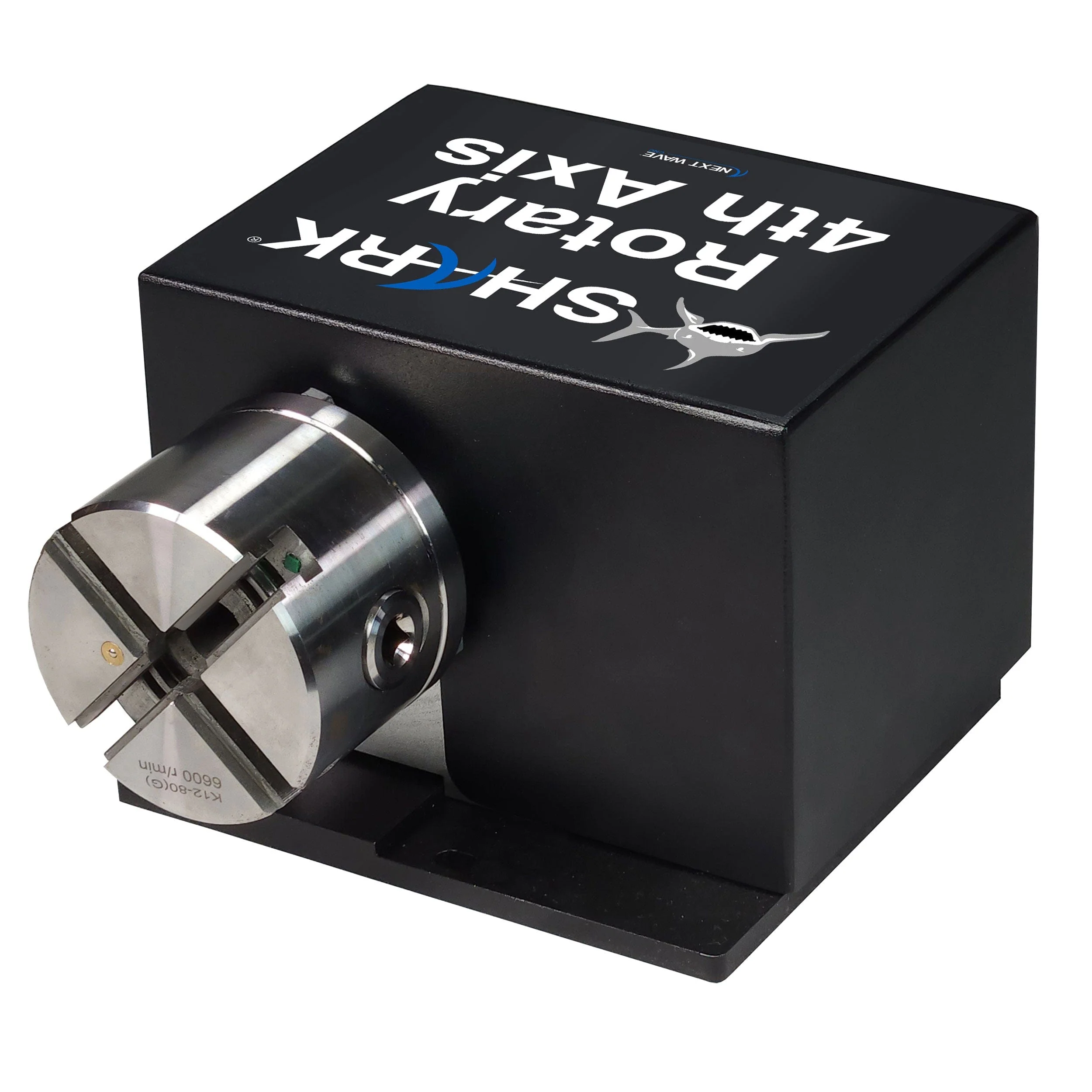

Rotary 4TH Axis System
With virtually plug-and-play design, the CNC Shark Rotary 4th axis includes predrilled base plates that easily bolts to your existing shark bed.
The kit includes a precision 4 jaw chuck and fully adjustable tail stock with live center and an expansion driver card for your CNC Shark controller, simple installation is required.
Note: Design operations require VCarve 9.5 or above (sold separately).
Specifications:

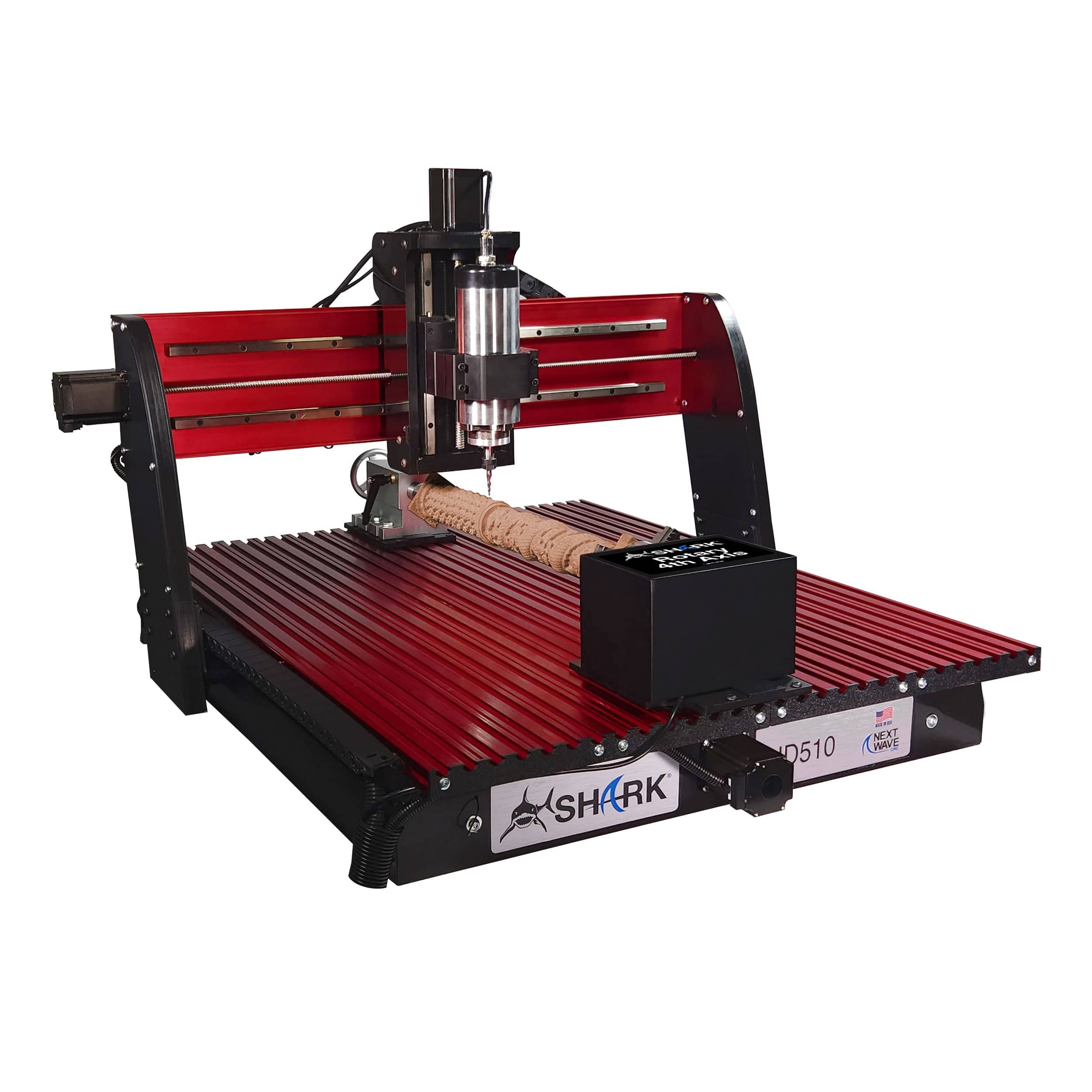

High Precision, motorized 4th axis controller that can be mounted on the tabletop on any HD CNC Shark System.
- Software required for the 4th axis controller port to be active to facilitate the CNC Shark stepper motor drive kit.
- 4th axis driver card compatible with HD4, HD5, HD5xx and HD6xx series Next Wave CNC machines

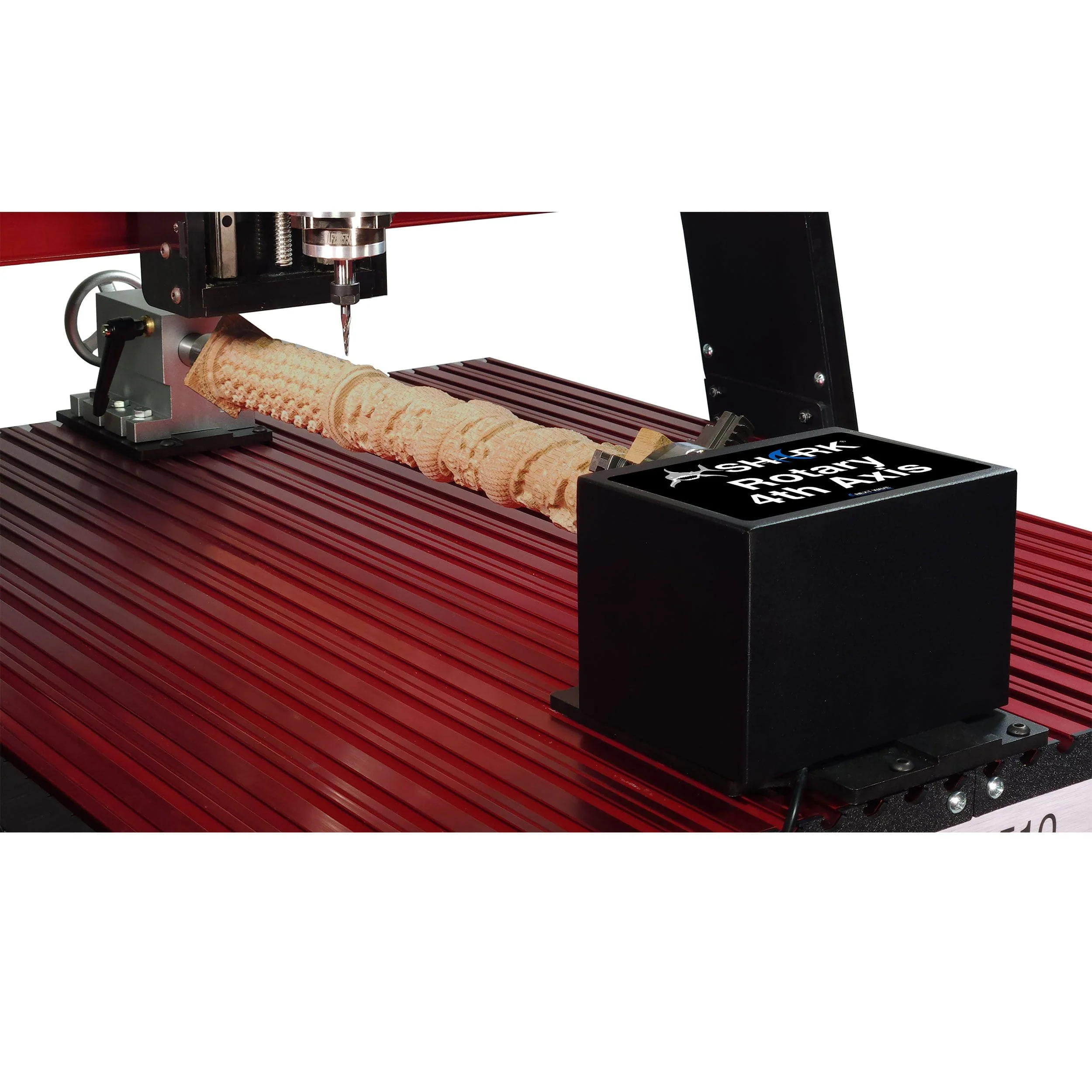

- Maximum workpiece diameter is 3.25" at the standard gantry setting increasing up to 5.6" with the gantry at highest setting.

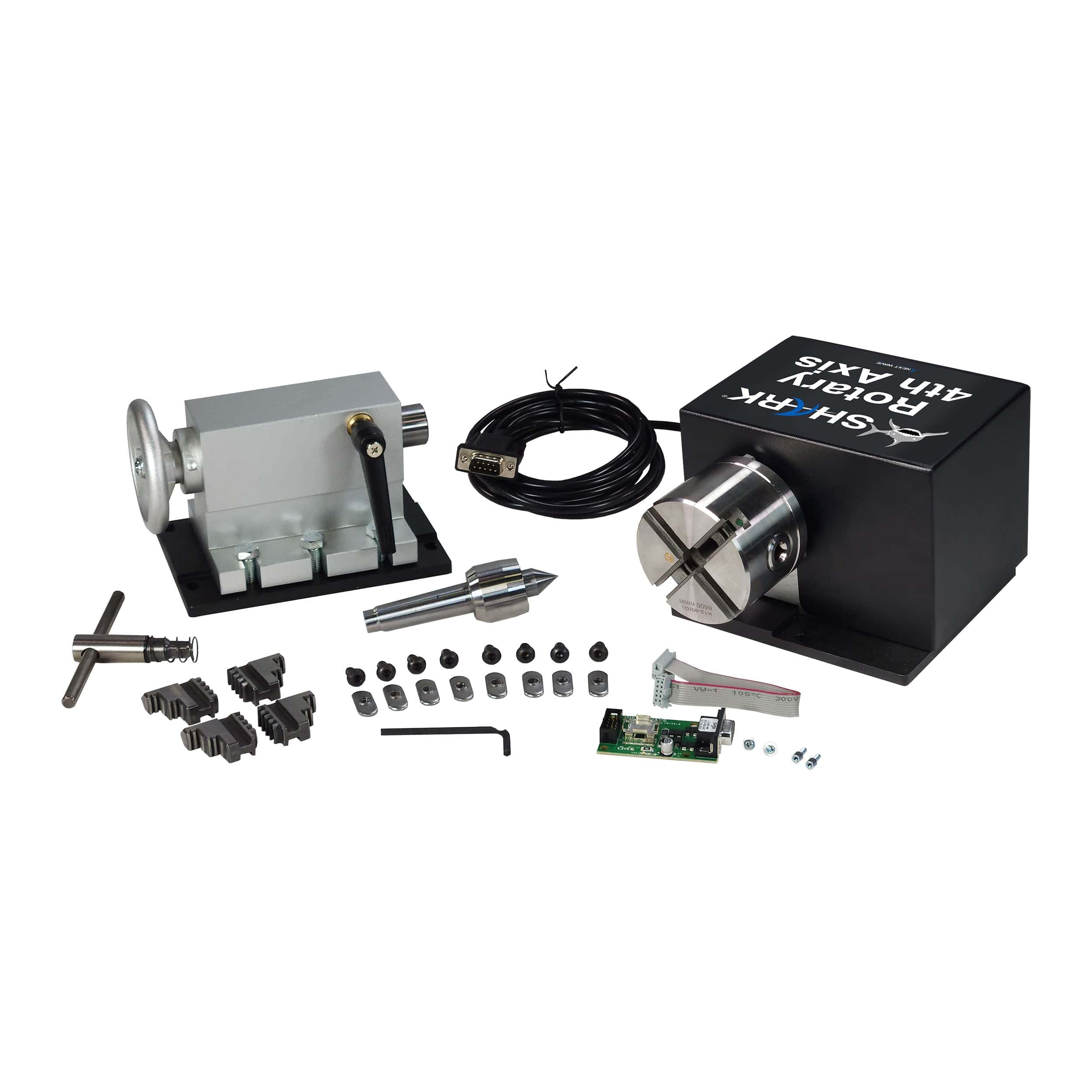

What's Included:
- Precision 4 Jaw chuck
- Tailstock with live center
- Equipped with data port
- U.S. based technical support.
- 1 Year Warranty
Shipping / Billing Information
This product ships direct from the manufacturer:
- Your order will ship in approximately 5 business days.
- This product is considered special order. Your account will be charged when you place your order.
- Express or overnight shipping is not available for this product.
- Ships by Ground or Freight to the 48 contiguous states. Cannot ship to Alaska, Hawaii, PO Boxes, APOs, US Territories, Canada or other foreign countries.
