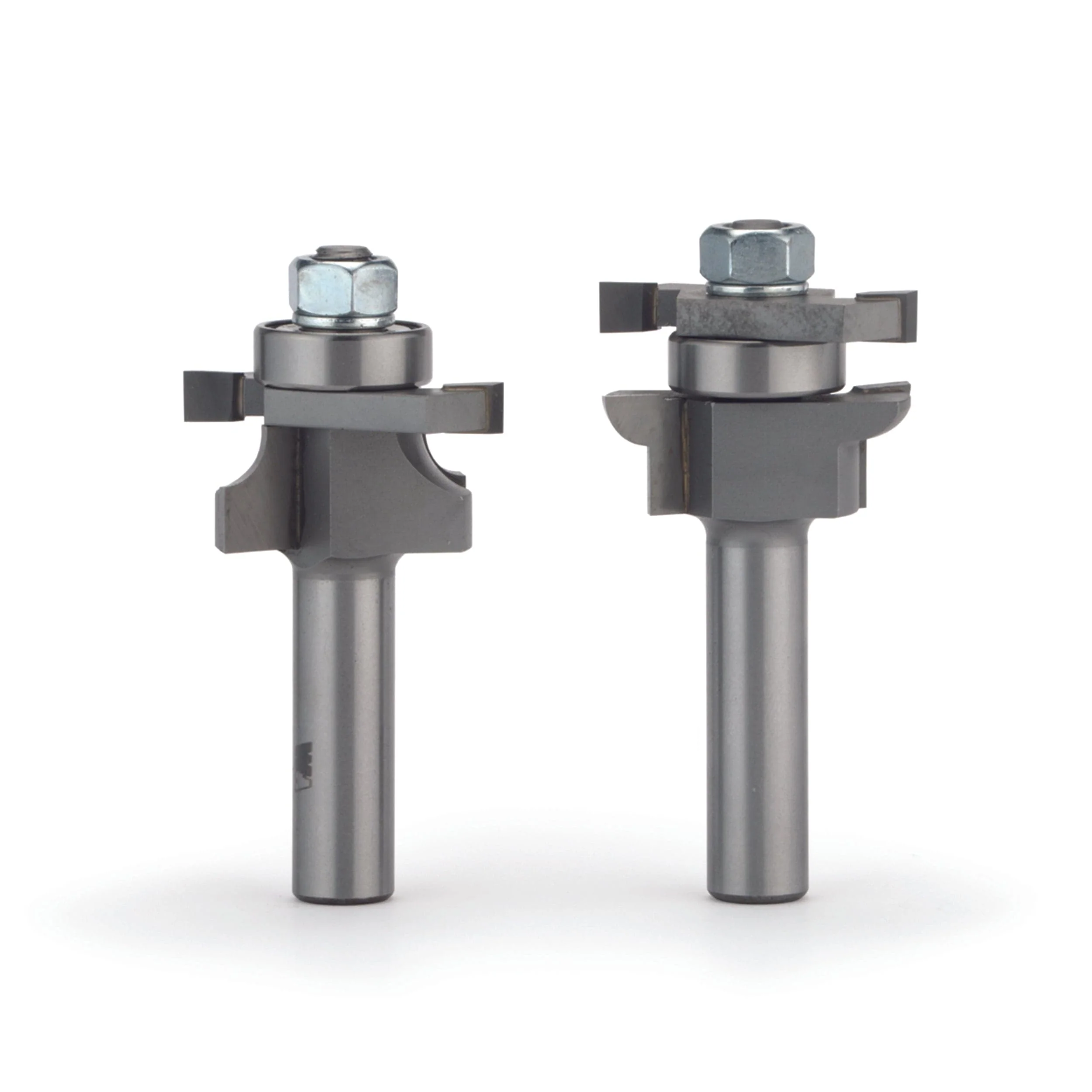

Round Stile and Rail Door Router Bit Set - 1/2" SH - 1-5/8" OD x 1" CL - 2 Piece

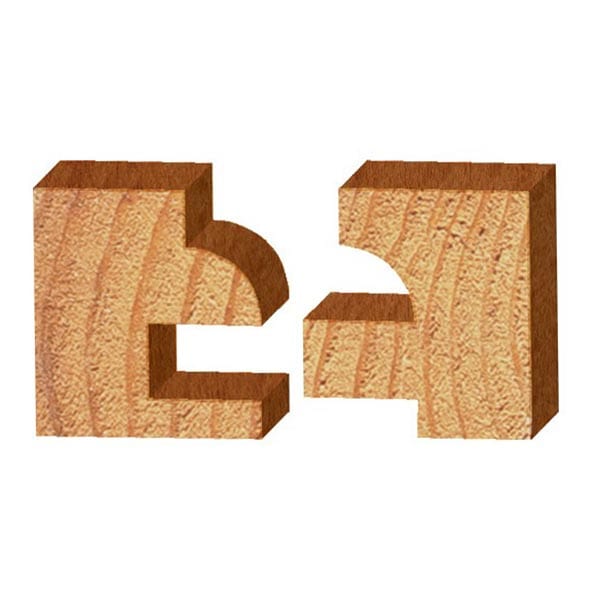

Create full-size stile and rail joints on your router table with ease. The interlocking design and raised panel groove are cut in one pass, while ball bearing guides control cutting depth for use on rounded, arched, or uniquely shaped doors. This two-piece set allows you to switch bits effortlessly between stiles and rails. Ideal for stock thicknesses of 5/8" to 7/8", these carbide-tipped router bits feature a durable 1/2" shank.

Construction Tip: You can make Stile & Rail cuts for glass doors using Whiteside's Door Construction Sets. No extra components are required. All that's needed is to stagger the cutting edges and "stack" both groovers on the Stile bit. Use both bearings (no groover) on the Rail bit. Make your cuts just like in normal door construction. Cut the inside edges of all four pieces with the Stile bit. Trim the ends of the Rails with the Rail bit. Assemble door and insert glass pane. Use clips or corner trim mold on the back side to hold the pane in place.D = Diameter; CL = Cutting Length; RW= Reveal Width; SH = Shank Diameter; OL = Overall Length.
