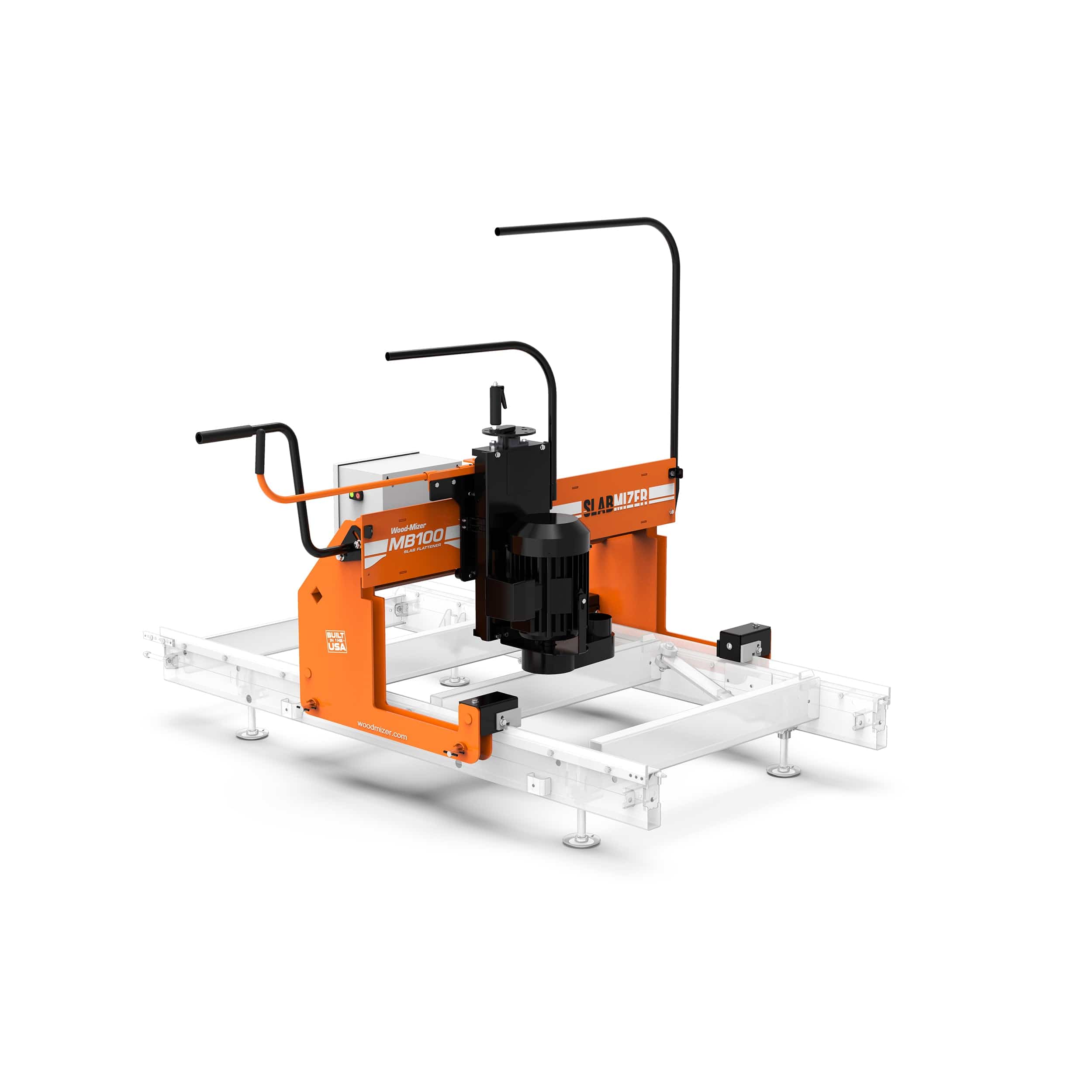

MB100 SlabMizer 36" - 230V 1 Phase
Efficiently surface and flatten high-quality wood slabs up to 36” wide with the MB100 SlabMizer Slab Flattening Mill! Compared to a traditional router or planer, the MB100 SlabMizer flattens material up to 36” wide and 8” thick in less time using a 3HP electric 5" diameter cutting head equipped with five 4-sided carbide knives. For wider material, Wood-Mizer offers the MB200 SlabMizer Slab Flattening Mill capable of processing material up to 56” or 72” wide. Built in the USA, the MB100 SlabMizer requires at least one LT15WIDE bed section (LT15BSW) to operate or can be added to the popular Wood-Mizer LT15WIDE portable sawmill bed to optimize processing space. With one LT15WIDE bed section, slab flattening length is 4' 7". For longer capacity, unlimited 6’ 8” modular bed sections can be added to extend the material length. The MB100 SlabMizer reduces the time needed to flatten wood slabs for woodworking projects. With wide wood slabs being popular items for counter tops, tables, benches, and more, the MB100 SlabMizer is an efficient way to increase the value and possibilities of your rough sawn slabs!
Features:
- Flatten Material Up To 36" Wide
- 5" Cutting head with Carbide Inserts
- Quick-Set Adjustment Bar with Presets
- 2 Metal Adjustable Clamps
- Compatible with Wood-Mizer LT15 Wide
Specifications:
- Min. Material Width: 0" or 3" if not clamped between larger material
- Max. Material Width: 36"
- Min. Material Thickness: 1/2"
- Max. Material Thickness: 8"
- Min. Material Length: 22"
- Max. Material Length: 9' 2" with two LT15BSW bed section/longer with optional 6' 8" bed sections
- Bed Extensions: Optional 6' 8" modular extensions
- Min. Depth of Cut: 1/64"
- Max. Depth of Cut: 1/8"
- Cutter Head: 5" with Five 4-Sided Carbide Knives (15mm x 15mm x 2.5mm - R150)
- Cutter Head Motor: 3HP Electric
- Cutter Head Speed: 5,500 RPM
- Machine Length: 31" for MB100, longer with additional bed sections
- Machine Width: 68" including push handle
- Max. Machine Height: 47"
- Dust Collection Port: 3-1/2" Diameter
- Power: 3HP 230V 1-Phase, 30A
- Country of Manufacture: USA
What's Included:
- MB100 SlabMizer
- 2 - LT15 Wide Bed Sections
- 2 Adjustable Clamps
- 4 Bed Spacers
- 5" Cutting Head with Carbide Inserts
Shipping / Billing Information
This product ships direct from the manufacturer:
- Your order will ship in approximately 5 business days.
- This product is considered special order. Your account will be charged when you place your order.
- Express or overnight shipping is not available for this product.
- Ships by Ground to the 48 contiguous states. Cannot ship to Alaska, Hawaii, PO Boxes, APOs, US Territories, Canada or other foreign countries.
Return Information
See additional document on Product Page
Warranty Information
Limited Warranty - see additional document on product page
$12,385.00
