MB200 SlabMizer 54" - 230V 1-Phase with Auto Feed

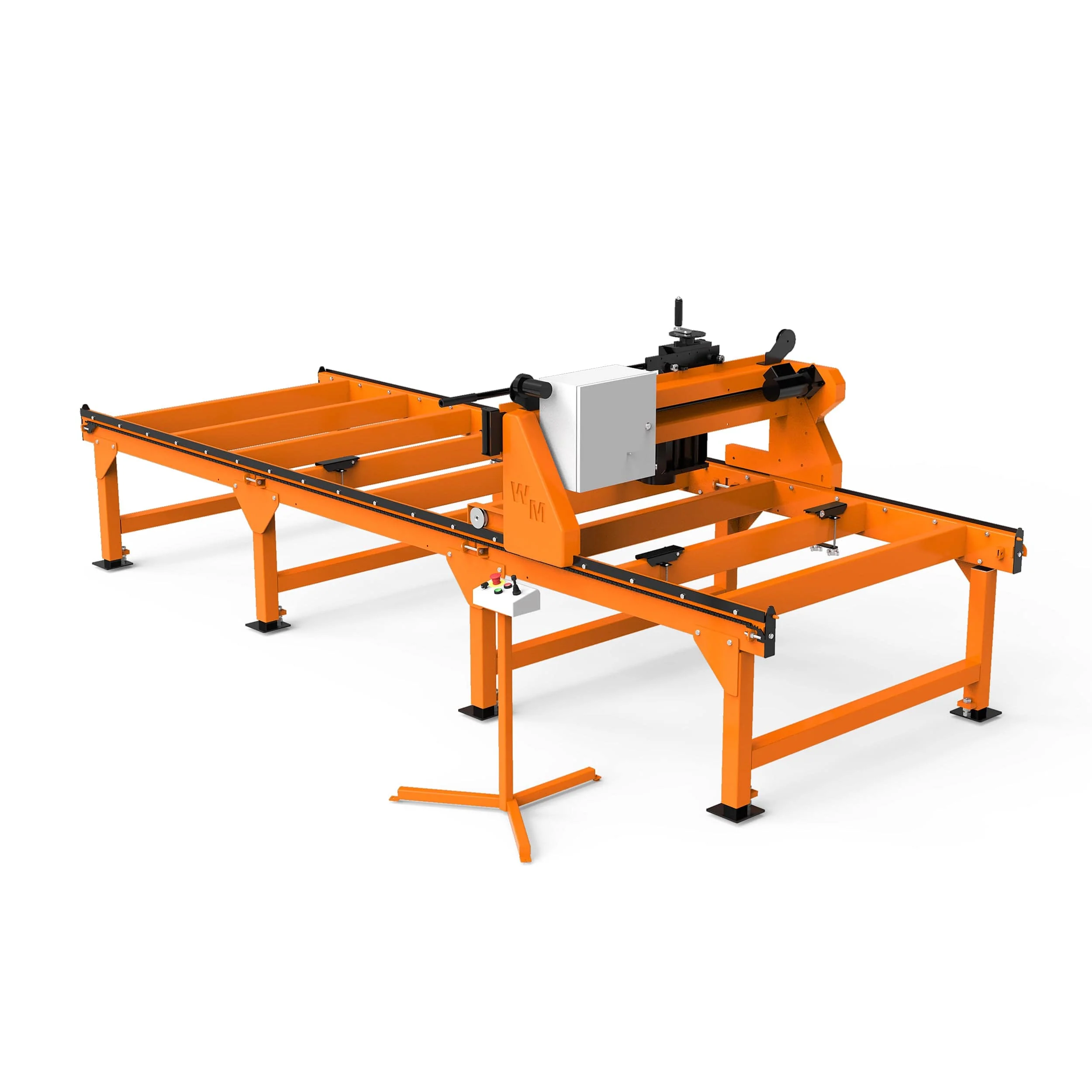

The SlabMizer MB200 Slab Flattener efficiently surfaces and flattens wood slabs, boards, burls, cookies, and other wide material with minimal labor. Compared to a traditional router or planer, the SlabMizer flattens wider and thicker material up to 56” wide and 8” thick in less time using powered cutter head directional controls with variable feed speed. For larger capacity, 5’ table extensions can be added to extend the material length. Also, flatten wide slabs hands free with the Auto Feed that automatically flattens material without an operator. The SlabMizer Auto Feed includes three magnetic stops, two electric eye auto-feed sensors, a light indicator, and all required wiring for simple installation and operation.
Features:
- Flatten Material Up To 56" Wide
- Power Feed Controls
- Modular Table
- 5" Cutting Head with Carbide Inserts
- Adjustable Clamps
- 7" Orbital Sanding Head Attachment
Specifications:
- Min. Material Width: 0" or 3" if not clamped between larger material
- Max. Material Width: 56"
- Min. Material Thickness: 1/2"
- Max. Material Thickness: 8"
- Min. Material Length: 22"
- Max. Material Length: 13' or longer with Optional 5' Extensions
- Table Extensions: Optional 5' Modular Extensions
- Min. Depth of Cut: 1/64"
- Max. Depth of Cut: 1/8"
- Cutter Head: 5" with Five 4-Sided Carbide Knives (15mm x 15mm x 2.5mm - R150)
- Cutter Head Motor: 3HP, 3-Phase, Electric
- Sanding Head: 7" Orbital with Hook/Loop Paper
- Cutter Head Auto Feed: Optional on X and Y Axis
- Cutter Head Speed: 5,500 RPM
- Feed Motor: Motor, 1/6HP 90RPM 230V 3HP 19:1 Gear
- Machine Length: 182"
- Machine Width: 65"
- Table Height: 30" - 33" Adjustable with 8 Leveling Legs
- Max. Machine Height: 71"
- Dust Collection Port: 3-1/2" Diameter
- Power: 3HP 230V 1-Phase, 30A
- Warranty: 2-Year Limited
- Country of Manufacture: USA
What's Included:
- Power Feed Controls
- 5" Cutting Head with Carbide Inserts
- 4 Adjustable Clamps
- 7" Orbital Sanding Head
Shipping / Billing Information
This product ships direct from the manufacturer:
- Your order will ship in approximately 5 business days.
- This product is considered special order. Your account will be charged when you place your order.
- Express or overnight shipping is not available for this product.
- Ships by Ground to the 48 contiguous states. Cannot ship to Alaska, Hawaii, PO Boxes, APOs, US Territories, Canada or other foreign countries.
Return Information
See additional document on Product Page
Warranty Information
Limited Warranty - see additional document on product page
