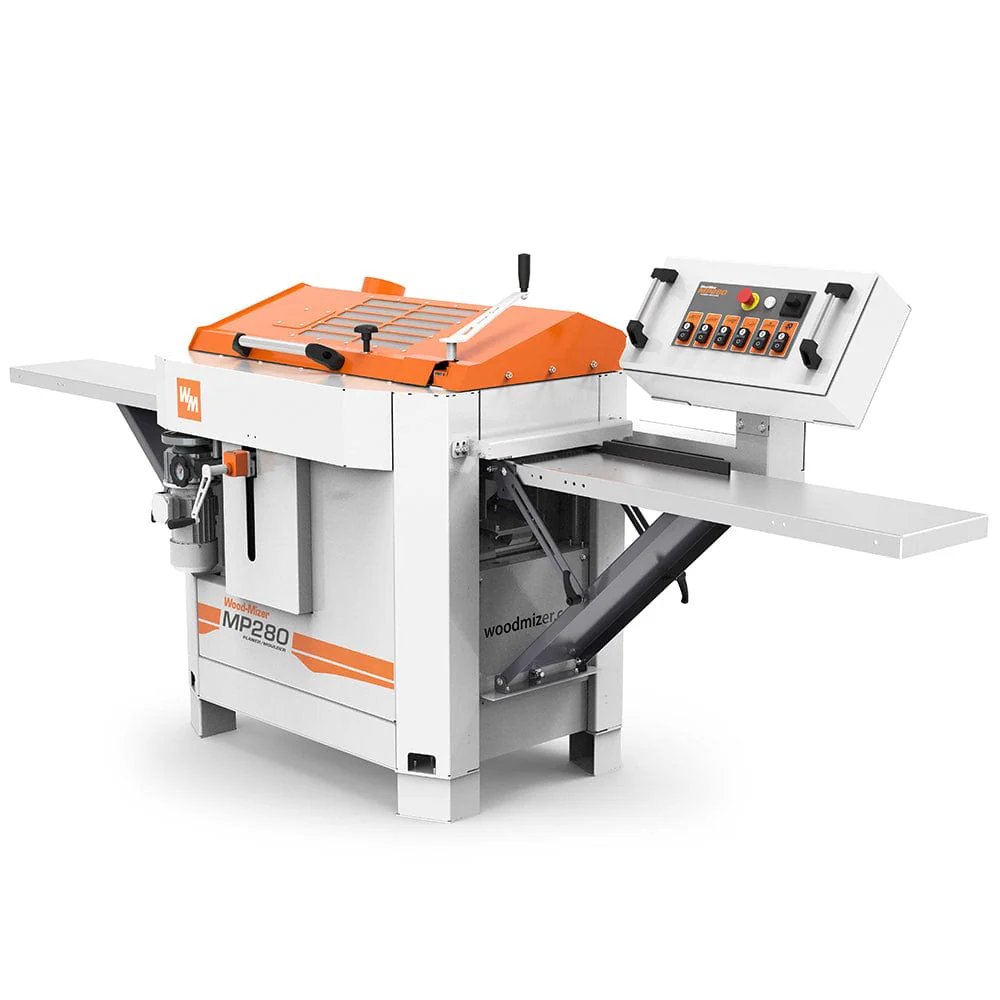

MP280 4 Sided Planer - Moulder 230V 3ph

MP280 4 Sided Planer - Moulder 230V 3ph

Plane and mould material on one, two, three, or four sides at once with the MP280 4-Sided Planer Moulder! The four sided MP280 planer/moulder is a versatile and compact machine for professional woodworkers that planes and moulds on all four sides at one time. This all-in-one machine is a perfect solution that is easy to use and produces premium wood products, such as flooring, siding, door and window frames, decorative elements, and more. Compared to the popular MP260 planer/moulder, the MP280 features multiple upgrades for durability and performance including reinforced metal construction, standard infeed and outfeed tables, longer in-feed fence, additional cutter head and dust collector controls, and more! The MP280 makes a perfect choice for entrepreneurs who need a universal, efficient, precise, and affordable woodworking machine.

Features:
  • Plane and mould 4 sides in one pass
  • Two horizontal cutter that can be fitted with planing knives or profile knives
  • Two 2" Vertical cutter that can be fitted with planing knives or profile knives
  • Cast iron table
  • Large capacity, Compact Footprint
  • Easy tooling changes
  • Variable Feed Control
  • Large Viewing Window
Specifications:
  • 4 Sided Planing/Moulding
  • Planing Width - 1 1/2" - 9 3/4"
  • Planing Height - 3/8" - 2"
  • Minimum Material Length - 19 5/8"
  • 2 Sided Planing/Moulding (Top & Bottom Cutter Heads)
  • Planing Width - 3/8" - 11 13/16"
  • Planing Height - 3/8" - 9"
  • Minimum Material Length - 19 5/8"
  • 1 Sided Planing/Moulding (Top Cutting Head Only) *To achieve 1-Sided maximum planing width some disassembly is required
  • Planing Width - 3/8" - 16"
  • Planing Height - 3/8" - 9"
  • Minimum Material Length - 19 5/8"
  • Horizontal Top Cutter
  • Diameter – 3 7/16”
  • Width – 16”
  • Motor Power – 4 HP
  • Rotation Speed – 7200 rpm
  • Max Cutting Depth – 3/16”
  • Max Profile Depth – ¾”
  • Horizontal Bottom Cutter
  • Diameter – 2 7/8”
  • Width – 11 13/16”
  • Motor Power – 4 HP
  • Rotation Speed – 7200 rpm
  • Max Cutting Depth – 1/8”
  • Max Profile Depth – 5/16”
  • Side Cutters
  • Spindle Diameter – 1 3/16”
  • Max Cutting Height – 2”
  • Max Diameter – 5 ½”
  • Motor Power – 4 HP
  • Rotation Speed – 7200 rpm
  • Max Planning Depth – 3/16”
  • Max Profile Depth – ¾”
  • Power Feed
  • Power – ¾ HP (6-36 ft/min)
  • Electrical
  • Total Power – 16 ¾ HP
  • Connection – 3PH, 230V, 60Hz 47.8 Amps
What's Included:
  • Planing Knives for top, bottom and side cutting heads
  • 4' Infeed table
  • 4' Outfeed table
  • Fencing and pressure rollers
  • Parts kit and manual

Shipping / Billing Information

This product ships direct from the manufacturer:

  • Your order will ship in approximately 5 business days.
  • This product is considered special order. Your account will be charged when you place your order.
  • Express or overnight shipping is not available for this product.
  • Ships by Ground to the 48 contiguous states. Cannot ship to Alaska, Hawaii, PO Boxes, APOs, US Territories, Canada or other foreign countries.

Return Information

See additional document on Product Page

Warranty Information

Limited Warranty - see additional document on product page
