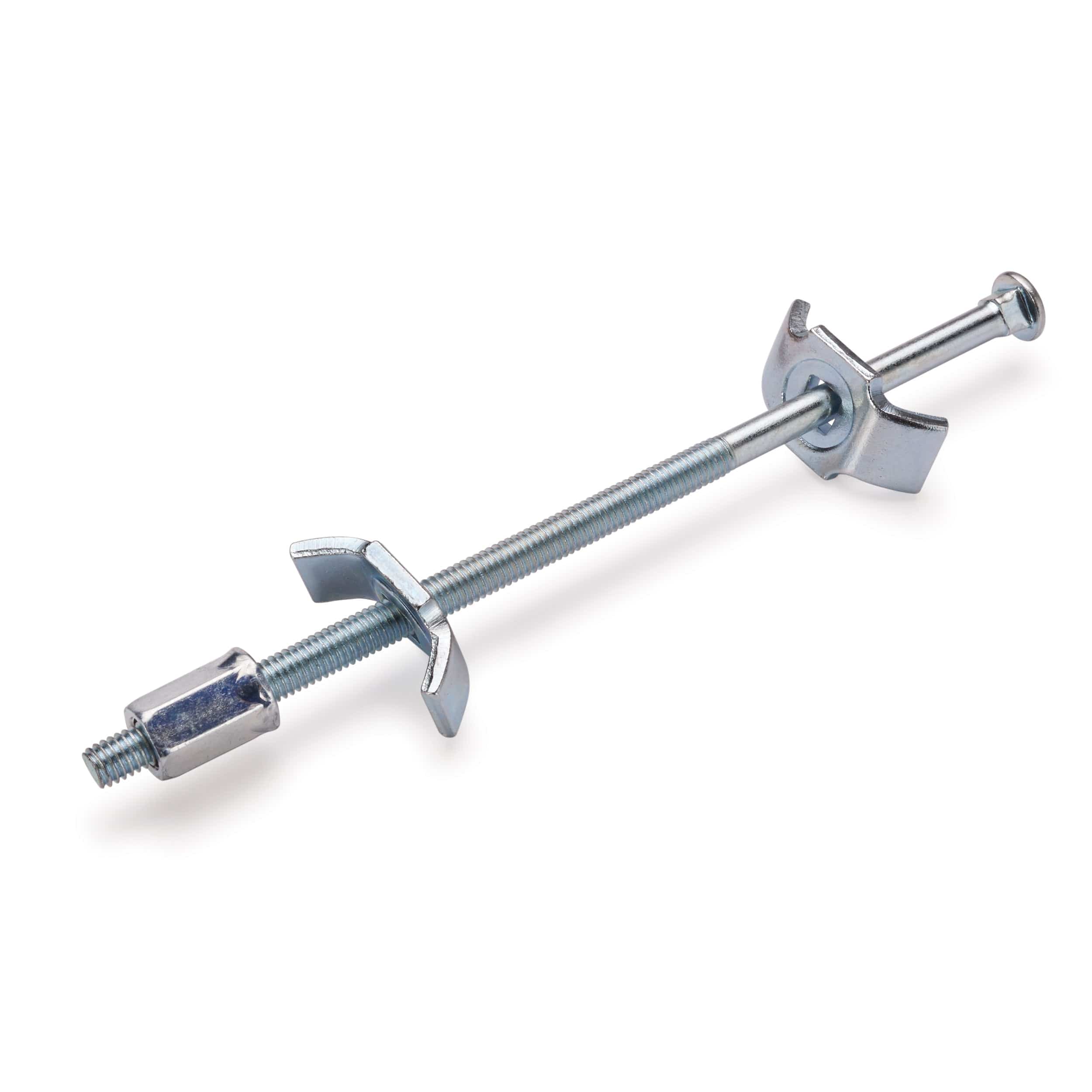

Large Joint Connector 5-3/4" to 6-1/2"

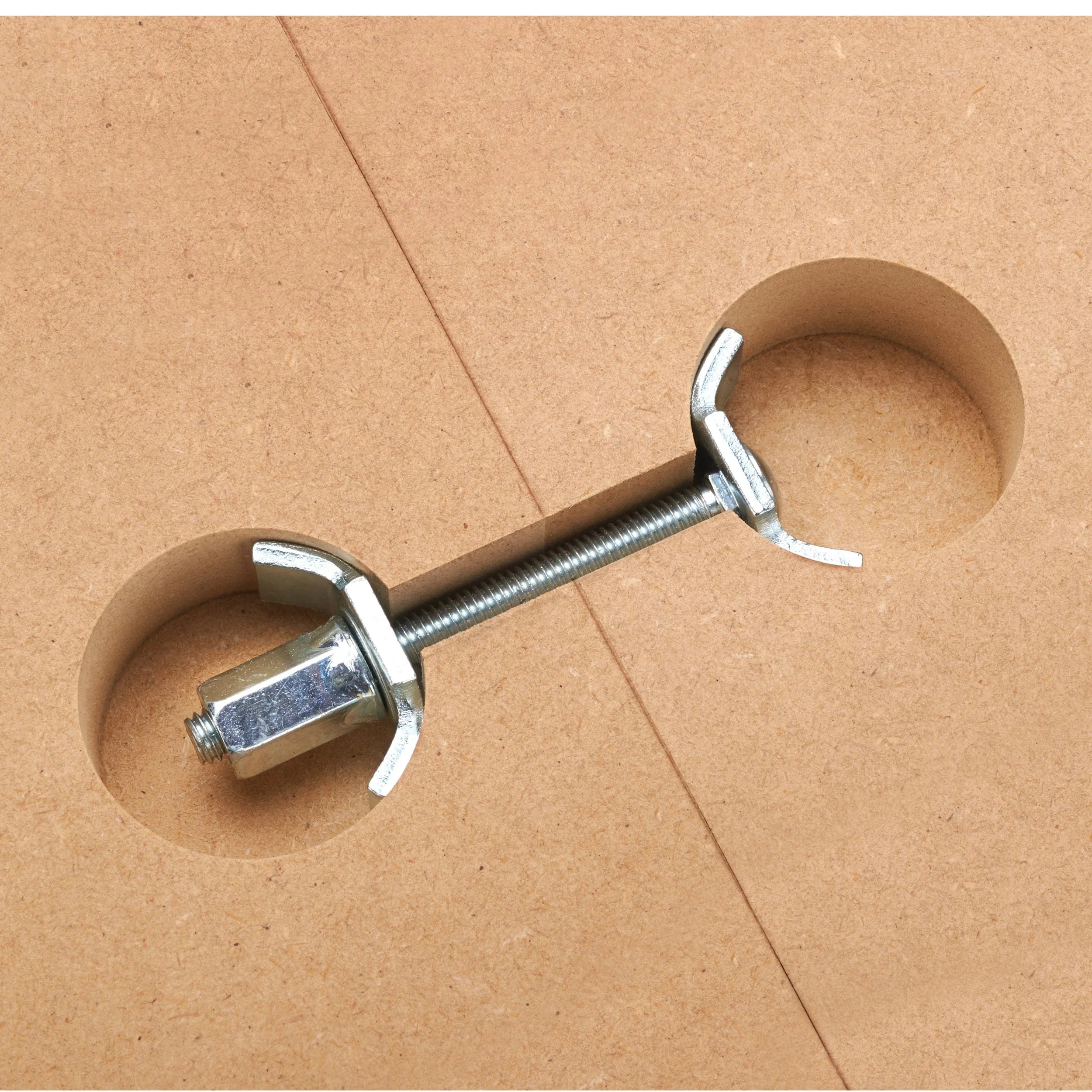

These concealed fittings allow work surfaces to be connected rapidly and securely. They are great for joining countertop sections together. The semi-circular fastening elements are pressed against the recess walls as tension is applied. Fits in a 35mm (1-3/8") flat bottomed hole drilled 3/4" deep. Use a router with a 1/4" straight bit to connect holes. Hole spacing on the large connector is 5-3/4" to 6-1/2".
Features:

• Easily installed and quickly assembled for material from 19 mm (3/4")

• By providing even pressure between the surface joint pieces, this fastener holds without glue

• The joint can be disassembled if necessary

• Length 6"

• Zinc plated steel, galvanized
