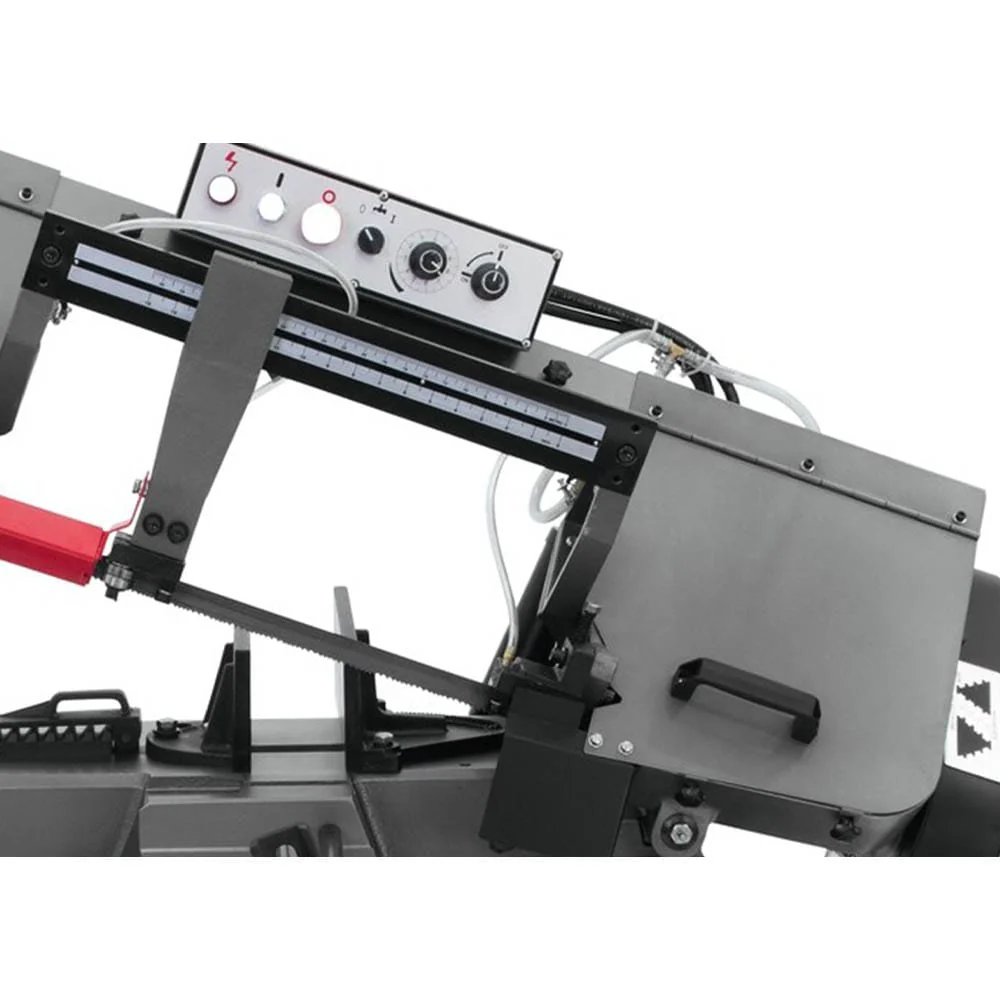

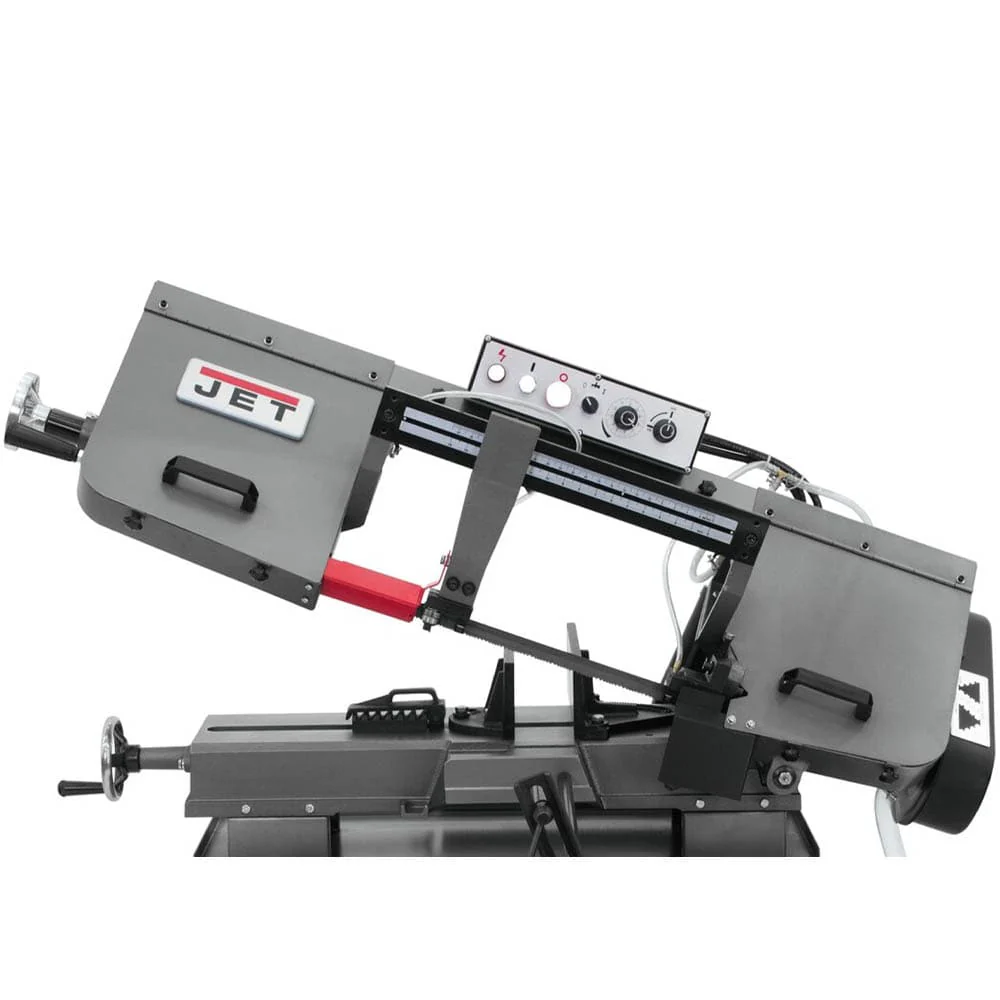

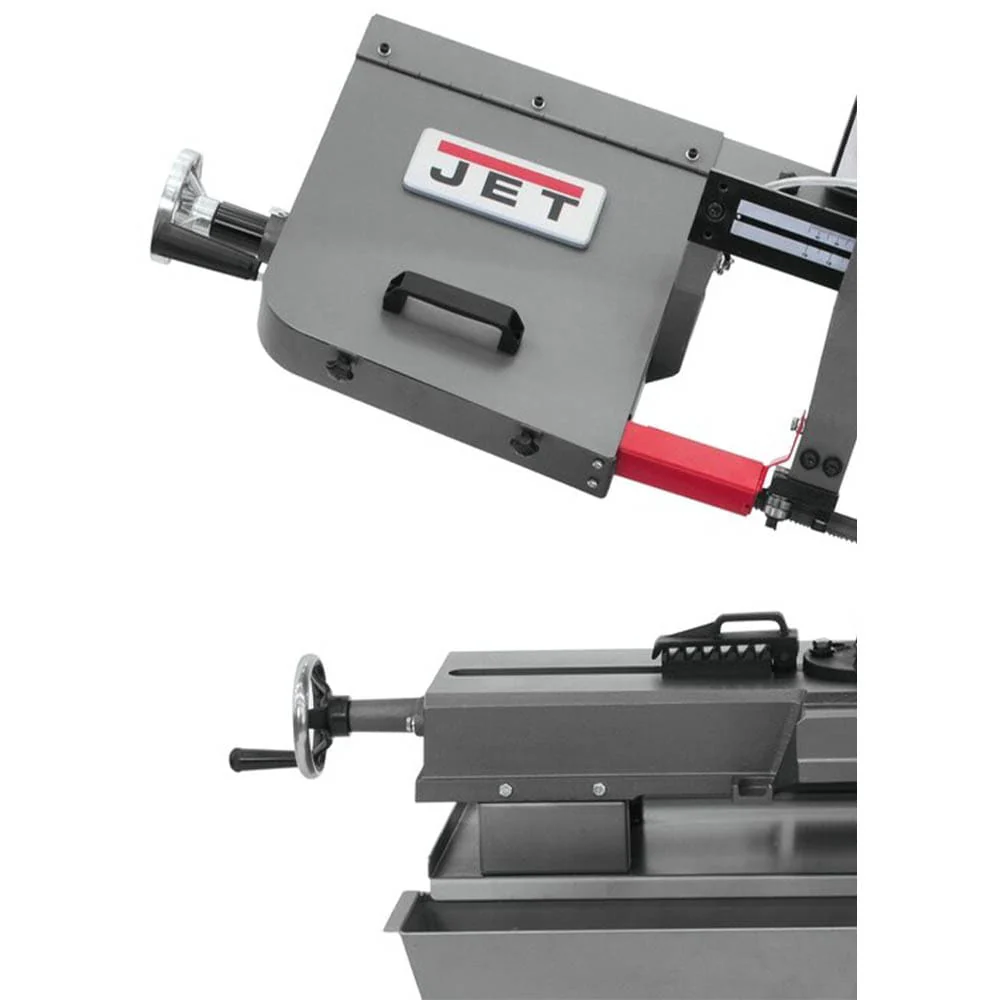

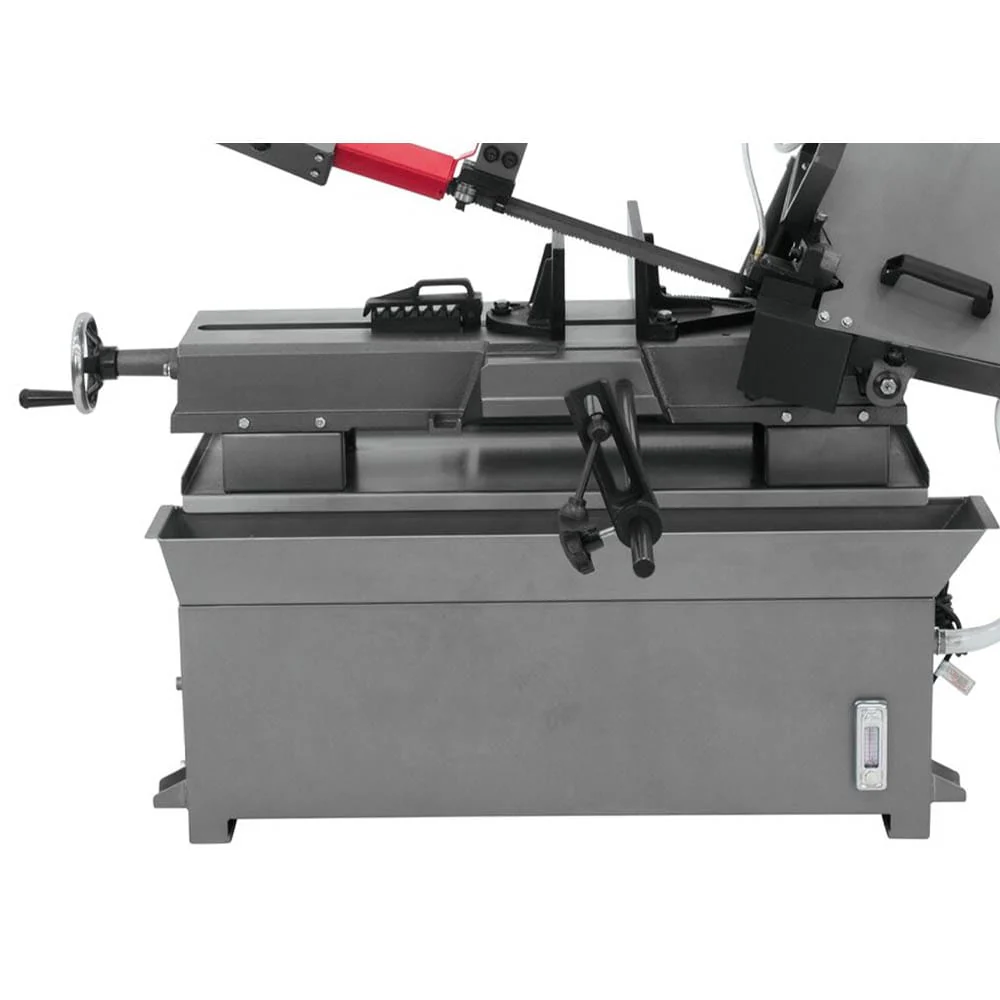

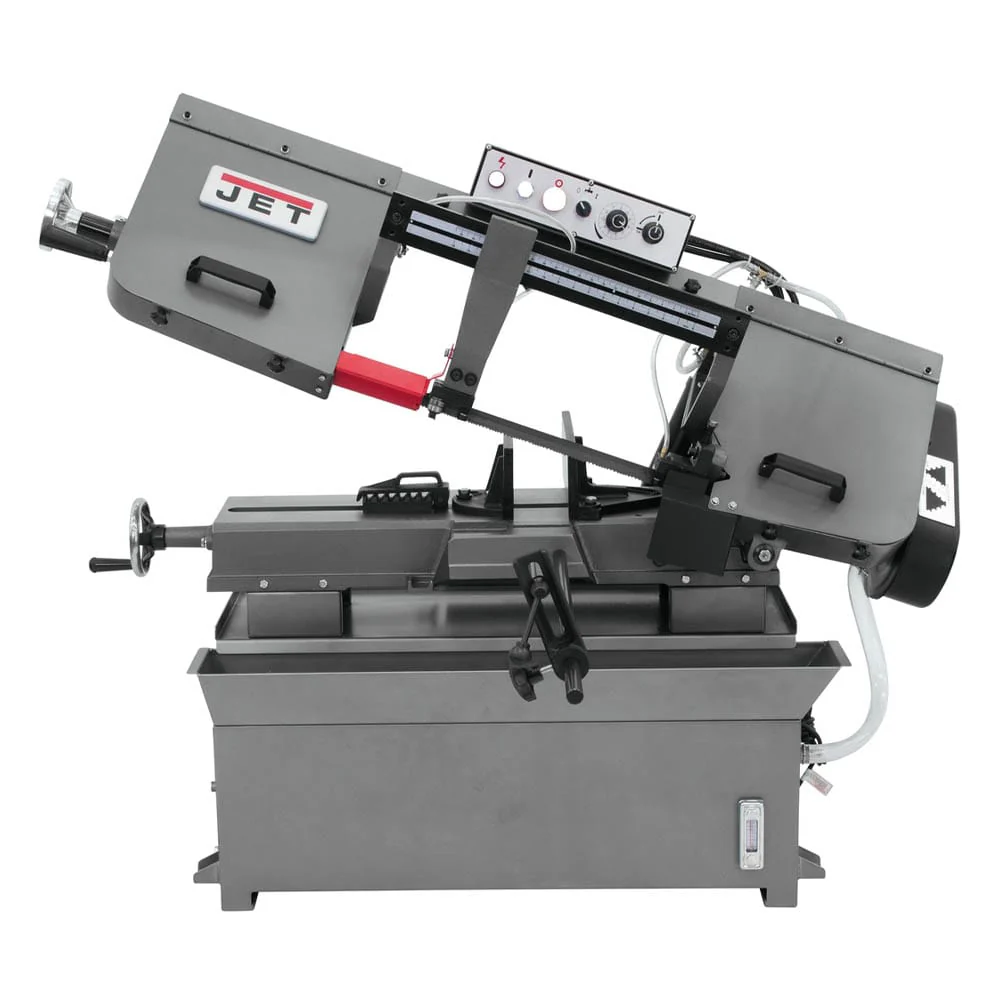

Product image 1
Product image 2
Product image 3
Product image 4
Product image 5
HomeStore

HBS-916 9" X 16" Horizontal Bandsaw - 1-1/2 HP - 115V - 1 PH

HBS-916 9" X 16" Horizontal Bandsaw - 1-1/2 HP - 115V - 1 PH

Packed with premium features—including a large handwheel, built-in gauge, precision blade guides, a quick-positioning vise, and a removable chip tray—this JET Horizontal Bandsaw stands out from the competition. Designed for superior efficiency, precision, and functionality, it delivers consistent, high-quality results cut after cut.

Bandsaw Specs: What They Mean & Why They Matter:
  • Horsepower (HP) – Determines cutting power, especially important for hardwoods and demanding resawing.
  • Resaw Height – The maximum board thickness the saw can slice vertically.
  • Maximum Cutting Width – The maximum width of material that fits between the blade and the frame.
  • Blade Width Range – Indicates what blades the saw can accept, affecting both curve cutting ability and resaw performance.
  • Table Size – Affects how well the saw supports and stabilizes your workpiece.
  • Construction Material – Heavier material better absorbs vibration and adds stability.

Features:

  • Adjustable Material Stop
  • Blade guides feature parallel double-row ball bearing support
  • Built-in, self-propelled blade brush extends blade life
  • Carbide blade guides feature parallel double-row ball bearing support
  • Coolant is distributed through the blade guides
  • Fully adjustable hydraulic downfeed with separate on/off control valve
  • Large hand wheel and built-in gauge provides easy blade tensioning
  • Proprietary oversized chip tray design minimizes over spray and reduces clean up
  • Quick-positioning vise with fully adjustable jaws
  • Quick-positioning vise with fully adjustable jaws, swivels to 45°

Specifications:

  • Stock Number: JT9-414468
  • Blade Speed: 82, 132, 170, 235 SFPM
  • Blade Wheel Diameter: 13”
  • Cutting Capacity: 9” x 16”
  • Drive: Belt Drive
  • Model Number: HBS-916
  • Motor: 1-1/2 HP - 115/230V – 1 Ph
  • Overall Dimensions: 65” x 28” x 42”
  • Prewired Voltage: 115V
  • Rectangle at 45 Degrees: 9” x 6-1/8”
  • Rectangle at 90 Degrees: 8-1/2” x 14 and 2” x 16”
  • Round at 45 Degrees: 6-1/8”
  • Round at 90 Degrees: 9”
  • Vise Swivels: 45°
  • Warranty: 2 Year

What's Included:

  • 2 Year Warranty

Shipping / Billing Information

All shipments must be inspected and any damage reported within 3 days of receipt.
Address corrections and cancellations may not be possible once order is submitted. Requested changes may incur additional charges.
This product ships direct from the manufacturer:

  • Your order will ship in 7-10 business days.
  • This product is considered special order. Your account will be charged when you place your order.
  • Express or overnight shipping is not available for this product.
  • Ships by Ground to the 48 contiguous states. Cannot ship to Alaska, Hawaii, PO Boxes, APOs, US Territories, Canada or other foreign countries.

Return Information

All returns must be pre-approved. Any non-warranty returns must be unused and in original packaging. A 25% restock fee will apply. Customer pays return freight. Please call our Customer Service Dept. at 1-800-535-4482 with any return questions.
$5,972.00
HBS-916 9" X 16" Horizontal Bandsaw - 1-1/2 HP - 115V - 1 PH—
$5,972.00
